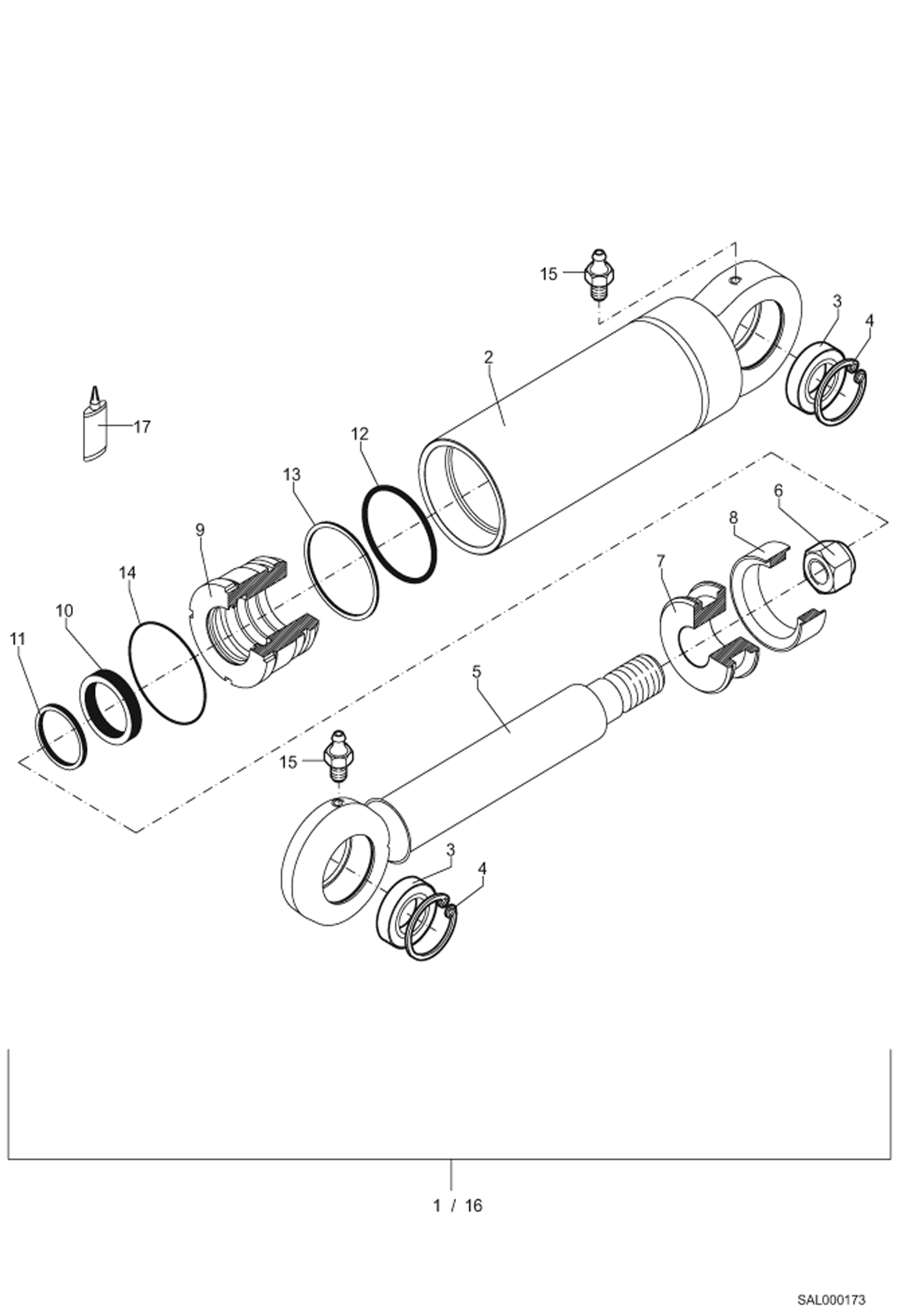

Запчасти Bobcat AL275 LIFTING FRAME CYLINDER HYDRAULIC INSTALLATION

1

6500785500

HYDR. CYLINDER CPL. Includes Ref. 2 to 14

2

6500785503

PIPE

3

1950010413

LINKAGE BEARING

4

1456622363

CIRCLIP

5

6500785111

PISTON ROD Secure With LOCKTITE 242

6

1212251832

NUT

7

0500760015

PISTON

8

1634935661

PISTON SEAL

9

0500772017

BUSHING

10

1965956565

ROD SEAL

11

1974955050

SCRAPER RING

12

1971958509

O-RING

13

1966960908

BACK UP RING

14

1971958919

O-RING

15

1607003006

GREASE NIPPLE

16

1976999091

SEAL KIT Includes Ref. 6 + 8 + 10 to 14

17

GLUE NLA - Was MCS001036A - A
