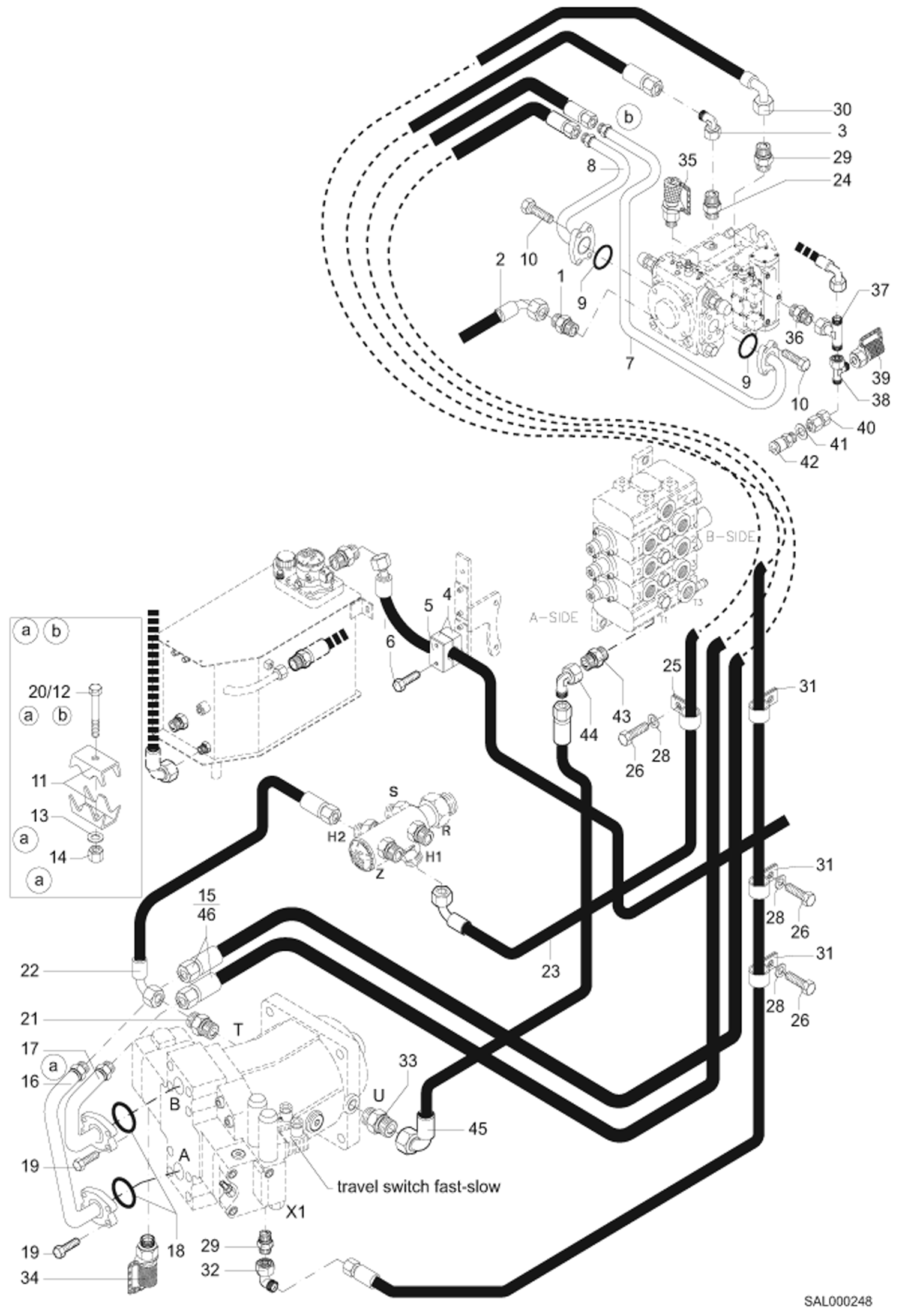

Запчасти Bobcat AL275 DRIVE HYDRAULIC INSTALLATION

1

1915060670

FITTING

2

4120101406

HOSE

3

1924060156

ELBOW FITTING

4

5660199632

CLIP

5

5660200150

COVER

6

1007707514

BOLT

7

5260310356

ELBOW

8

5260310358

ELBOW

9

1971956318

O-RING

10

1008707124

BOLT

11

0202627060

PIPE CLIP

12

1007707225

BOLT

13

1290707020

WASHER

14

1212251014

NUT

15

4470087493

HOSE

16

5260310199

INTERMEDIATE PIECE

17

5260310201

INTERMEDIATE PIECE

18

1971956318

O-RING

19

1045707324

BOLT

20

1007707125

BOLT

21

1915060672

FITTING

22

4120112156

HOSE

23

4120076406

HOSE

24

1915060667

FITTING

25

5000210420

HOSE CLIP

26

1008707018

BOLT

28

1343707057

WASHER

29

1915060754

FITTING

30

4506235351

HOSE

31

5000096800

HOSE CLAMP

32

1924060151

FITTING

33

1915060561

FITTING

34

5066253805

METER CONNECTION

35

5066253605

METER CONNECTION

36

1915000761

FITTING

37

1919060151

FITTING

38

1919060351

FITTING

39

5066234200

METER CONNECTION

40

1943000101

CONNECTION

41

1636815354

SEAL RING

42

7031402

SWITCH, PRESS Was 5472661573 - A

43

1915060262

FITTING

44

1924060153

FITTING

45

4110080374

HOSE

46

4470096493

HOSE
