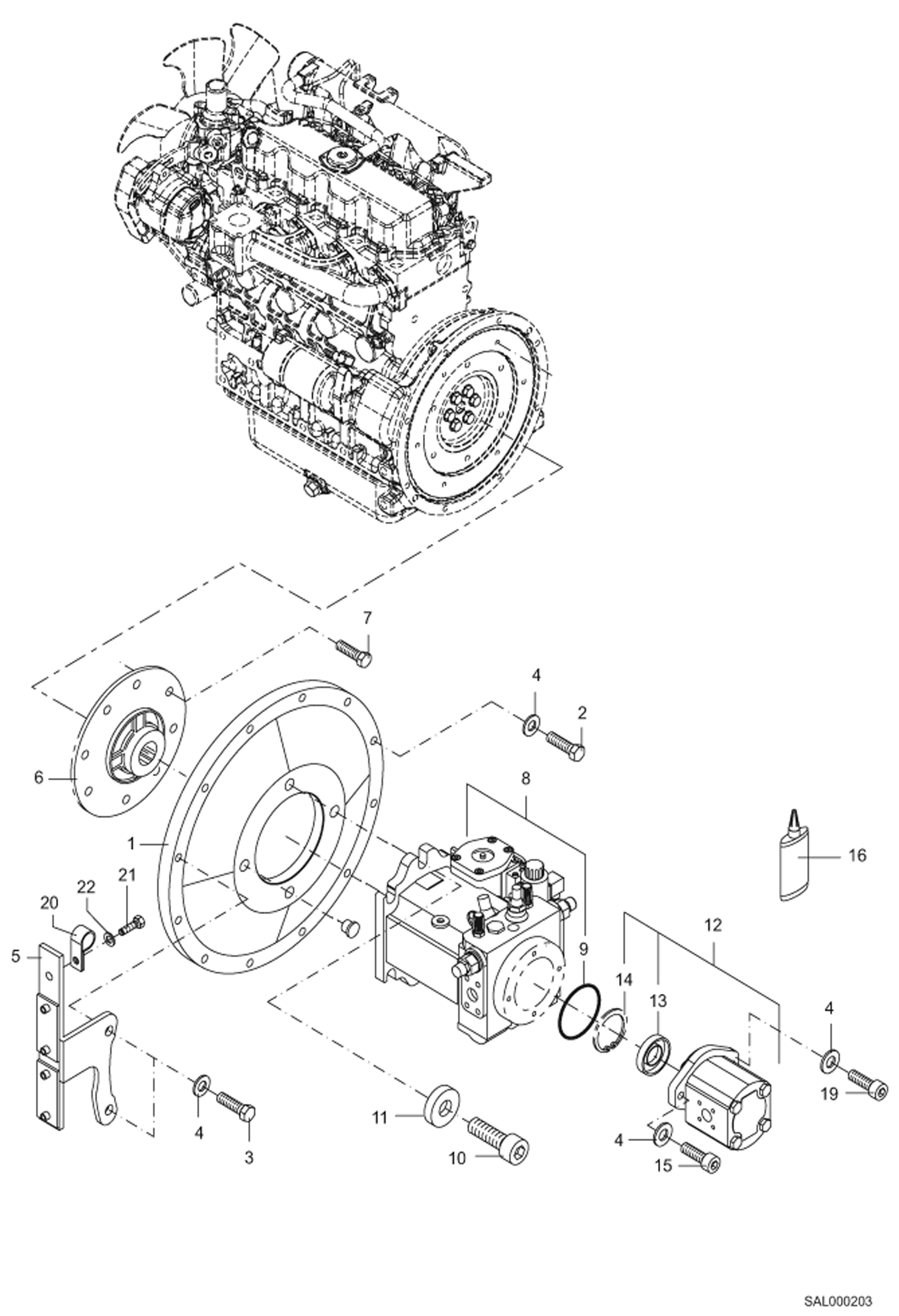

Запчасти Bobcat AL275 PUMPS MOUNTING HYDRAULIC INSTALLATION

1

5105662763

FLANGE

2

1008707485

BOLT

3

1008707386

BOLT

4

1290707020

WASHER

5

6451017005

BRACKET

6

5105660762

COUPLING

7

1008707682

BOLT

8

5354662415

VARIAB.DISPL.PUMP

9

1971956116

O-RING

10

1045707041

BOLT

11

0176017010

WASHER

12

5100620052

GEAR TYPE PUMP

13

5100659033

SHAFT SEAL

14

5100659034

CIRCLIP

15

1045707923

BOLT

16

MCS001035A

GLUE

19

1046707923

BOLT

20

5000210410

HOSE CLIP

21

1008707018

BOLT

22

1343707057

WASHER
