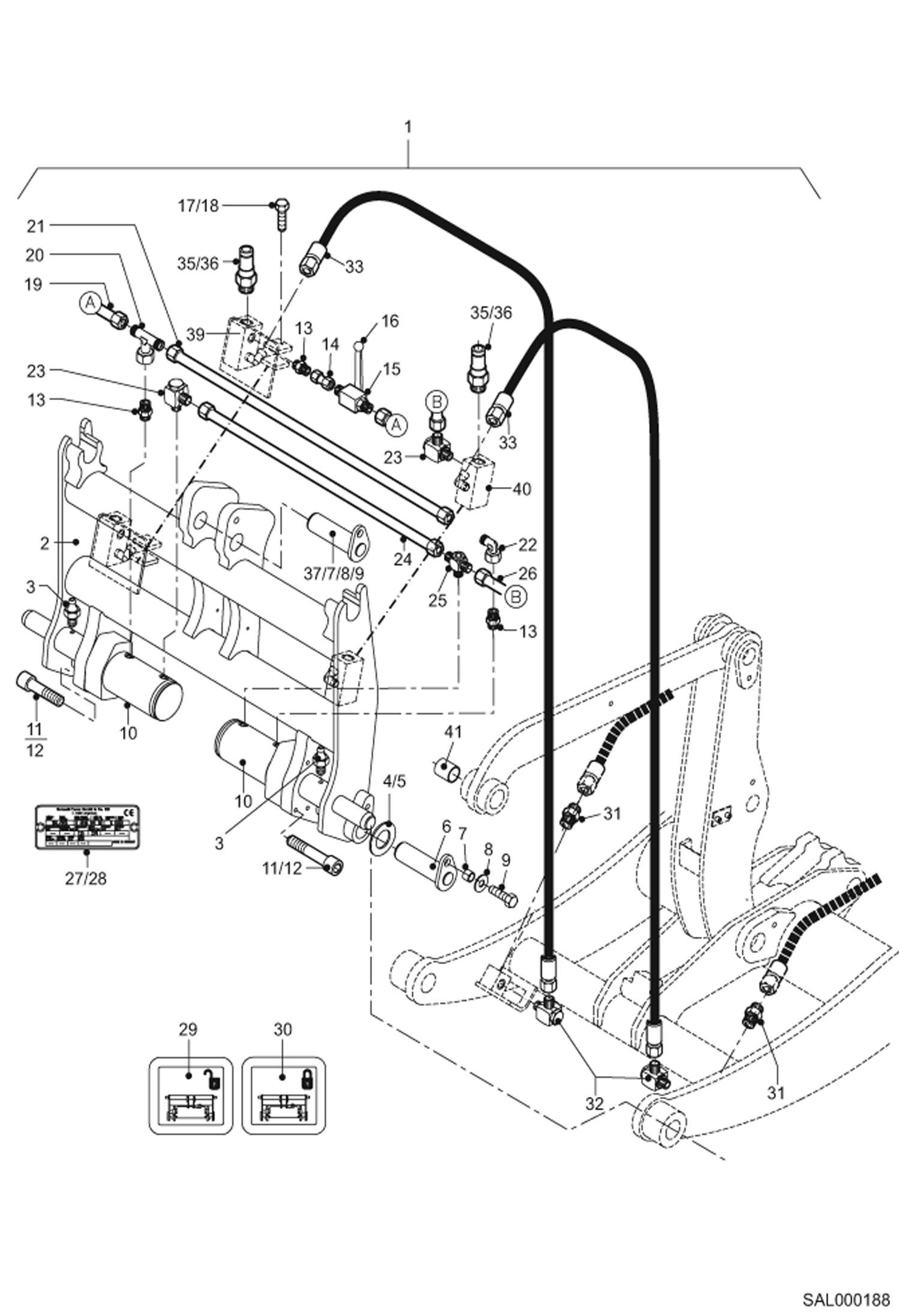

Запчасти Bobcat AL275 HYDRAULIC QUICK MOUNT HITCH HYDRAULIC INSTALLATION

1

6460604100

QUICK FIT DEVICE Includes Ref. 1 to 30 + 37

2

6460604103

QUICK MOUNT HIT.FRAME

3

1607003006

GREASE NIPPLE

4

1309412813

SHIM

5

1309412225

SHIM

6

0332002002

PIN

7

0333023033

SPACER BUSHING

8

1343707061

WASHER

9

1008707529

BOLT

10

6502115100

HYDRAULIC ZYLINDER See Illustration QUICK MOUNT HITCH CYLINDER/ SAL000175

11

1045707824

BOLT

12

1045707624

BOLT

13

1915060555

FITTING

14

0103723021

TUBING

15

5001609600

BALL TAP

16

5001207171

KEY

17

1008707213

BOLT

18

1210707009

NUT

19

0460604030

TUBING

20

1919060151

FITTING

21

0460604032

TUBING

22

1924060151

FITTING

23

1921060154

FITTING

24

0460604034

TUBING

25

1920000103

FITTING

26

0460604036

TUBING

27

- -

NAME PLATE

28

1940000739

RIVET

29

5358609064

MARKING PLATE

30

5358609065

MARKING PLATE

31

1915000759

FITTING

32

1926060157

FITTING

33

4460103359

HOSE

35

5000080002

DUST CAP

36

5000080001

COUPLING PLUG

37

6338002005

PIN

39

6460604050

DISTRIBUTION RIGHT Welded

40

6332806105

DISTRIBUTION LEFT Welded

41

0490607152

PROTECTION HOSE OPTION
