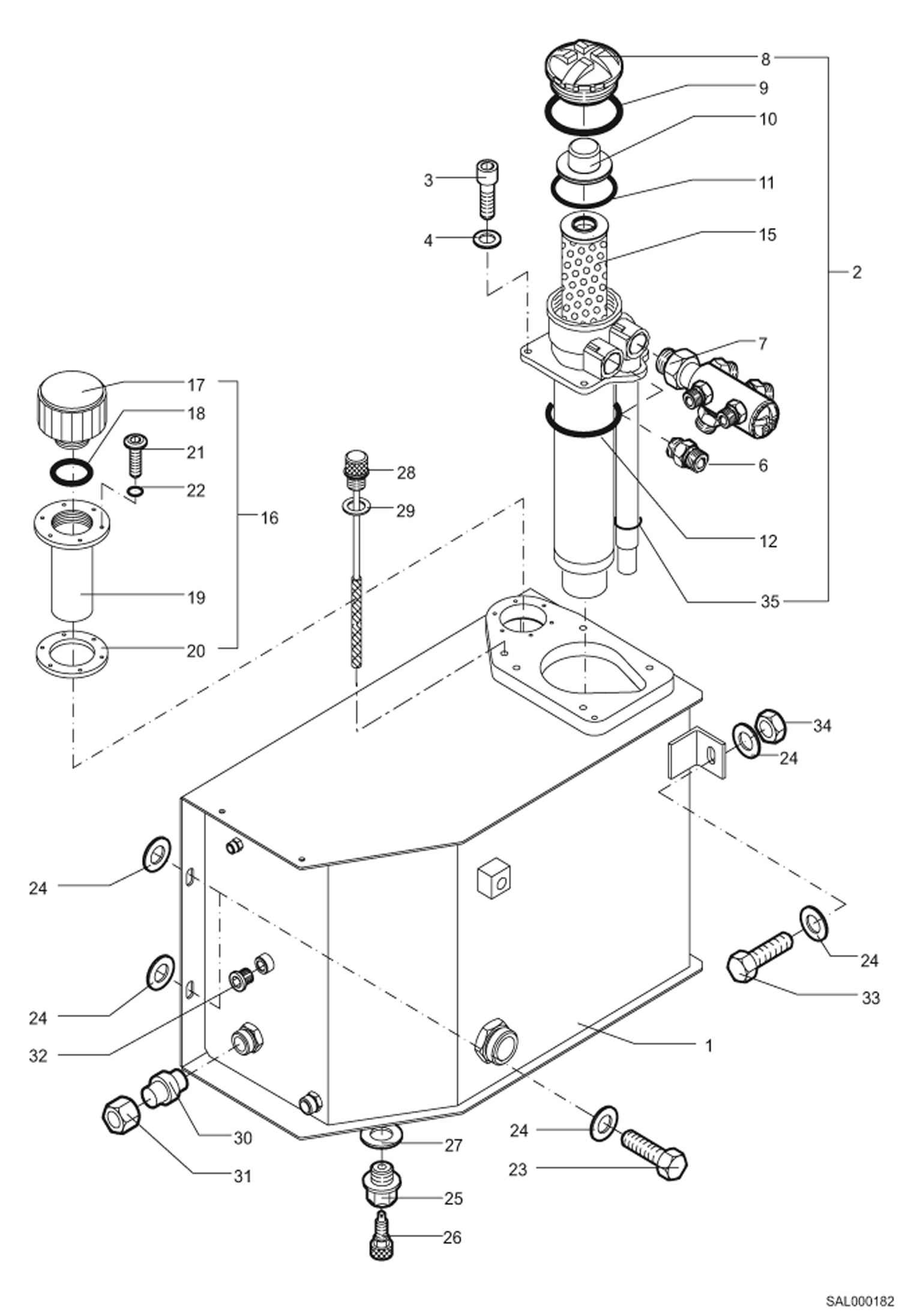

Запчасти Bobcat AL275 HYDRAULIC OIL TANK HYDRAULIC INSTALLATION

1

6451013001

HYRAULIC OIL TANK

2

5003660416

RETURN FILTER Includes Ref. 8 to 11 + 15 + 35

3

1045707923

BOLT

4

1290707020

WASHER

6

1915000781

FITTING

7

5003700044

THERMOSTAT

8

5003648875

COVER

9

5003648871

O-RING

10

5003650377

INLET PART

11

5690625387

O-RING

12

5003650374

O-RING

15

5003650368

FILTER CARTRIDGE Was 5003660417

16

5003650362

BLEEDING FILTER CPL. Includes Ref. 16 to 22

17

5003730010

FILTER

18

3600087875

O-RING

19

5003650363

INLET STRAINER

20

5003650371

SEAL

21

5003650402

BOLT

22

5003650372

O-RING

23

1008707923

BOLT

24

1343707059

WASHER

25

0157514025

PLUG

26

5430583070

BLEEDING VALVE

27

1636815359

SEAL RING

28

5003648865

OIL DIPSTICK

29

5003648873

SEAL RING

30

1928000948

PLUG

31

1911060159

UNION NUT

32

1912060103

PLUG

33

1008707424

BOLT

34

1212251013

NUT

35

5003650373

O-RING
