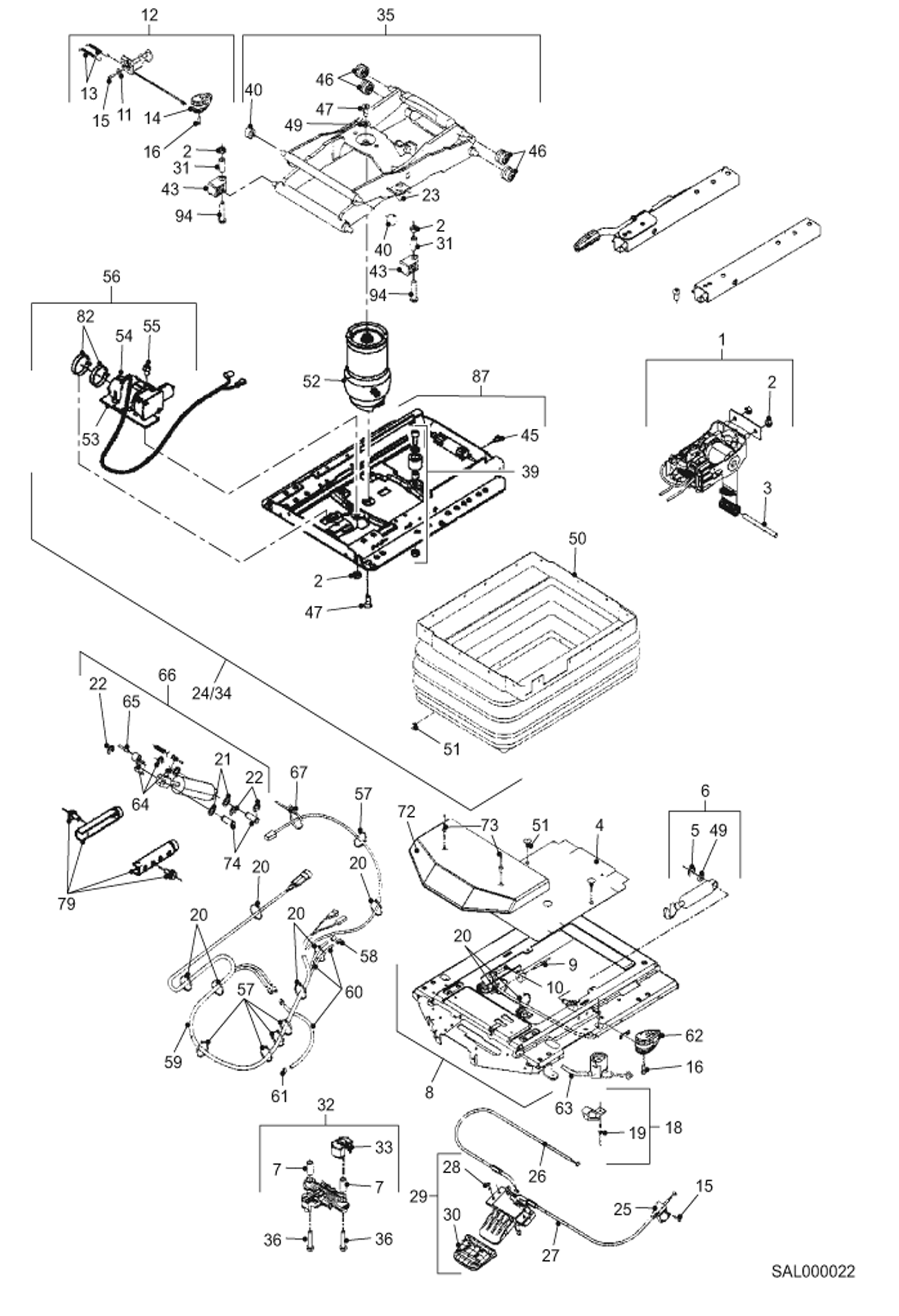

Запчасти Bobcat AL275 SEAT SUSPENSION - MSG 95 MAIN FRAME

1

5305670045

LEVEL CONTROL Includes Ref. 2 + 3 + 15 + 20 + 25 + 45 + 51 + 57

2

- -

NAME PLATE

3

- -

NAME PLATE

4

5305670046

COVER Includes Ref. 51

5

5305670228

WASHER

6

5305670269

SHOCK ABSORBER CPL. Includes Ref. 5 + 49 + 51

7

5305670048

BUSHING

8

5305670270

UPPER PART, CPL. Includes Ref. 2 + 10 + 12 + 19 + 46 + 51

9

1940000939

RIVET

10

5305670271

BUMPER CPL. Includes Ref. 9

11

5305670209

WASHER

12

5305670272

STOP DEVICE CPL. Includes Ref. 11 + 13 + 14 + 15 + 51

13

5305670273

TENSION SPRING

14

5305670164

HANDLE CPL Includes Ref. 16

15

- -

NAME PLATE

16

5305670166

BOLT

18

5305670167

STOP CPL Includes Ref. 19 + 51

19

5305670168

RIVET

20

- -

NAME PLATE

21

- -

NAME PLATE

22

5305670131

WASHER

23

5305670029

STOP

24

5305670274

WEAR PARTS SET Includes Ref. 2+7+10+19+20+23+31+33+39+40+43+46+47+49+51+55+57+67+79

25

- -

NAME PLATE

26

5305670054

BOWDEN CABLE Includes Ref. 28 + 51

27

5305670055

CABLE ASSY Includes Ref. 15 + 25 + 28 + 51

28

5305670026

BOLT

29

5305670056

CONTROL UNIT Includes Ref. 28 + 30 + 51

30

5305670057

HANDLE

31

5305670171

PIPE

32

5305670275

SPRING CPL. Includes Ref. 7 + 10 + 19 + 31 + 33 + 36 + 51

33

5305670059

BUMPER

34

5305670295

SUSPENSION

35

5305670226

ROCKER CPL Includes Ref.2+19 to 23+31+40+43+46+47+49+51+55+57+74+79

36

5305670279

BOLT

39

5305670229

BUMPER CPL Includes Ref. 2 + 37 + 38 + 49 + 51

40

5305670230

ROLLER

43

5305670175

BEARING

45

- -

NAME PLATE

46

5305670062

TRACK ROLLER

47

- -

NAME PLATE

49

- -

NAME PLATE

50

5305670063

COVERING Includes Ref. 51

51

- -

NAME PLATE

52

5305670276

GAS STRUT CPL. Includes Ref. 20 + 47 + 49 + 51 + 61

53

- -

NAME PLATE

54

- -

NAME PLATE

55

- -

NAME PLATE

56

5305670277

COMPRESSOR CPL. Includes Ref. 20 + 2 + 51 + 53 to 55 + 57 + 61

57

- -

NAME PLATE

58

- -

NAME PLATE

59

5305670067

CABLE Includes Ref. 20 + 51 + 57

60

5305670278

HOSE CPL. Includes Ref. 20 + 51 + 57 + 58 + 61

61

- -

NAME PLATE

62

5305670290

HANDLE Includes Ref. 16 + 19 + 20

63

5305670291

GUIDE

64

5305670292

SUPPORT Includes Ref. 51

65

5305670293

BOWDEN CABLE

66

5305670294

SHOCK ABSORBER CPL. Includes Ref. 21 + 22 + 51 + 64 + 74

72

5305670181

COVER Includes Ref. 73

73

5305670182

RIVET

74

- -

NAME PLATE

79

5305670184

STOP

82

- -

NAME PLATE

87

5305670178

SEAT BOTTOM ASSY Includes Ref. 2+20+43+45 to 47+51+55+79+94

94

- -

NAME PLATE
