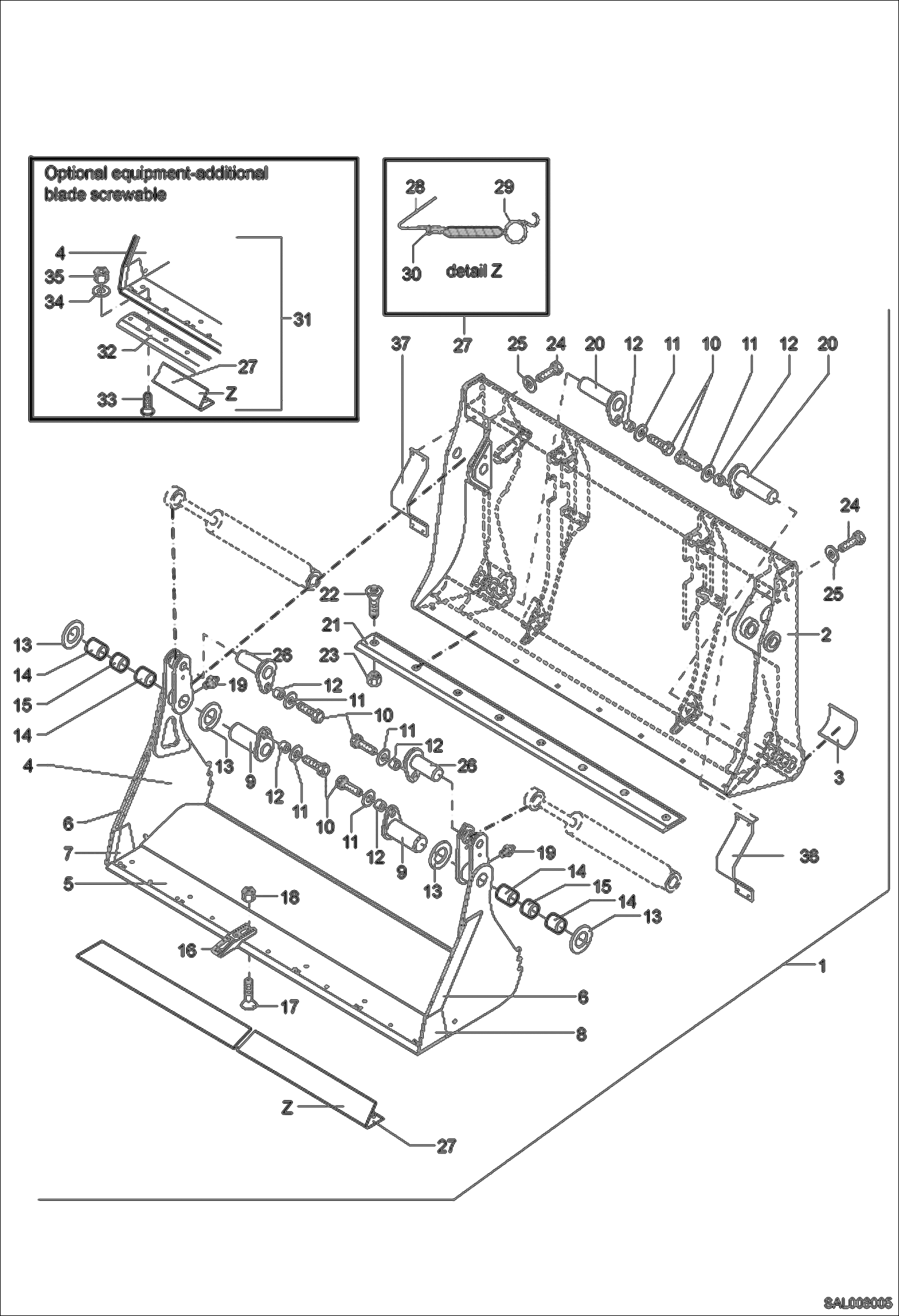

Запчасти Bobcat AL275 4 IN 1 SHOVEL 1700mm 0,60cbm Навесное оборудование

1

6322800000

4 IN 1 SHOVEL W/Ref. 2, 4, 9-30

2

6322801001

REAR SHOVEL CPL. W/Ref. 3

3

6322801025

SKID SHOE

4

6322802001

FRONT SHOVEL CPL. W/Ref. 5-8

5

0460701005

CUTTING EDGE

6

6322802009

SIDE-STRIP

7

0393701023

CUTTING EDGE

8

0393701024

CUTTING EDGE

9

0333023030

PIN

10

1008707529

BOLT M 12X25

11

1343707061

WASHER 13

12

0333023033

SPACER BUSHING

13

1309412725

SHIM

14

0159903056

BUSHING

15

6366203007

BUSHING

16

5902647350

TOOTH

17

1062707230

BOLT M 12X40

18

1212251014

NUT M 12

19

1608003010

GREASE NIPPLE

20

0157709042

PIN

21

0322803010

BOLT-ON CUTTING EDGE

22

1062707036

BOLT M 14X40

23

1212251015

NUT M 14

24

1008707018

BOLT M 6X20

25

1343707057

WASHER

26

0366204110

PIN

27

6451201030

TOOTH PROTECTION CPL. W/Ref. 10-12

28

TOOTH PROTECTION

29

5249001010

SPRING

30

1395707827

COTTER PIN Was 5249001011 - A

31

6322900000

4 IN 1 SHOVEL WITH BOLT W/Ref. 2-15, 19-30, 31-35

32

0460202102

BOLT-ON CUTTING EDGE

33

1062707236

BOLT M 14X50

34

1290707025

WASHER B 15

35

1212251015

NUT M 14

36

0323003015

BRACKET

37

0323003016

BRACKET
