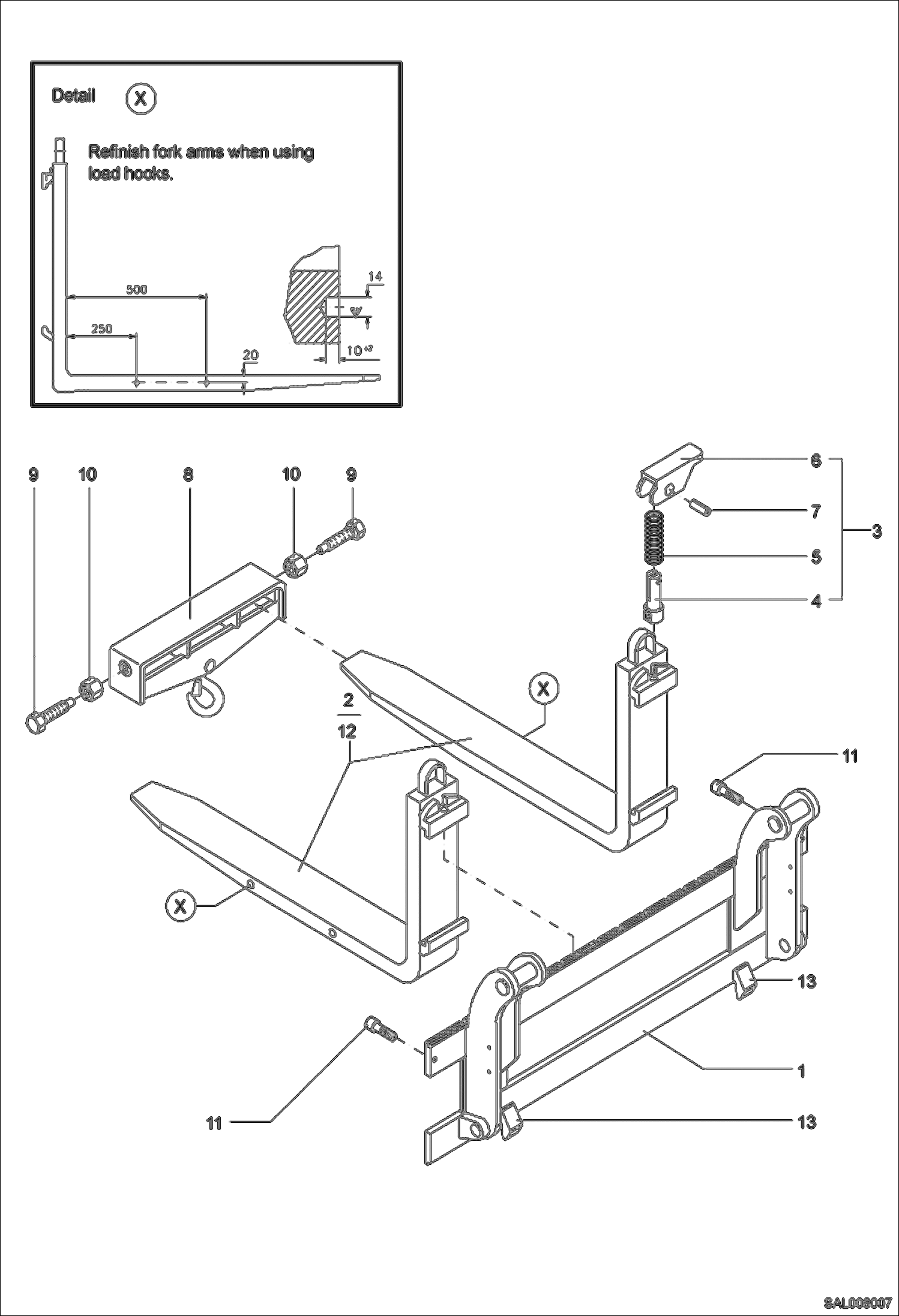

Запчасти Bobcat AL275 STACKER EQUIPMENT WITH CRANE HOOK Навесное оборудование

1

6396712001

FORK ATTACHEMENT

2

5252661272

FORKS 45X1120 - W/Ref. 3

3

5252661277

LOCKING DEVICE W/Ref. 4-7

4

5252661278

PIN

5

5252661279

SPRING

6

5252661281

LEVER

7

5252661282

PIN

8

6396731002

CRANE HOOK

9

6333206010

BOLT M 16X80

10

1210707016

NUT M 16

11

1045707829

BOLT M 12X30

12

5252661270

FORK TINE 40X900 - W/Ref. 3

13

0396712011

STOP
