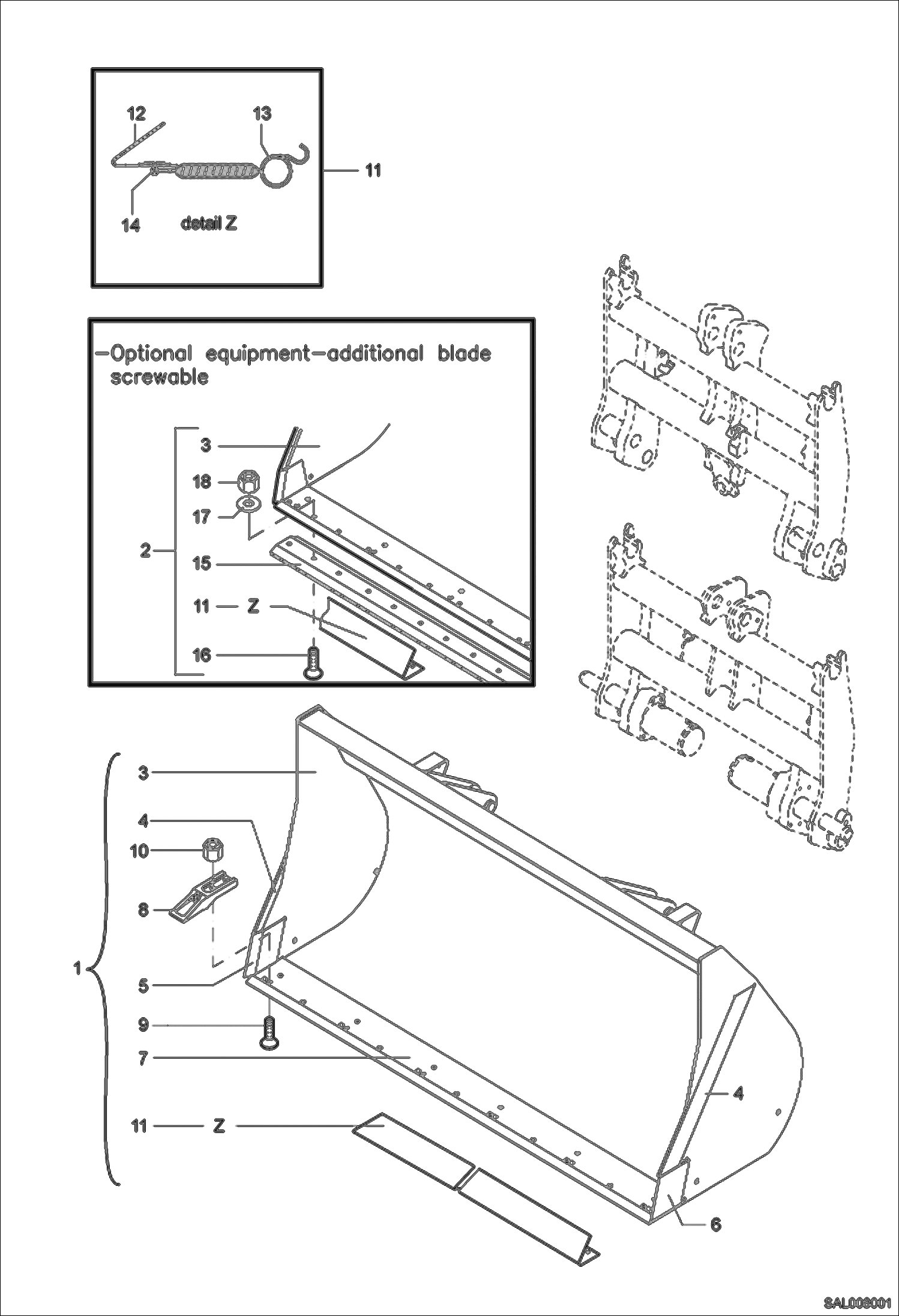

Запчасти Bobcat AL275 LOADING SHOVEL 1700mm 0.65cbm Навесное оборудование

1

6451201000

LOADING SHOVEL 1700MM W/Ref. 3-14

2

6451202000

LOADING SHOVEL 1700MM - W/Ref. 3-8, 11-20

3

6451201001

LOADING SHOVEL 1700MM 1700MM - W/Ref. 4-7

4

6396201004

SIDE-STRIP

5

0451201023

CUTTING EDGE RIGHT

6

0451201024

CUTTING EDGE LEFT

7

0460701005

CUTTING EDGE

8

5902647350

TOOTH

9

1062707230

BOLT M 12X40

10

1212251014

NUT

11

6451201030

TOOTH PROTECTION CPL. W/Ref. 12-14

12

TOOTH PROTECTION

13

524001010

SPRING

14

1395707827

COTTER PIN Was 5249001011 - A

15

0460202102

BOLT-ON CUTTING EDGE

16

1062707236

BOLT M 14X50

17

1290707025

WASHER B 15

18

1212251015

NUT M 14
