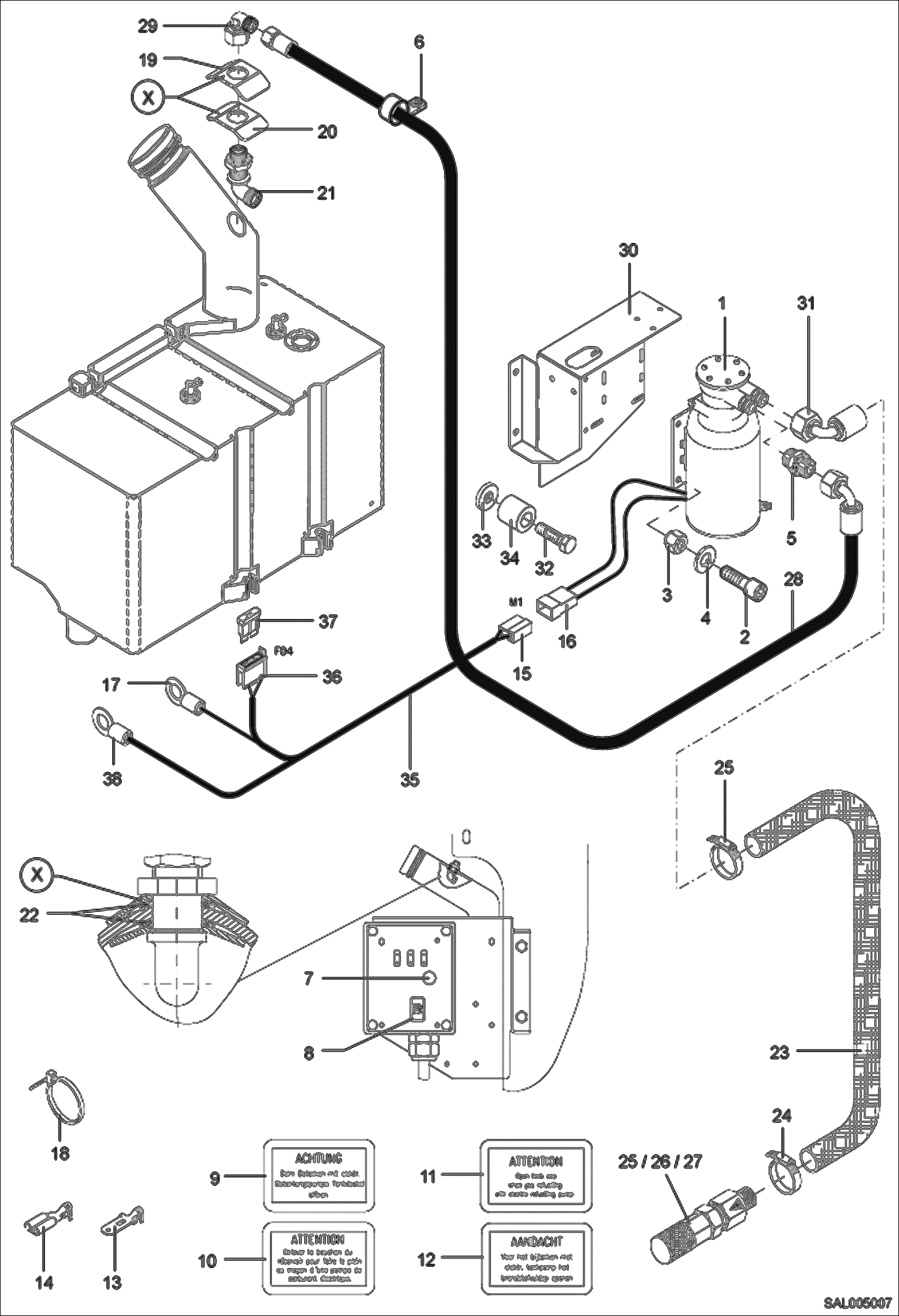

Запчасти Bobcat AL275 REFILLING PUMP POWER UNIT

1

5531001001

PUMP

2

1045707909

BOLT M 5X16

3

1212251007

NUT M5

4

1290707012

WASHER 5,3

5

1915060264

FITTING

6

5000210400

HOSE CLIP 23,0

7

5050230700

HORN BUTTON

8

5358609113

LABEL

9

5358609074

MARKING PLATE

10

5358609075

SIGN PLATE

11

5358609073

SIGN PLATE

12

5358609256

SIGN PLATE

13

5350247311

TERMINAL MALE 6,3

14

5350246805

TERMINAL FEMALE 6,3

15

5350249534

FLAT PLUG 2-POLIG

16

5050651211

FEMALE Was 5350249535 - A

17

5350246820

CABLE CONNECTOR M 5

18

5350650294

BINDER 2,5X142

19

0451251005

PLATE

20

0451251006

PLATE

21

1931000595

FITTING

22

1970956828

O-RING 22X3X28

23

5531001002

HOSE

24

5660199200

HOSE CLIP 20 - 32

25

5531001006

VALVE

26

0190250020

HOSE

27

5558247074

PLUG

28

4112077351

HOSE

29

1924060154

ELBOW FITTING

30

6451251102

FIXATION BRACKET

31

5531001004

HOSE CONNECTOR

32

1007707824

BOLT M 10X60

33

1343707059

WASHER

34

0188814218

SPACE BUSHING

35

0451251115

HARNESS, WIRE

36

5050650525

FUSE, BRACKET

37

5050650266

FUSE

38

5350246610

CABLE CONNECTOR M8 BLAU
