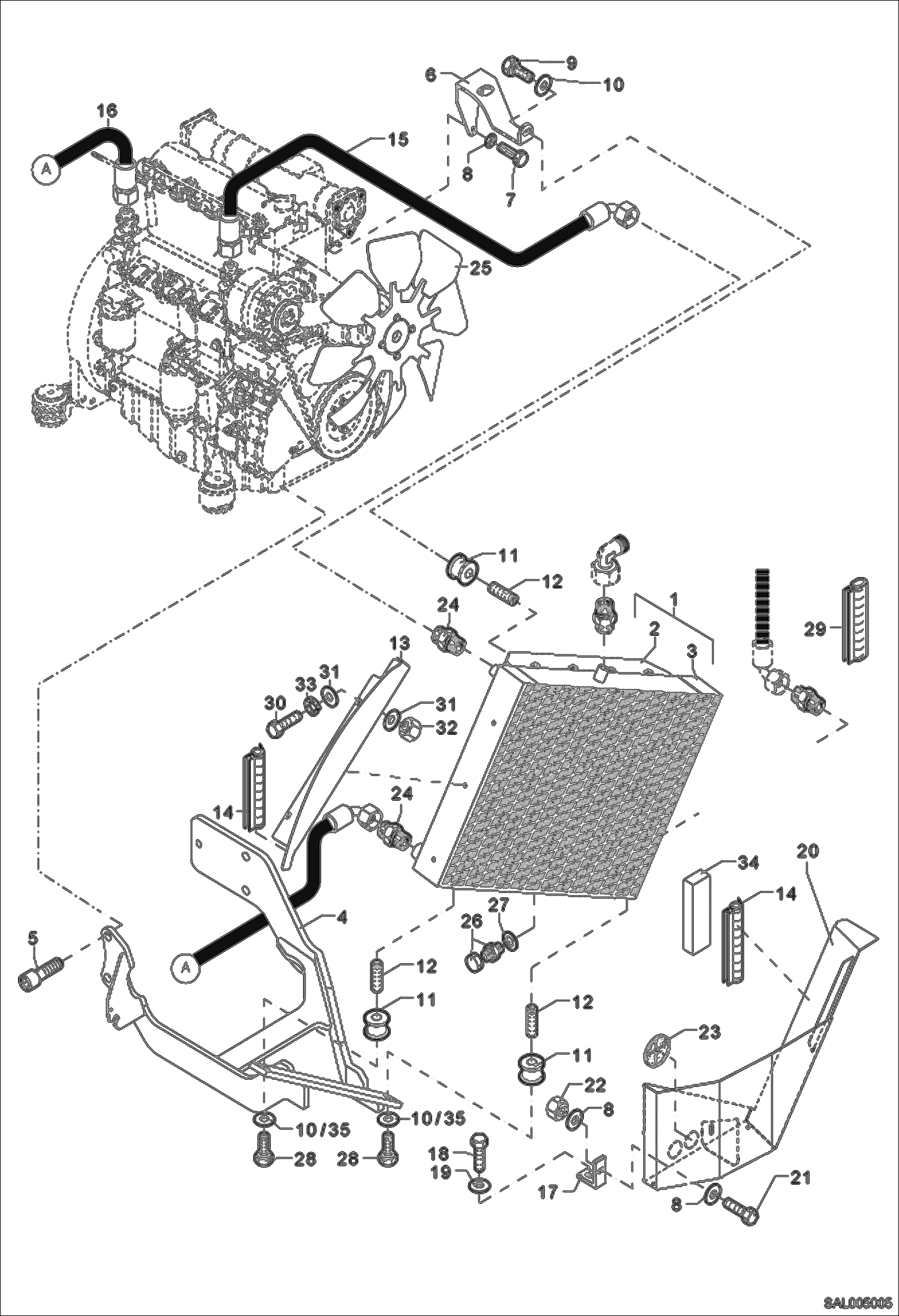

Запчасти Bobcat AL275 COMBINED COOLER POWER UNIT

1

5010661010

COOLER, COMBINED

2

5010663055

VENTILATION BOX

3

5010661010

COOLER, COMBINED

4

6453015041

BRACKET, COLLAR

5

1045977536

BOLT M 14X65

6

0451015048

BRACKET

7

1008707018

BOLT M 8X20

8

1343707057

WASHER 8,4

9

1008707423

BOLT Was 1008707623 - B

10

1343707059

WASHER 10,5X25X4

11

BEARING NLA - Was 5101290966 - A

12

1133341623

STUD M10X20

13

6451015052

SEALING PLATE

14

5354600030

SEALING SECTION

15

4801050215

HOSE

16

4801097215

HOSE

17

0451015056

ANGLE

18

1008707329

BOLT M 12X80

19

1290707022

WASHER 13

20

0451015073

BOX

21

1008707618

BOLT M 8x30

22

1212251011

NUT M8

23

5653095597

RESERVIOR

24

1915000336

FITTING

25

5411657091

COOLING FAN

26

5366654555

DRAIN PLUG

27

1636815857

O-RING

28

1008707623

BOLT M 10X20 Was 1008707923 - B

29

5354600028

SEALING SECTION

30

1008707213

BOLT M 6X20

31

1307707014

WASHER 6,4

32

1212251009

NUT M 6

33

1321707014

SPRING WASHER

34

5354640120

RUBBER AK 7561

35

1307707020

WASHER 10,5
