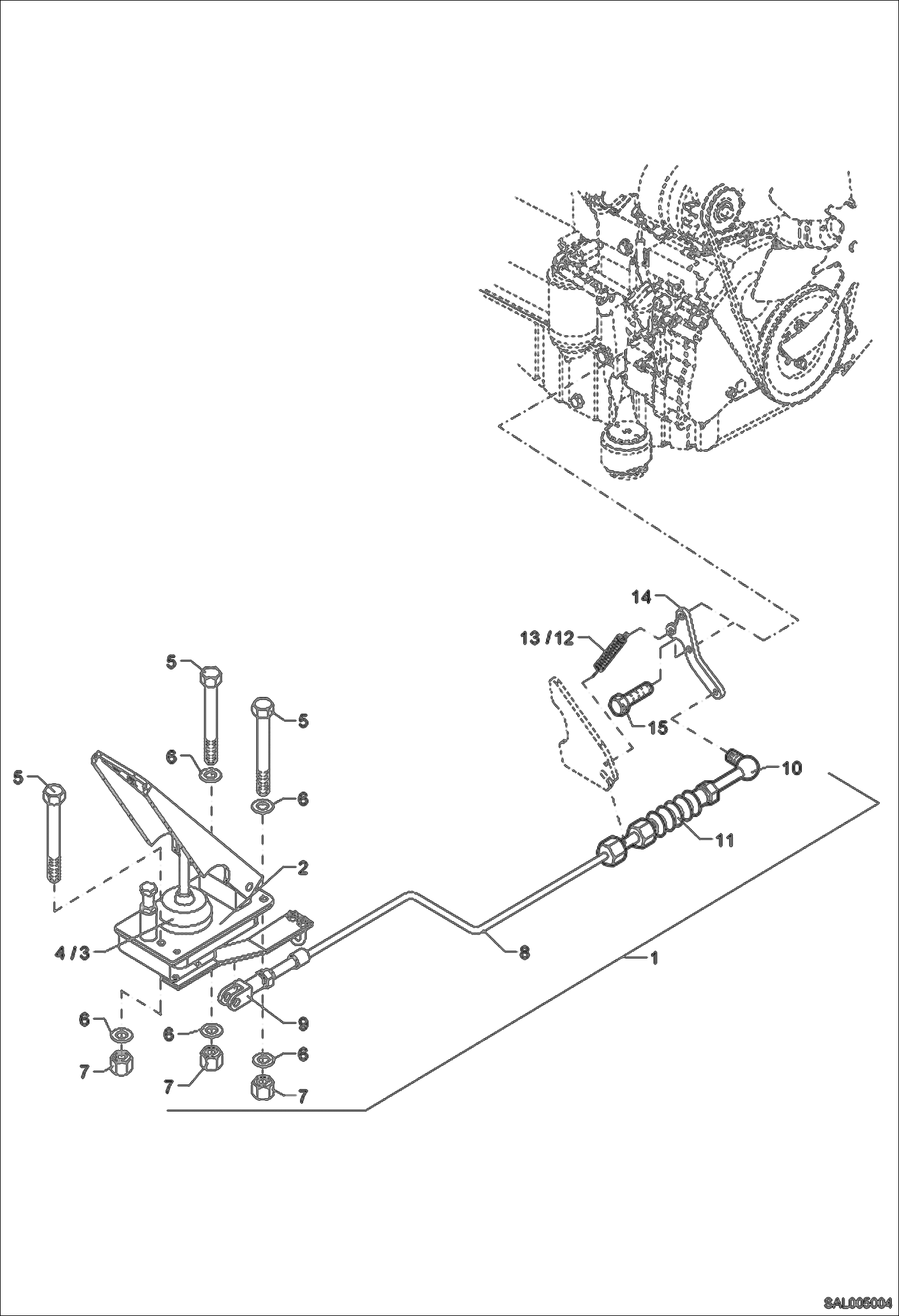

Запчасти Bobcat AL275 PEDAL ACCELERATOR POWER UNIT

1

5692657875

ACCELERATOR CONTROL PEDAL W/Ref. 2, 8

2

5692657905

PEDAL W/Ref. 3-4

3

5692609962

BELLOW-PEDAL

4

5692657880

SPRING

5

1007707214

BOLT M 6X45

6

1307707014

WASHER 6,4

7

1212251009

NUT M 6

8

5692657908

BOWDEN CABLE W/Ref. 9-11

9

5692657906

CLEVIS

10

5692657872

ANGLE JOINT

11

5692657907

BELLOW-CABLE

12

5064180710

SPRING

13

5653246455

HOSE, INSULATING

14

0336931006

LEVER

15

1008707213

BOLT M 6X20
