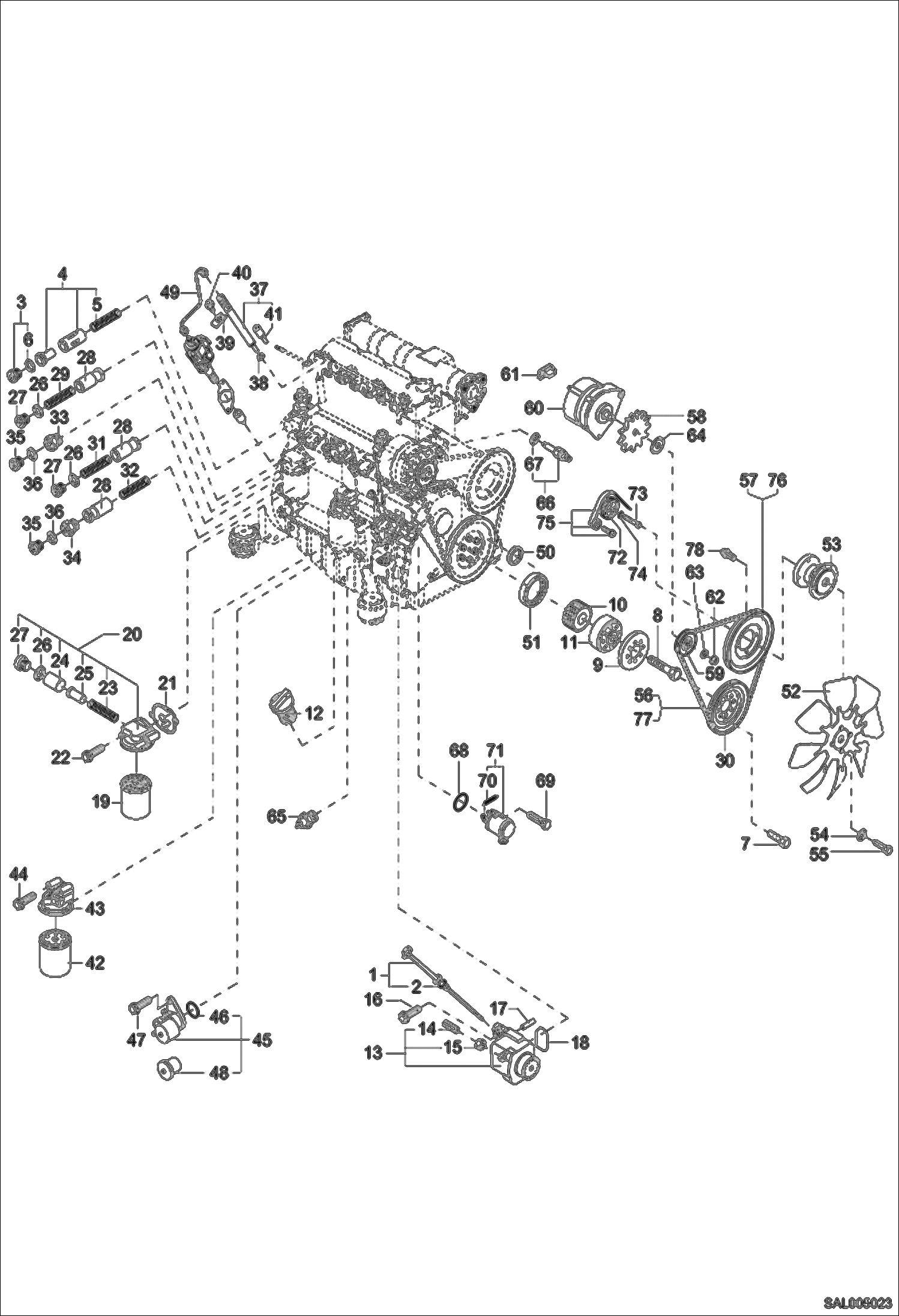

Запчасти Bobcat AL275 ENGINE PARTS Part 2 POWER UNIT

1

5411657128

OIL STICK

2

5411657129

O-SEAL Was 5411664006 - A

3

5411663788

PLUG

4

5411664959

THERMOSTAT Was 5411657981 - A

5

5411664321

SPRING

6

5411664322

SEAL

7

5411664323

BOLT

8

5411664525

BOLT

9

5411663472

LUBE DEFLECTOR

10

5411664030

BELT

11

5411664031

OUTPUT FLANGE

12

5411657927

FILLER CAP Was 5411656455 - A

13

5411664356

LUBRICAT. OIL PUMP

14

5411664357

STUD

15

5411657266

VIS

16

5411664078

BOLT

17

5411664080

BOLT

18

5411657861

SEAL RING

19

5411642211

OIL FILTER ENGINE

20

5411664358

HOUSING, OIL FILTER Was 5411664358 - A

21

5411664359

SEAL

22

5411657890

BOLT

23

5411664098

COMPRESSION SPRING

24

5411664099

CONTROL VALVE

25

5411664100

TEMPERATUR SENSOR

26

5411664111

SEAL

27

5411657549

PLUG

28

5411663792

VALVE, ENG

29

5411663793

SPRING, COMPRESSION

30

5411656509

PULLEY EUROPE

31

5411663795

SPRING, COMPRESSION

32

5411663796

SPRING, COMPRESSION

33

5411663797

ADAPTER, ENG

34

5411664361

FITTING

35

5411663799

PLUG

36

5411657373

SEAL RING

37

5411657852

INJECTOR, FUEL

38

5411657853

SEAL, INJ FUEL

39

5411664146

CLAW

40

5411657457

BOLT

41

5411657854

NOZZLE, INJ FUEL

42

5411656301

FUEL FILTER

43

5411657891

CONSOLE

44

5411657890

BOLT

45

5411663652

FUEL PUMP

46

5411663944

O-SEAL

47

5411663945

BOLT

48

5411663947

REPAIR KIT

49

5411663042

INJECTION PIPE

50

5411664205

RING, SEAL RADIAL

51

5411664206

RING,SEAL RADIAL

52

5411657091

COOLING FAN

53

5411657177

FAN SUPPORT

54

5411663196

BOLT

55

5411663406

WASHER

56

5411657050

V-BELT, BREATHER standard

57

5411663775

V-BELT DRIVE standard

58

5411663638

FAN, ALT

59

5411663639

PULLEY, ENG

60

5411663461

GENERATOR

61

5411663640

RELAY, VOLTAGE

62

5411656994

NUT

63

5411656995

SPRING WASHER

64

5411663641

RING, SUPPORT

65

5411663213

OIL PRESSURE SWITCH

66

5411664008

TEMP. TRANSMITTER

67

5411656884

SEAL RING

68

5411657871

O-SEAL

69

5411663804

BOLT

70

5411663803

SPRING, TORSION

71

5411657872

DEVICE, SHUTDOWN

72

5411664081

SYNCHRONE BELT PULLEY

73

5411664082

BOLT

74

5411664084

WASHER

75

5411657858

REPAIR KIT

76

5411657026

PULLEY, DRIVE option

77

5411657027

V-BELT option

78

5411664027

BOLT
