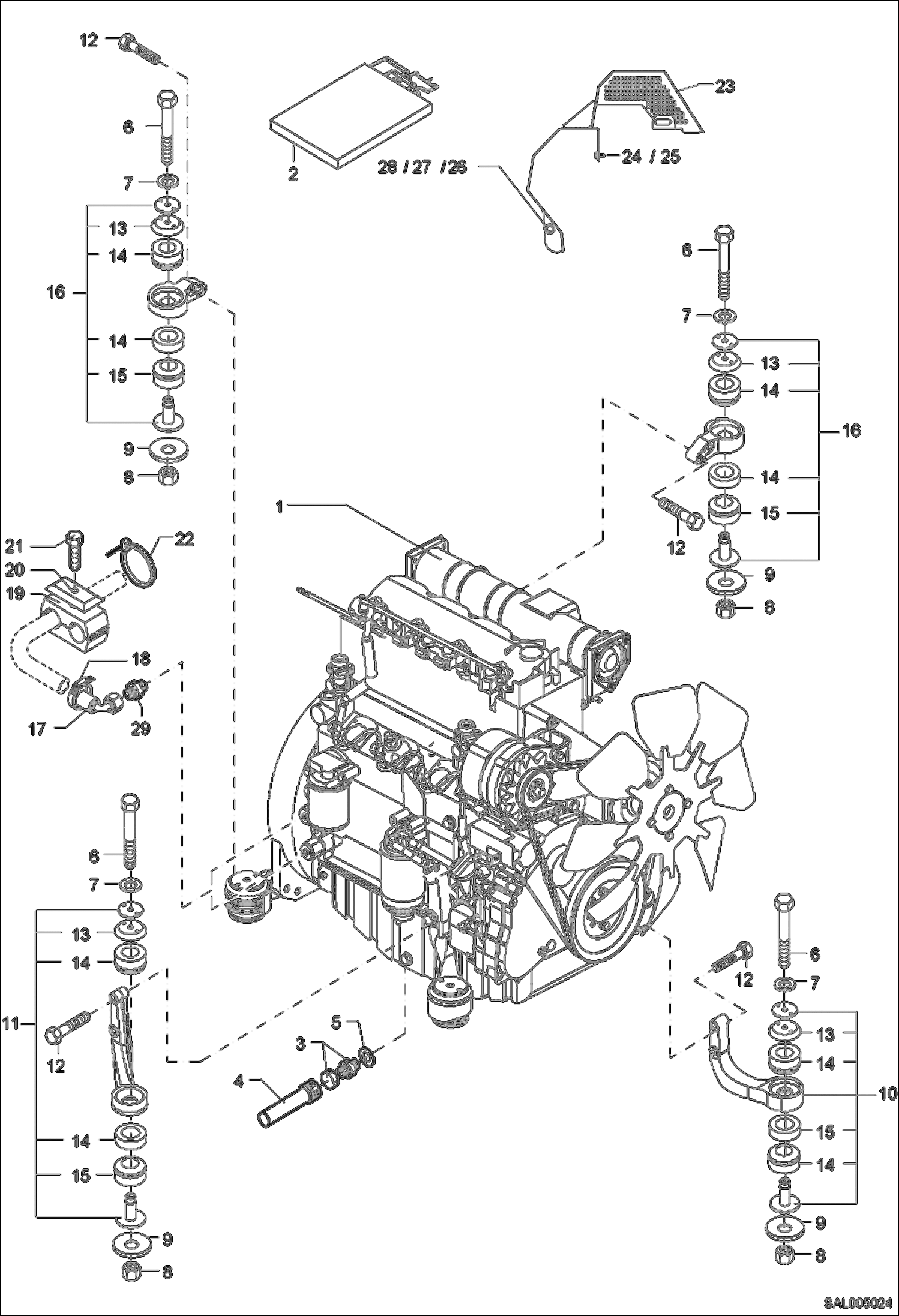

Запчасти Bobcat AL275 ENGINE INSTALLATION POWER UNIT

1

5411662206

DIESEL ENGINE

2

5411664822

SUPPLEM. GASKET SET

3

5366654555

DRAIN PLUG

4

5366654556

HOSE, DRAIN

5

1636815857

O-RING

6

1007707132

BOLT

7

1290707022

WASHER

8

1212251014

NUT

9

0451015008

MOUNTING RING

10

5411663040

FOOT,MOUNTING W/Ref. 13-15 Was 5411657865 - A

11

5411663041

FOOT,MOUNTING W/Ref. 13-15 Was 5411657866 - A

12

5411656919

BOLT

13

5411663452

COVER, MOUNT ENG

14

5411663451

MOUNT, RUBBER

15

5411664294

LAYER,RUBBER

16

5411663043

FOOT,MOUNTING W/Ref.13-15 Was 5411657867 - A

17

5260216091

CONNECTOR,HOSE Was 1915060565 - B

18

5603320315

CLIP

19

5660199788

HOSE CLIP

20

5660200230

COVER PLATE

21

1007707319

BOLT M 8X45

22

5350650280

BINDER 7,8X290

23

6451303503

GUARD, A/C option

24

1008707018

BOLT M8X20 - option

25

1343707057

WASHER 8,4 - option

26

1008707124

BOLT M 10X30 - option

27

1343707059

WASHER 10,5 - option

28

0162203521

SPACER option

29

FITTING Was 1915060565 - B
