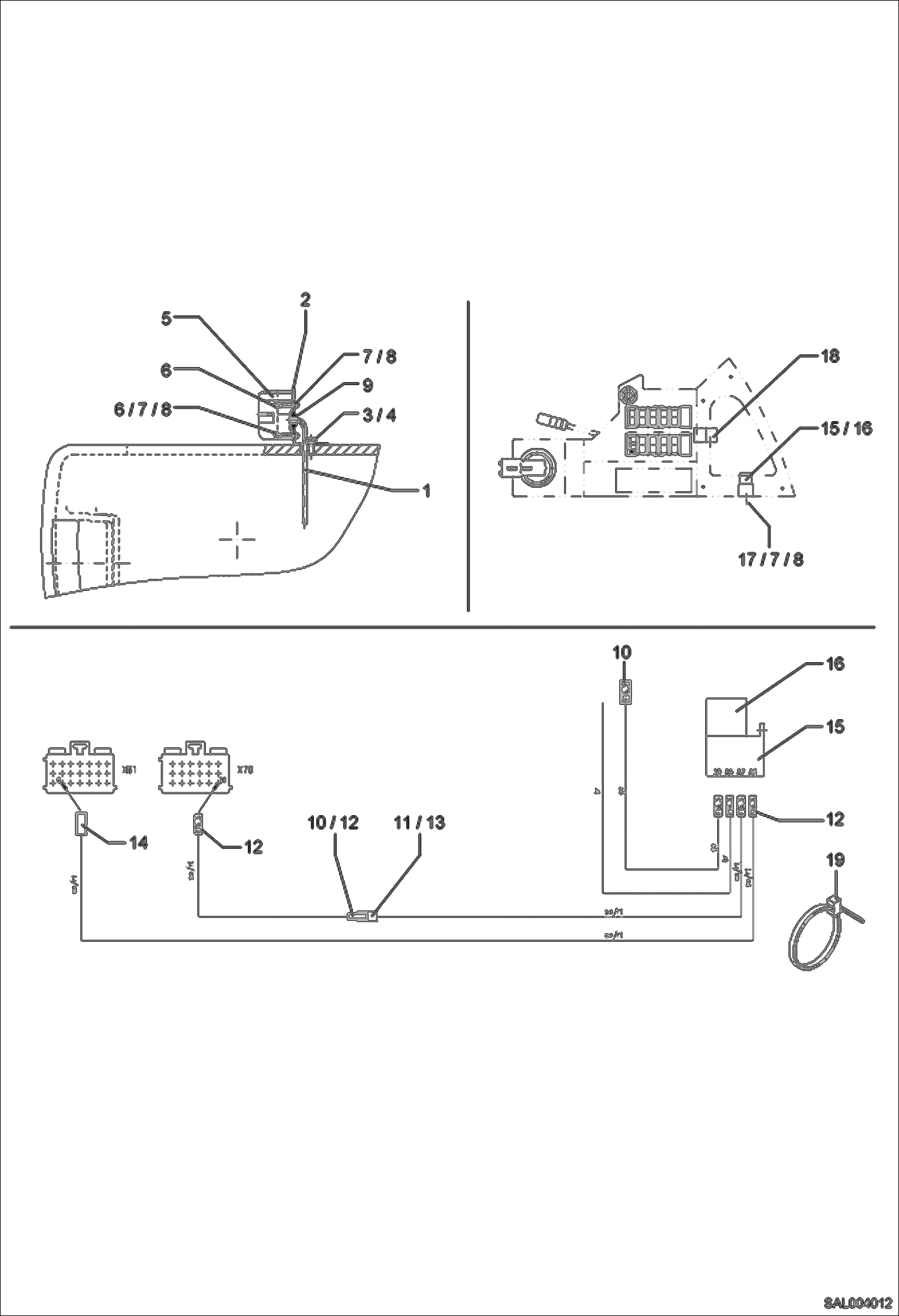

Запчасти Bobcat AL275 FEMALE PLUG 7 PINS AT REAR CHASSIS ELECTRIC INSTALLATION

1

0451319005

HARNESS, WIRE

2

0451319002

BRACKET

3

1008707817

BOLT M 8X16

4

1290707018

WASHER

5

5050286100

SOCKET

6

1045707710

BOLT

7

1212251007

NUT M 5

8

1290707012

WASHER 5,3

9

5653095540

GROMMET, RUBBER

10

5350249536

HOUSING 1-FACH

11

5350249537

CONNECTOR MALE

12

5350246805

TERMINAL FEMALE

13

5350247311

TERMINAL MALE 6,3

14

5350249552

CONNECTOR

15

5050231015

HOUSING

16

5050247335

RELAY

17

1008707609

BOLT

18

5050661837

FLASHER

19

5350650294

BINDER 2,5X142
