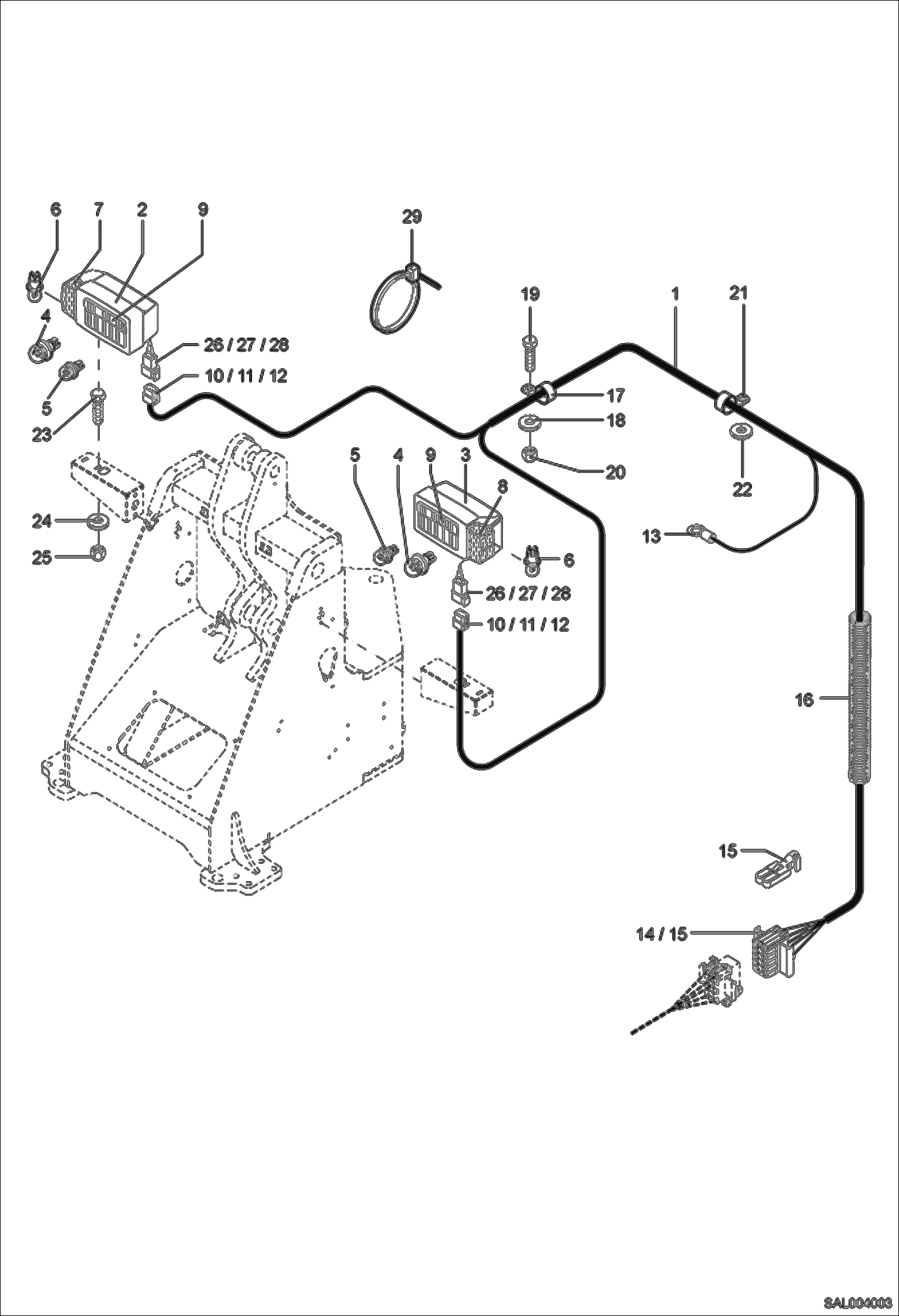

Запчасти Bobcat AL275 FRONT CHASSIS ELECTRICITY ELECTRIC INSTALLATION

1

5110662034

WIRE HARNESS FRONT CH. VORDERWAGEN

2

5110660147

HEAD LIGHT RIGHT RECHTS

3

5110660148

HEAD LIGHT LEFT LINKS

4

1813000022

HALOGEN BULB

5

1813000002

BULB SPHERICAL

6

1813000005

BULB (SIGNAL LIGHT)

7

GLASS (SIGNAL LIGHT) RIGHT

8

GLASS (SIGNAL LIGHT) LEFT

9

5110660190

REFLECTOR

10

5350555327

HOUSING (FEMALE)

11

5350555328

LOCK

12

5350555325

FEMALE TERMINAL

13

5350246610

CABLE CONNECTOR

14

5350249554

HOUSING (FEMALE)

15

5350249552

CONNECTOR

16

5350249552

CONNECTOR

17

5000136710

HOSE CLIP

18

1290707018

WASHER 8,4

19

1008707318

BOLT

20

1212251011

NUT M 8

21

5000096800

HOSE CLAMP

22

1343707057

WASHER 8,4

23

1008707618

BOLT M 8X30

24

1343707057

WASHER 8,4

25

1212251011

NUT M 8

26

5350555342

HOUSING (MALE)

27

5350555344

LOCK

28

5350555321

MALE TERMINAL

29

5653093560

BINDER 4,8X200
