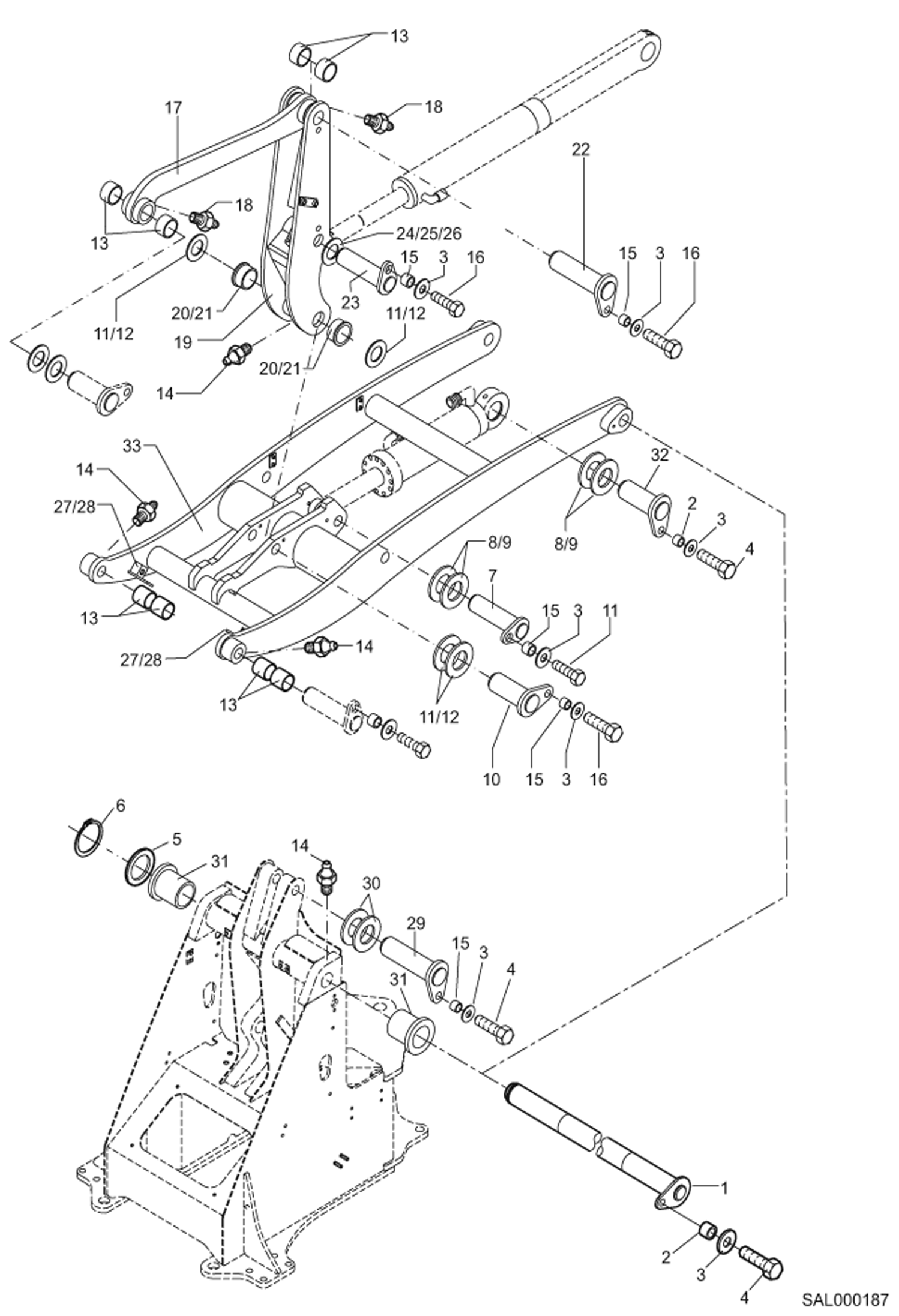

Запчасти Bobcat AL275 LOADING EQUIPMENT MAIN FRAME

1

6336021004

PIN

2

0156029033

SPACER

3

1343707061

WASHER

4

1008707829

BOLT

5

1309412012

SHIM

6

1455622547

CIRCLIP

7

6397523008

PIN

8

1309412012

SHIM

9

1309412224

SHIM

10

0333023030

PIN

11

1309412924

WASHER

12

1309412936

WASHER

13

6165505062

BUSHING

14

1607003010

GREASE NIPPLE

15

0333023033

SPACER BUSHING

16

1008707529

BOLT

17

6460524001

LINKAGE

18

1607003006

GREASE NIPPLE

19

6461423001

TILTING LEVER

20

5809625598

BUSHING

21

6451021004

BUSHING

22

6332002002

PIN

23

6185023011

PIN CPL.FLAG

24

1309412231

SHIM

25

1309412225

SHIM

26

1309412813

SHIM

27

0332806107

DISTRIBUTOR

28

6460520019

PROTECTION

29

0390102006

PIN

30

1309412423

SHIM

31

0336002008

BUSHING

32

6332502010

PIN

33

6451020001

LIFTING FRAME
