REMOTE CONTROL VALVE With Control Valve 5088081114

Запчасти Bobcat AL275 REMOTE CONTROL VALVE With Control Valve 5088081114 ELECTRIC INSTALLATION

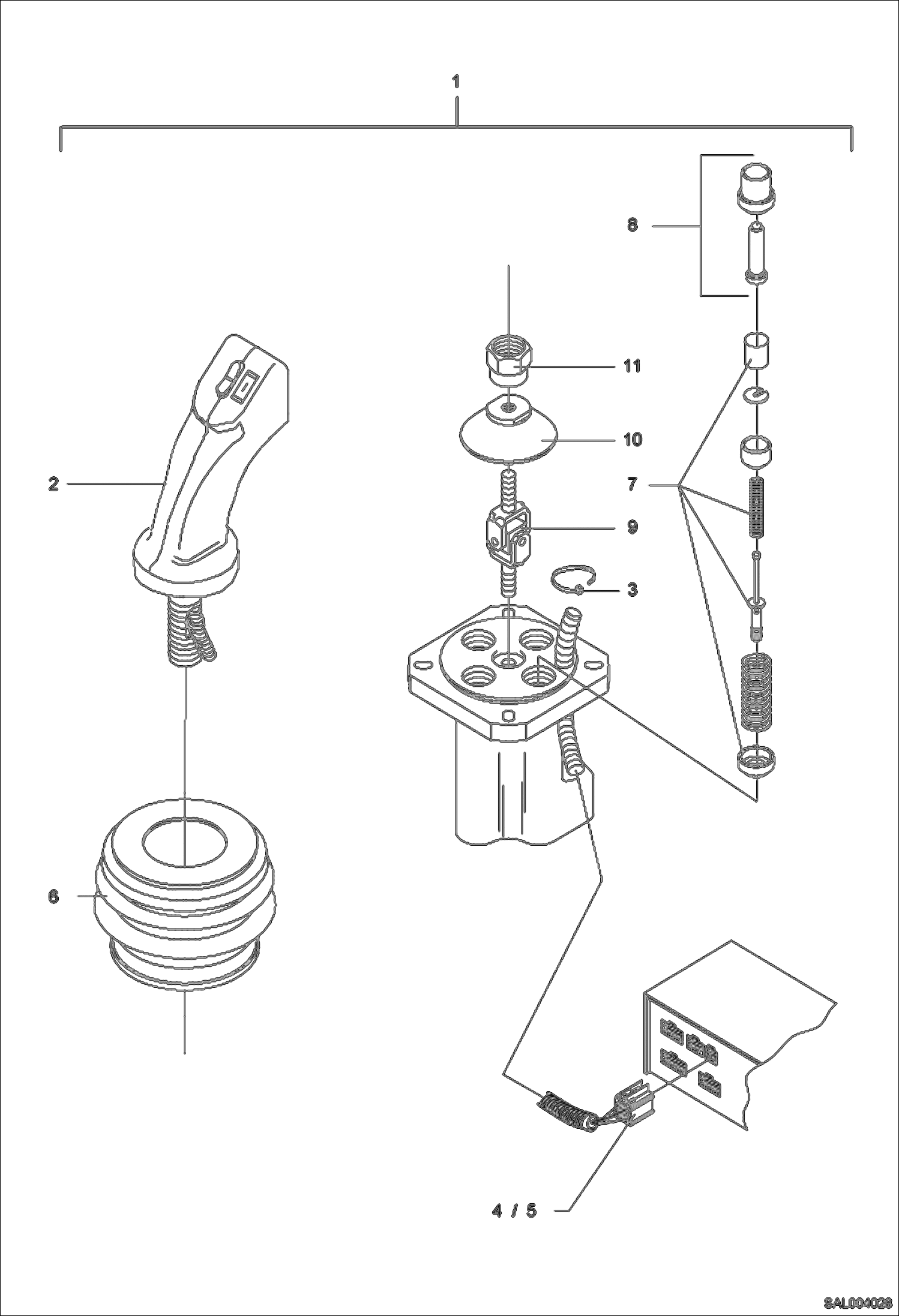

Схема запчастей Bobcat AL275 - REMOTE CONTROL VALVE With Control Valve 5088081114 ELECTRIC INSTALLATION
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5369661319

SERVO, CONTROL W/Ref. 2-11

2

5369661310

JOYSTICK JP67

3

5305670232

BINDER

4

5350249757

CONNECTOR 2-POLIG

5

5350249552

CONNECTOR

6

5369661188

BELLOW

7

5359661328

OPERATING SET CPL. -055-

8

5369661300

TAPPET, SET

9

5369661226

UNIVERSAL JOINT

10

5369661236

DISC

11

5369661238

NUT M 18X1,5
