REMOTE CONTROL VALVE With Control Valve 5520661873

Запчасти Bobcat AL275 REMOTE CONTROL VALVE With Control Valve 5520661873 ELECTRIC INSTALLATION

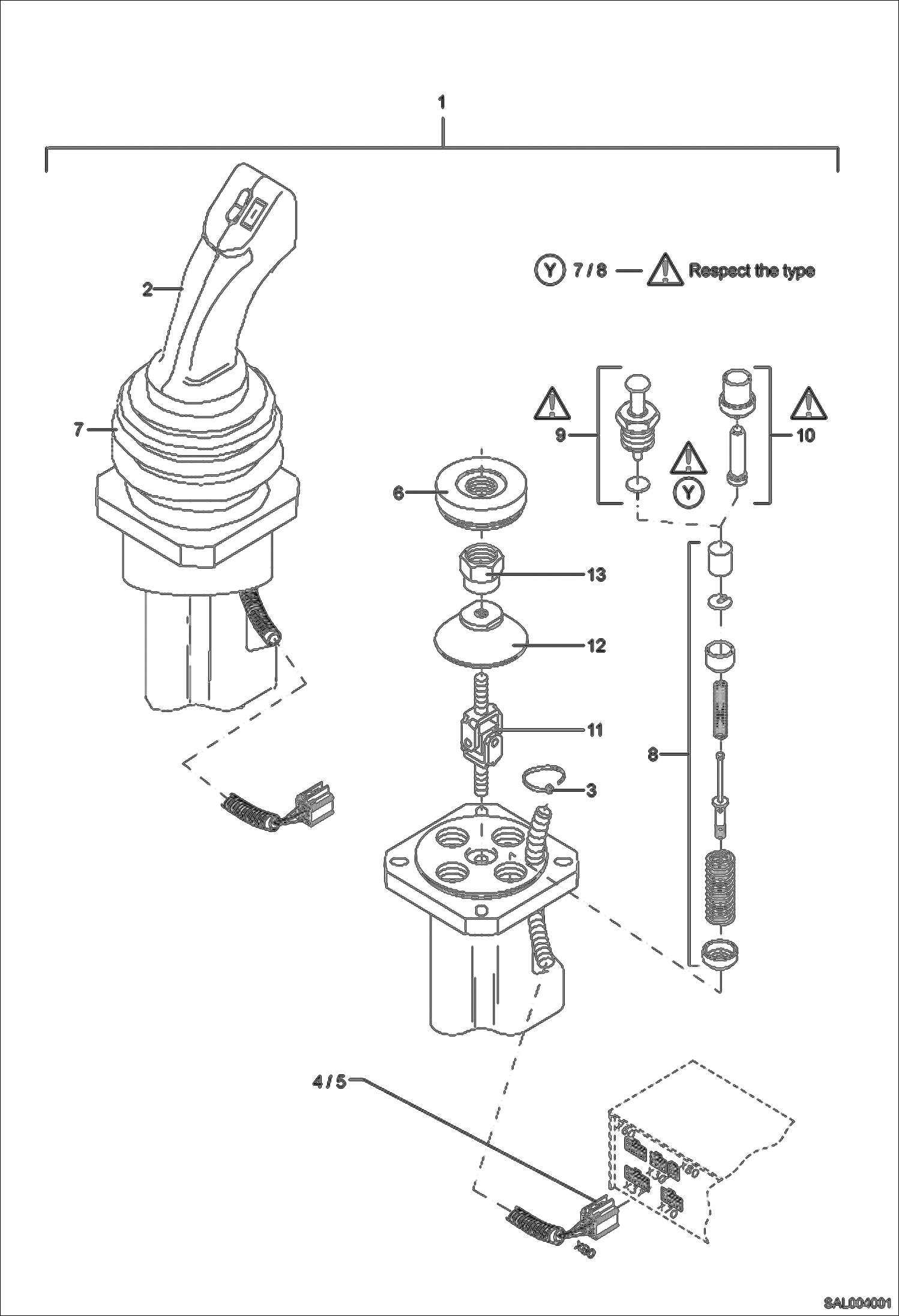

Схема запчастей Bobcat AL275 - REMOTE CONTROL VALVE With Control Valve 5520661873 ELECTRIC INSTALLATION
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5369661308

VALVE, PILOT CONTROL W/Ref. 2-13

2

5369661310

JOYSTICK JP67

3

5369661249

BINDER

4

5350249757

CONNECTOR 2-POLIG

5

5350249552

CONNECTOR

6

5369661313

DISTANCE RING

7

5369661188

BELLOW

8

5369661231

SET, OPERATING CPL. STK. 053

9

5369661185

TAPPET, SET

10

5369661300

TAPPET, SET

11

5369661226

UNIVERSAL JOINT

12

5369661236

DISC

13

5369661238

NUT M 18X1,5
