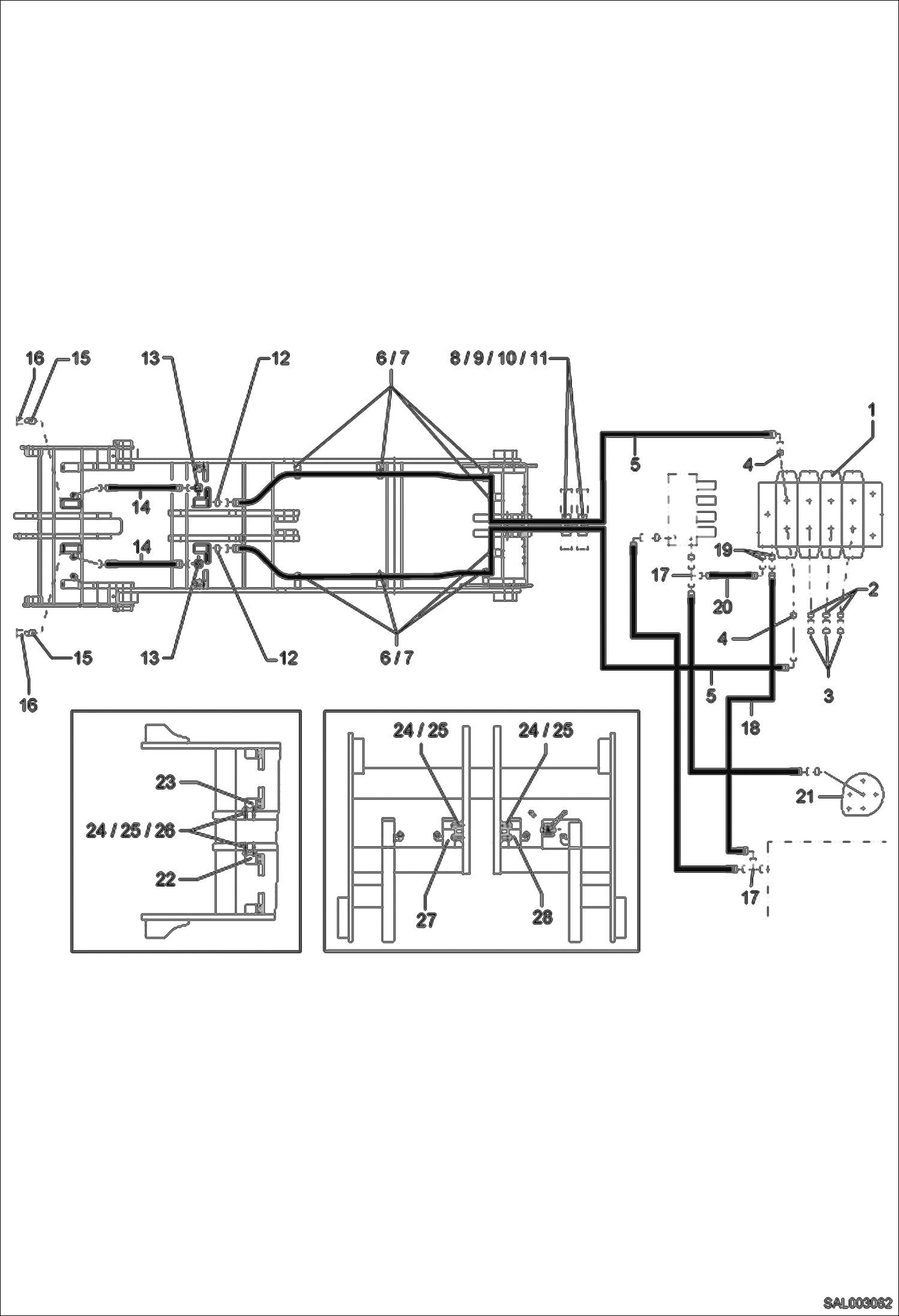

Запчасти Bobcat AL275 4th. CONTROL CIRCUIT HYDRAULIC INSTALLATION

1

5520661866

CONTROL VALVE

2

1938060174

FITTING

3

1915060856

FITTING

4

1915060262

FITTING

5

4260410374

HOSE

6

5660199784

HOSE CLIP

7

1007707714

BOLT M 6X70

8

6463717008

BRACKET

9

5660199784

HOSE CLIP

10

5660200130

COVER

11

1007707319

BOLT M 8x45

12

1915060561

FITTING

13

1926060157

FITTING

14

4460103359

HOSE

15

5000080001

COUPLING PLUG

16

5000080002

DUST CAP

17

1919060351

FITTING

18

4256033371

HOSE, HYD Was 4506033351 - A

19

1915060255

FITTING

20

4506060351

HOSE

21

5369661320

VALVE, PILOT CONTROL CPL.

22

6451217003

DISTRIBUT BLOCK

23

6451217004

DISTRIBUT BLOCK

24

1008707618

BOLT M 8X30

25

1343707057

WASHER 8,4

26

0333023033

SPACER BUSHING

27

6451217010

DISTRIBUT BLOCK

28

6451217008

DISTRIBUT BLOCK
