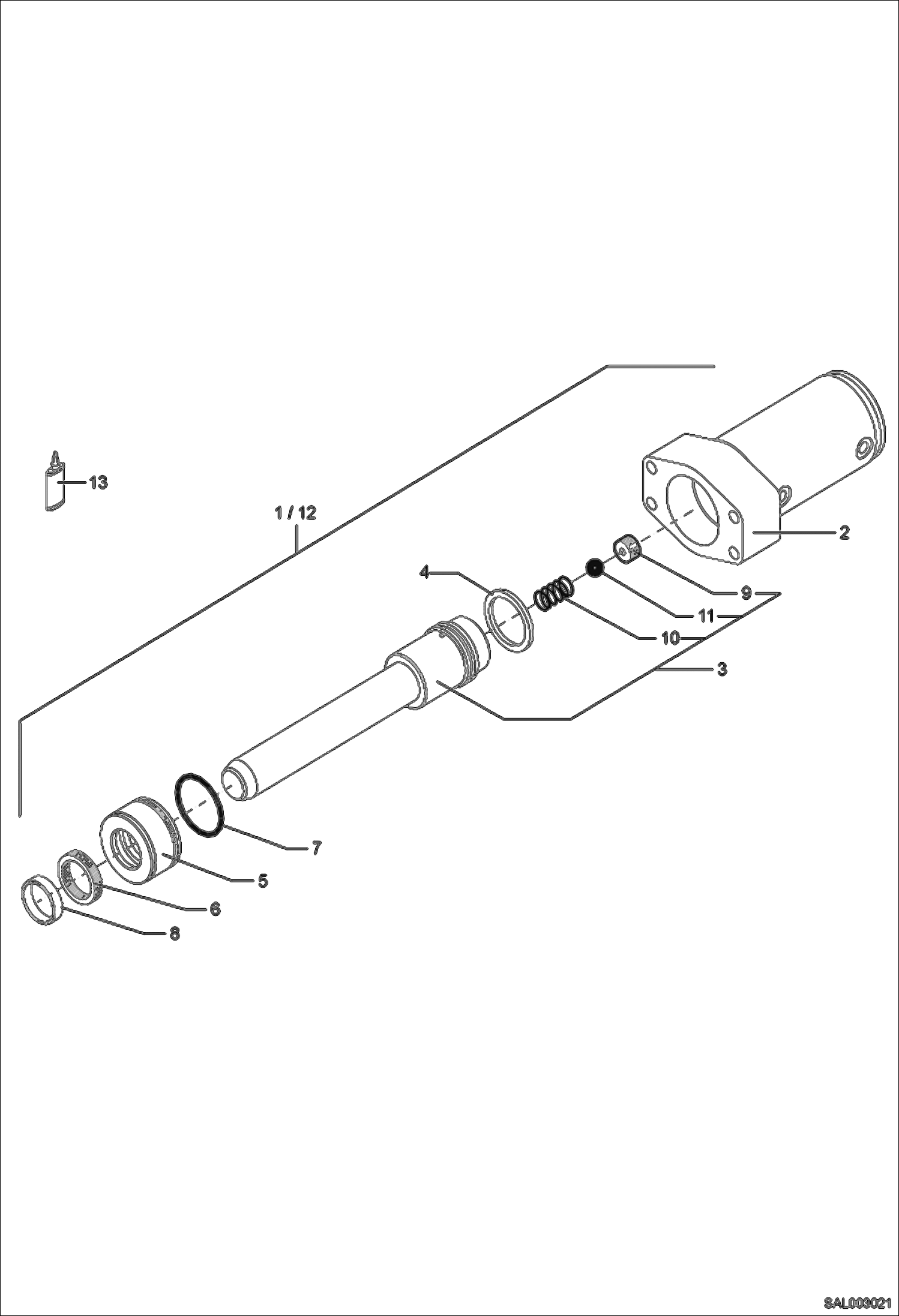

Запчасти Bobcat AL275 QUICK MOUNT HITCH CYLINDER Z 55/35 HYDRAULIC INSTALLATION

1

6502115100

HYDRAULIC ZYLINDER Z 55/35

2

0502115104

PIPE

3

6502115011

PISTON ROD W/Ref. 9-12

4

1634935355

PISTON SEAL

5

0502115117

PIERCING BUSHING

6

5060501035

ROD SEAL

7

1971956332

O-RING

8

1956000351

ROD SEAL

9

6502052720

FITTING

10

5064320210

SPRING

11

1516638236

STEEL BALL

12

1976999118

SEAL KIT W/Ref. 4, 6-8

13

MCS001035A

GLUE SL 2042
