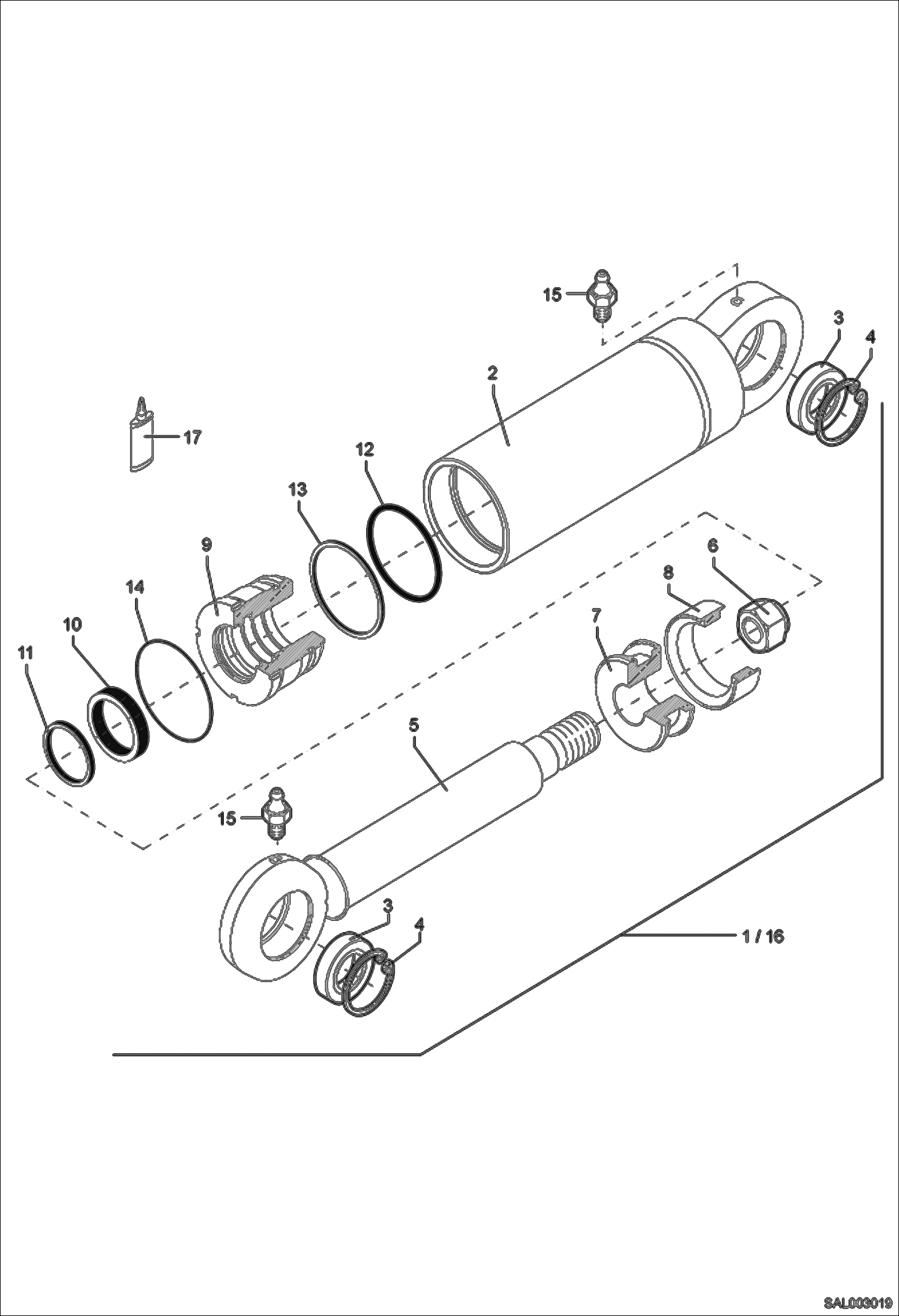

Запчасти Bobcat AL275 LIFTING FRAME CYLINDER Z 90/50 HYDRAULIC INSTALLATION

1

6500785500

HYDR. CYLINDER CPL. Z 90/50 - W/Ref. 2-14

2

6500785503

PIPE

3

1950010413

LINKAGE BEARING

4

1456622363

CIRCLIP

5

6500785111

PISTON ROD

6

1212251832

NUT M 36X3

7

0500760015

PISTON

8

1634935661

PISTON SEAL

9

0500772017

BUSHING

10

1965956565

ROD SEAL HART

11

1974955050

SCRAPER RING

12

1971958509

O-RING 94,2X5,7

13

1966960908

BACK UP RING

14

1971958919

O-RING

15

1607003006

GREASE NIPPLE A 6

16

1976999091

SEAL KIT W/Ref. 6, 8, 10-14

17

MCS001038A

GLUE SL 6038
