Запчасти Bobcat AL275 2-STAGE GEARBOX 36 km/h Fast Travel Version HYDRAULIC INSTALLATION

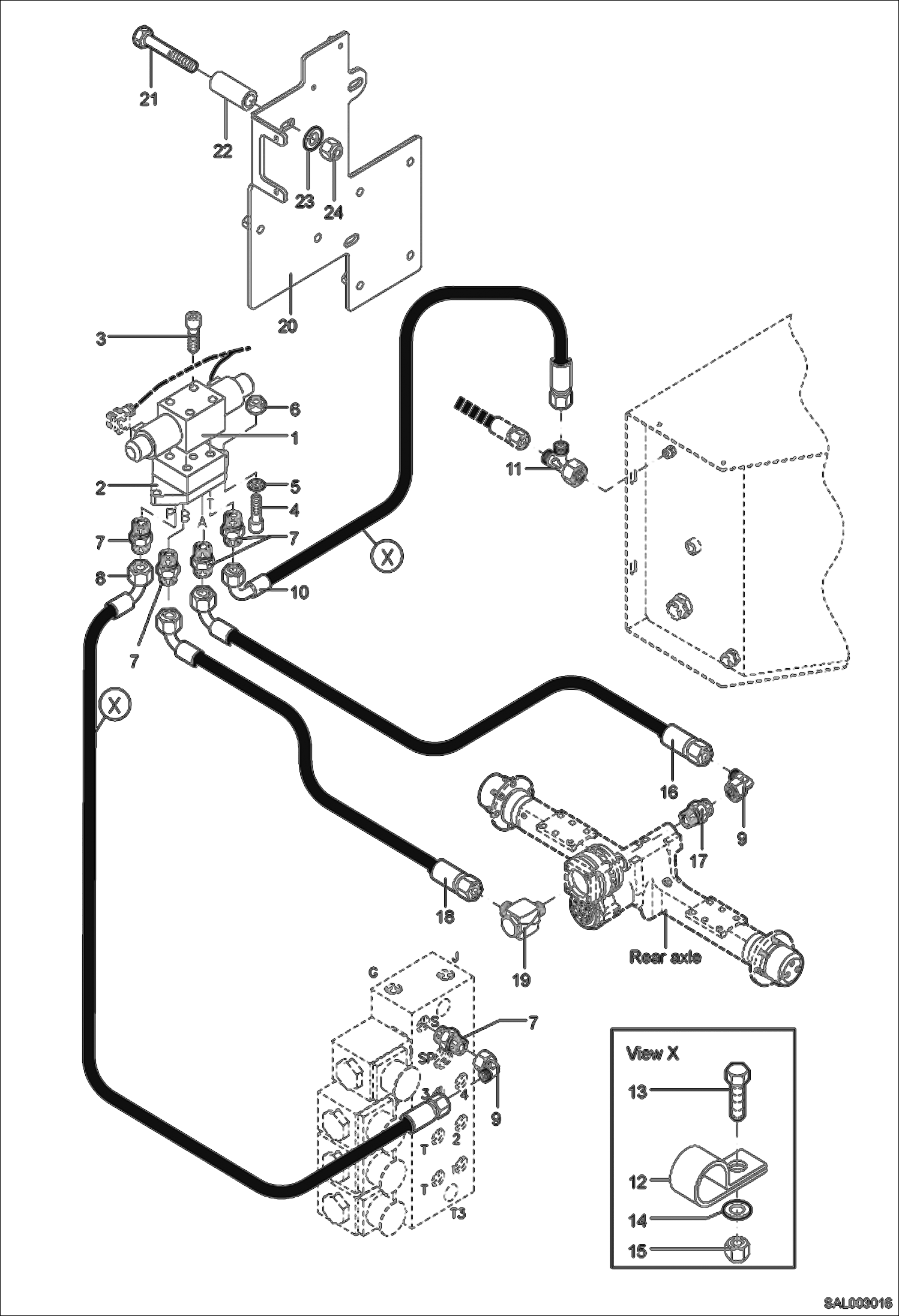

Схема запчастей Bobcat AL275 - 2-STAGE GEARBOX 36 km/h Fast Travel Version HYDRAULIC INSTALLATION

Артикул

Название

Примечание

Количество

1

5050656088

CONTROL VALVE

2

5003700003

CONNECTING PLATE

3

1045907710

BOLT M 5X30

4

1045707513

BOLT M 6X25

5

1290707014

WASHER 6,4

6

1212251009

NUT M6

7

1915000753

FITTING

8

4506115351

HOSE ASSEMBLY CPL.

9

1924000571

FITTING

10

4506097351

HOSE

11

1919000689

FITTING

12

5000210400

HOSE CLIP 23,0

13

1008707719

BOLT M 8X60

14

1290707018

WASHER 8,4

15

1212251011

NUT M8

16

4506085351

HOSE

17

1915000135

FITTING

18

4506072351

HOSE

19

1921000002

FITTING

20

0451539005

VALVE PLATE

21

1008707924

BOLT M 10X65

22

0188814218

SPACE BUSHING

23

1290707020

WASHER 10,5

24

1212251013

NUT M 10

Выбрано товаров: 24
