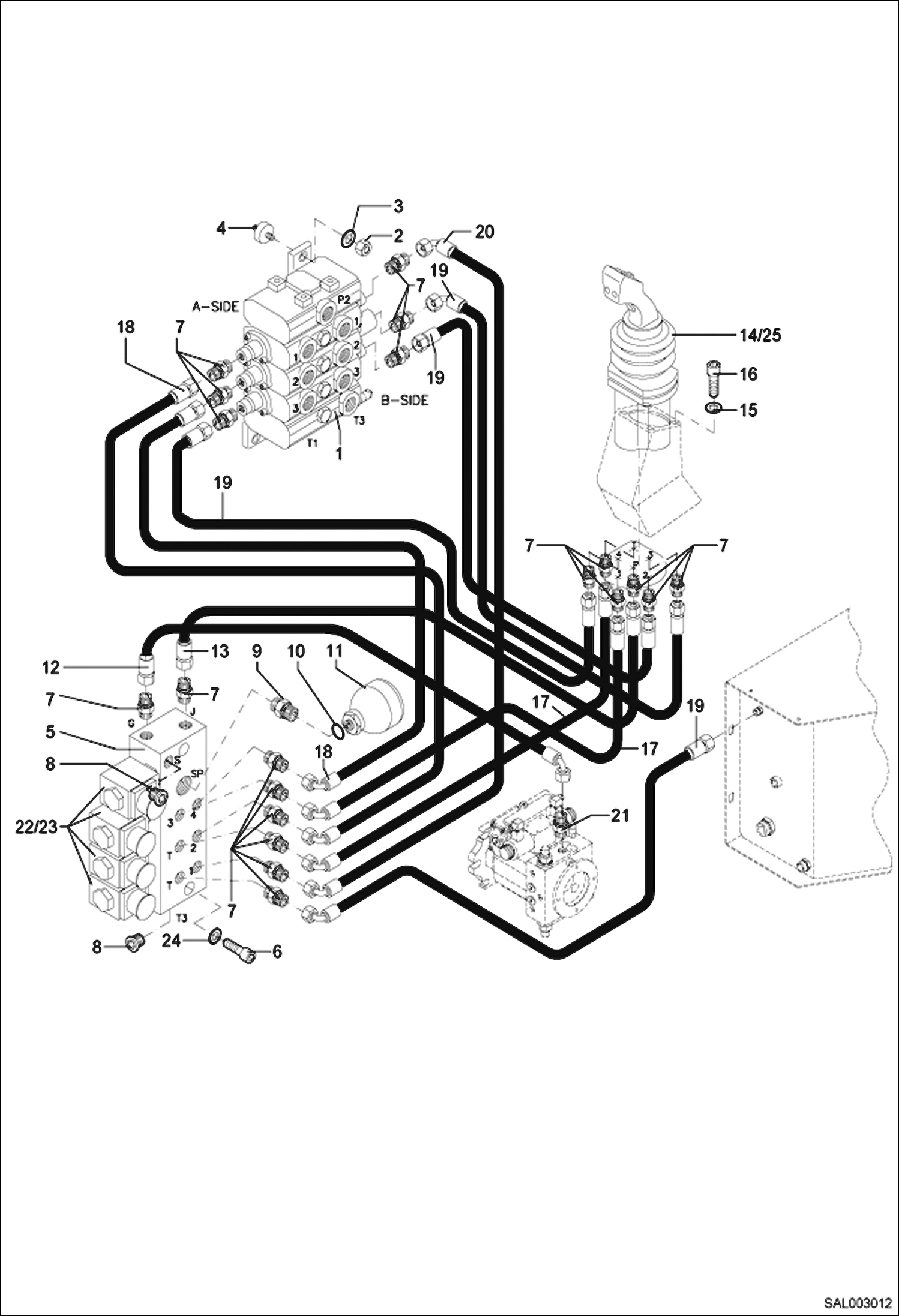

Запчасти Bobcat AL275 PILOT CONTROLS With Control Valve 5520661873 HYDRAULIC INSTALLATION

1

5520661873

VALVE, CONTROL See Illustration VALVE BANK/ SAL003017

2

1212251013

NUT M 10

3

1290707020

WASHER 10,5

4

5803655502

RUBBER BASE

5

5572100026

SOLENOID VALVE

6

1045707624

BOLT M 10X50

7

1915060255

FITTING

8

1912060452

PLUG

9

1915060264

FITTING

10

1636815359

SEAL RING

11

5385657890

HYDR.ACCUMULATOR

12

4506235351

HOSE

13

4506105240

HOSE

14

5369661308

VALVE, PILOT CONTROL See Illustration REMOTE CONTROL VALVE/ SAL004001

15

1290707014

WASHER 6,4

16

1045707513

BOLT M 6X25

17

4506130351

HOSE ASSEMBLY CPL.

18

4506040351

HOSE

19

4506085351

HOSE

20

4506072351

HOSE

21

1915060555

FITTING

22

5572100031

MAGNET CARTRIDGE

23

3600087177

O-RING

24

1343707059

WASHER 10,5

25

5369661320

VALVE, PILOT CONTROL CPL. See Illustration REMOTE CONTROL VALVE/ SAL004002 Option
