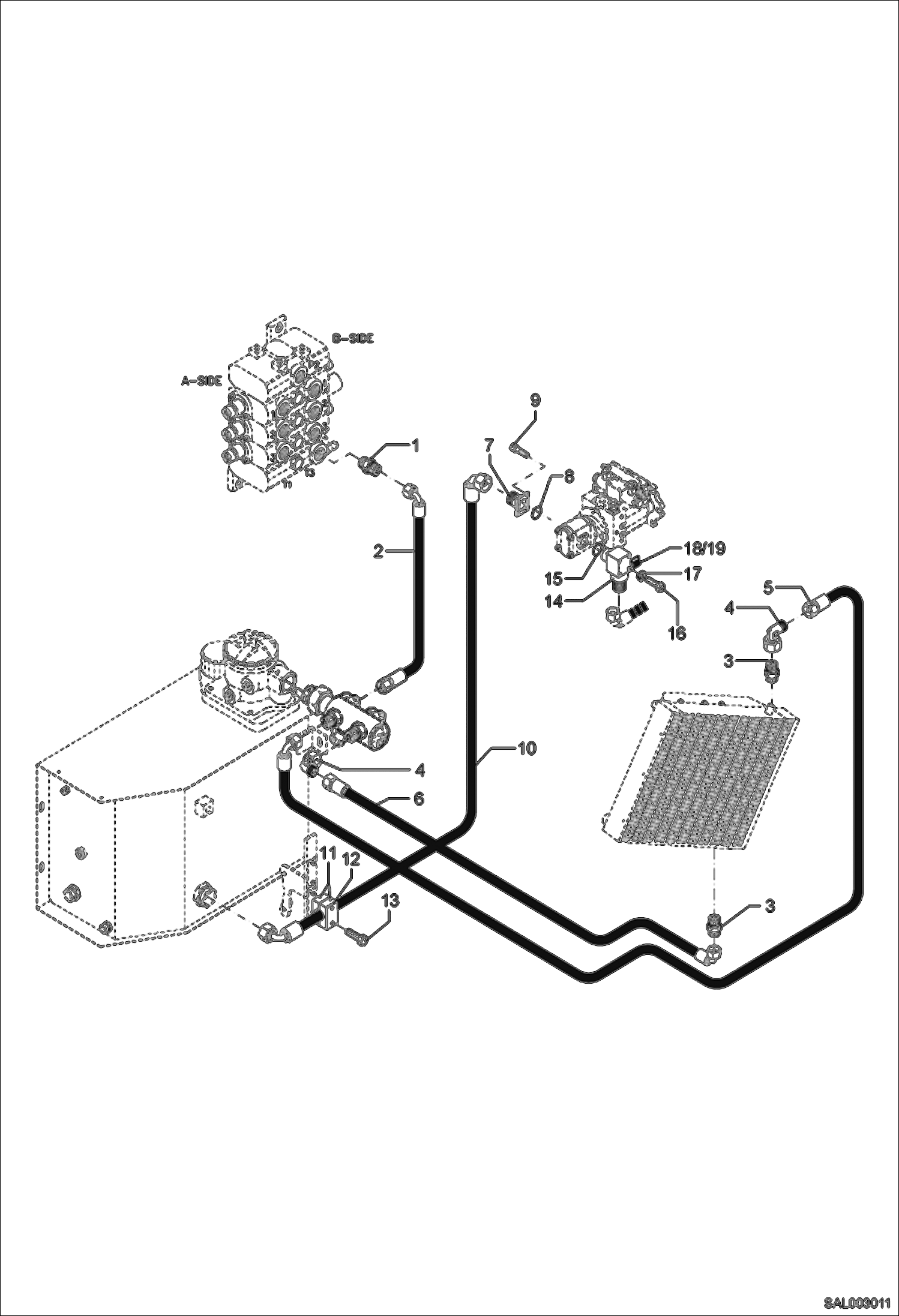

Запчасти Bobcat AL275 LOADING EQUIPMENT 2 HYDRAULIC INSTALLATION

1

5260310273

FITTING

2

4125097156

HOSE Was 4125081156 - B

3

1915000336

FITTING

4

1924060156

ELBOW FITTING

5

4120060156

HOSE

6

4120070156

HOSE

7

5260310277

FLANGE CONNECTION

8

1970956525

O-RING 32X2,5

9

1045707318

BOLT M 8X25

10

4132126217

HOSE

11

5660199644

HOSE CLIP

12

5660200160

COVER PLATE

13

1007707714

BOLT M 6X70

14

5260310275

FLANGE CONNECTION W/Ref. 18-19

15

1970956625

O-RING 26X2,5X31

16

1007707414

BOLT M 6X55

17

1321707014

SPRING WASHER B 6

18

5066234000

TEST FITTING

19

1912000676

SEAL RING
