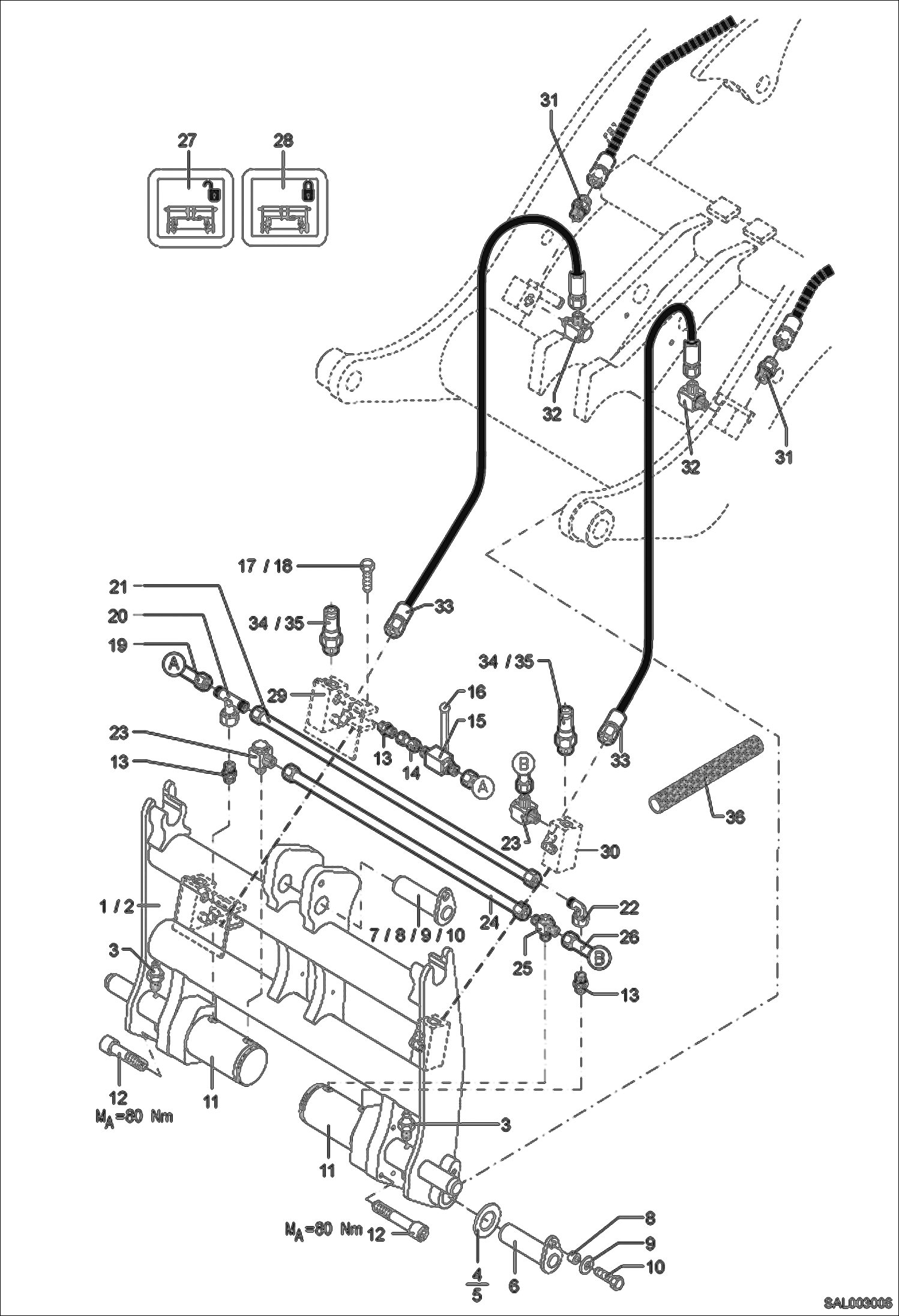

Запчасти Bobcat AL275 HYDRAULIC QUICK MOUNT HITCH HYDRAULIC INSTALLATION

1

6451104000

QUICK FIT DEVICE CPL. W/Ref. 2-28

2

6451104002

QUICK M. HITCH FRAME W/Ref. 29-30

3

1607003006

GREASE NIPPLE A 6

4

1309412813

SHIM 35X45X1

5

1309412225

SHIM 35X45X2

6

0332002002

PIN

7

0338002005

PIN

8

0333023033

SPACER BUSHING 20X3,5X7

9

1343707061

WASHER 13X30X6

10

1008707529

BOLT M 12X25

11

6502115100

HYDRAULIC ZYLINDER Z 55/35

12

1045707624

BOLT M 10X50

13

1915060555

FITTING

14

0103723021

TUBING

15

5001609600

BALL TAP

16

5001207171

KEY

17

1008707213

BOLT M 6X20

18

1210707009

NUT M 6

19

0461604030

TUBING

20

1919060151

FITTING

21

0461604032

TUBING

22

1924060151

FITTING

23

1921060154

FITTING

24

0460604034

TUBING

25

1920000103

FITTING

26

0460604036

TUBING

27

5358609064

MARKING PLATE

28

5358609065

MARKING PLATE

29

6332806104

DISTRIBUTION RIGHT

30

6332806105

DISTRIBUTION LEFT

31

1915000759

FITTING

32

1926060157

FITTING

33

4460103359

HOSE

34

5000080001

COUPLING PLUG

35

5000080002

DUST CAP

36

0490607152

PROTECTION HOSE Option
