AXLE, TIRES

Запчасти Bobcat AL275 AXLE, TIRES DRIVE SYSTEM

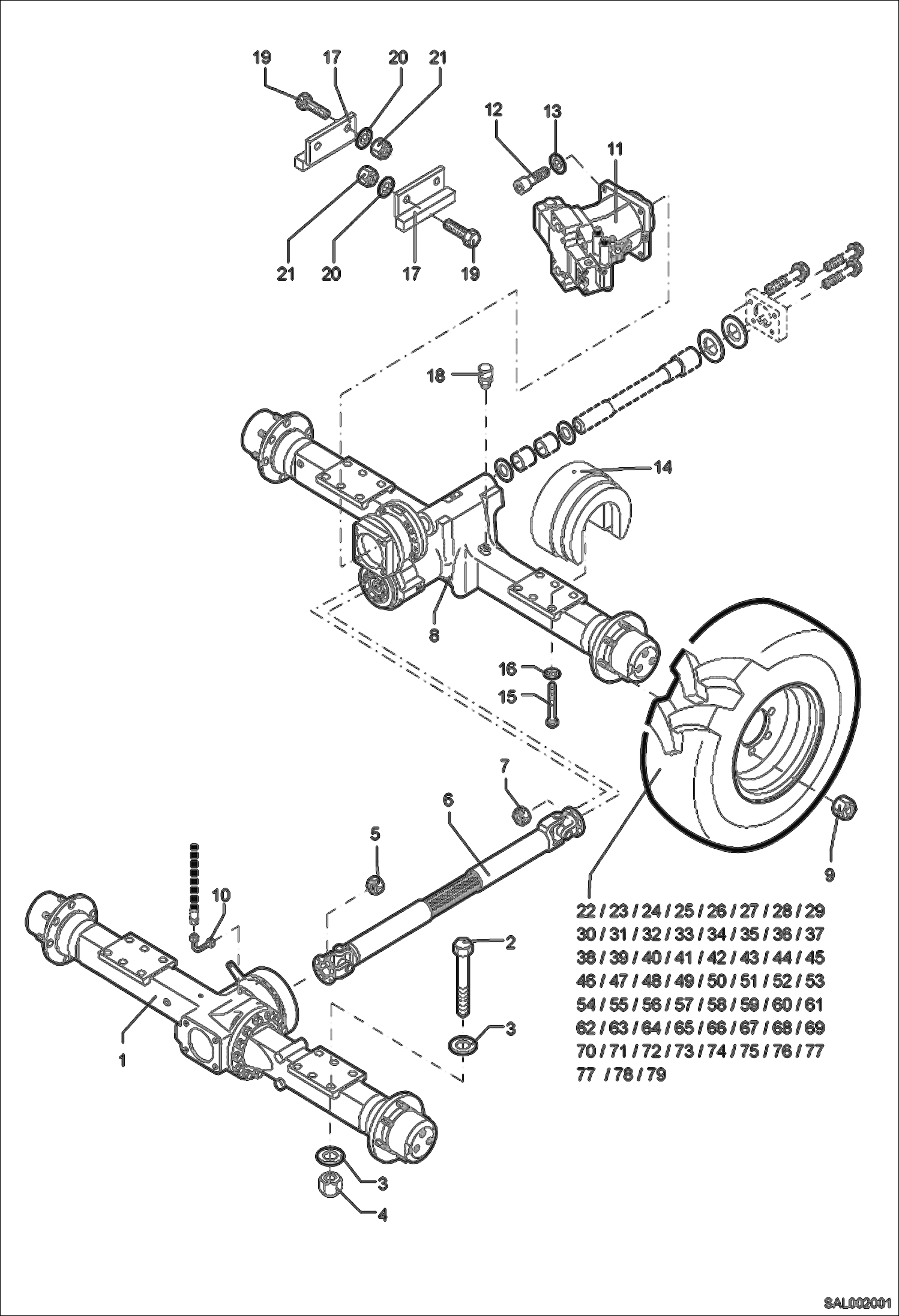

Схема запчастей Bobcat AL275 - AXLE, TIRES DRIVE SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5904661656

AXLE 5904661656

2

1007707553

BOLT M 20X90

3

1343707069

WASHER 21X44X8

4

1212251018

NUT M 20

5

1214907013

NUT M 10

6

5200661106

CARDAN SHAFT

7

1214907411

NUT M 8X1

8

5904661661

AXLE 5904661661

9

1270707617

NUT M 20X1,5

10

5904660751

BRAKE LINE

11

5364664180

HYDR. MOTOR

12

1045707230

BOLT M 12X40

13

1290707022

WASHER 13

14

0451219002

REAR AXLE WEIGHT

15

1008707630

BOLT M 12X50

16

1290707022

WASHER 13

17

6460611002

OSCILLATING STOP

18

5904658832

VALVE, BLEEDING

19

1007707830

BOLT M 12X60

20

1343707061

WASHER 13X30X6

21

1212251014

NUT M 12

22

6451290000

WHEEL W/Ref. 23-25

23

5153658418

TIRE

24

5307656024

RIM

25

5153632954

VALVE

26

6460793000

WHEEL W/Ref. 27-29

27

5153638750

TIRE

28

5307610700

RIM

29

5153643505

VALVE

30

6460793500

WHEEL W/Ref. 31-33

31

5153661120

TIRE

32

5307610700

RIM

33

5153643505

VALVE

34

6460794000

WHEEL W/Ref. 35-37

35

5153628250

TIRE 15.5/55R18MPTPG7 134E 14PRTL

36

5307656024

RIM

37

5153628250

TIRE 15.5/55R18MPTPG7 134E 14PRTL

38

6460794500

WHEEL W/Ref. 39-41

39

5153658375

TIRE

40

5307610700

RIM

41

5153643505

VALVE

42

6460795000

WHEEL W/Ref. 43-45

43

5153621950

TIRE

44

5307656024

RIM

45

5153643505

VALVE

46

6460795500

WHEEL W/Ref. 47-49

47

5153632100

TIRE

48

5307656024

RIM

49

5153643505

VALVE

50

6460796000

WHEEL W/Ref. 51-53

51

5153661180

TIRE

52

5307656024

RIM

53

5153643505

VALVE

54

6460796500

WHEEL W/Ref. 57-59

55

5153658385

TIRE 335/80 R18XM27 139BTL

56

5307656024

RIM

57

5153643505

VALVE

58

6460797000

WHEEL W/Ref. 59-61

59

5153661137

TIRE

60

5307656024

RIM

61

5153661138

HOSE

62

6460797500

WHEEL W/Ref. 63-65

63

5153661145

TIRE

64

5307656024

RIM

65

5153643505

VALVE

66

6460798000

WHEEL W/Ref. 69-71

67

5153661300

RIM

68

5307656024

RIM

69

5153643505

VALVE

70

6451298500

WHEEL W/Ref. 71-73

71

5153665016

TIRE

72

5307656024

RIM

73

5153643505

VALVE

74

5153658431

TIRE MICHELIN 280/80 R18 XMCL AK7888

75

5307610700

RIM AK7888

76

5153643505

VALVE AK7888

77

5153658406

TIRE MICHELIN 340/80 R18 AK7888

78

5307656024

RIM AK7888

79

5153643505

VALVE AK7888
