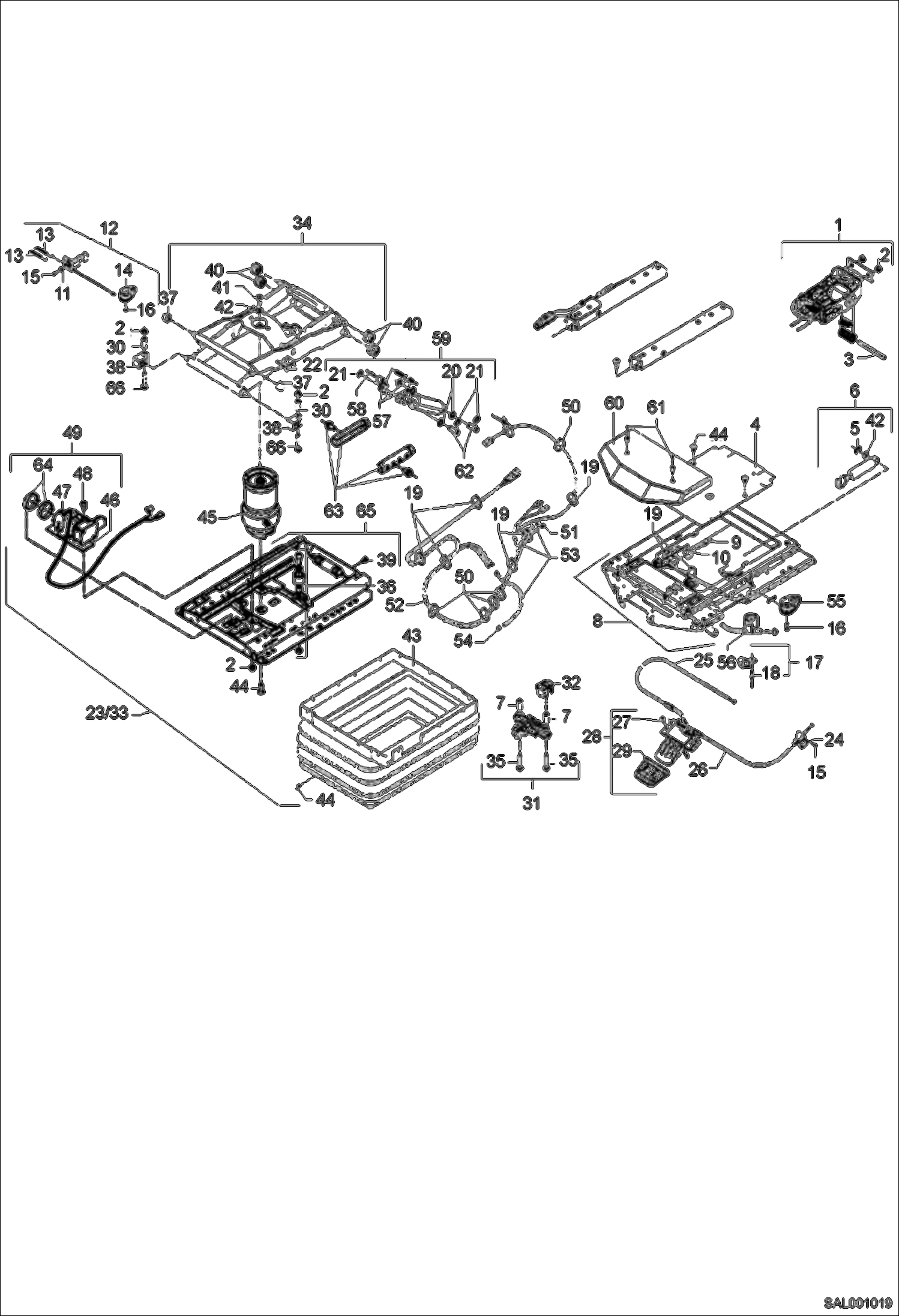

Запчасти Bobcat AL275 SEAT SUSPENSION - MSG 95 MAIN FRAME

1

5305670045

LEVEL CONTROL W/Ref. 2-3, 15, 19, 24, 39, 44, 50

2

NUT M 8

3

PIN

4

5305670046

COVER W/Ref. 44

5

5305670228

WASHER 6,0

6

5305670269

SHOCK ABSORBER CPL. W/Ref. 5, 42, 44

7

5305670048

BUSHING

8

5305670270

UPPER PART, CPL. W/Ref. 2, 10, 12, 18, 40, 44

9

1940000939

RIVET 4,8X15,5

10

5305670271

BUMPER CPL. W/Ref. 9

11

5305670209

WASHER 4,3

12

5305670272

STOP DEVICE CPL. W/Ref. 11, 13-15, 44

13

5305670273

TENSION SPRING

14

5305670164

HANDLE CPL W/Ref. 16

15

BOLT M16X65

16

5305670166

BOLT M 4X14

17

5305670167

STOP CPL W/Ref. 18, 44

18

5305670168

RIVET 4X16,9

19

BINDER

20

WASHER

21

5305670131

WASHER

22

5305670029

STOP

23

5305670274

WEAR PARTS SET W/Ref. 2, 7, 10, 18-19, 22, 30, 32, 36, 37, 38, 40, 41, 42, 44, 48, 50

24

BRACKET

25

5305670054

BOWDEN CABLE W/Ref. 27, 44

26

5305670055

CABLE ASSY W/Ref. 15, 25, 28, 51

27

5305670026

BOLT M 5X16

28

5305670056

CONTROL UNIT W/Ref. 27, 29, 44

29

5305670057

HANDLE

30

5305670171

PIPE

31

5305670275

SPRING CPL. W/Ref. 7, 10, 18, 30, 32, 35, 44

32

5305670059

BUMPER

33

5305670295

SUSPENSION

34

5305670226

ROCKER CPL W/Ref. 2, 18-22, 30, 37-38, 40, 41, 42, 44, 48, 50, 62

35

5305670279

BOLT M 8X30

36

5305670229

BUMPER CPL

37

5305670230

ROLLER

38

5305670175

BEARING

39

BOLT M 3.5X12

40

5305670062

TRACK ROLLER

41

BOLT M 3.5X12

42

WASHER

43

5305670063

COVERING W/Ref. 44

44

PLUG

45

5305670276

GAS STRUT CPL. W/Ref. 19, 41-42, 44, 54

46

RUBBER PAD

47

BOW

48

BOLT M 3.5X12

49

5305670277

COMPRESSOR CPL. W/Ref. 2, 19, 44, 46-48, 50, 54

50

BINDER

51

BUSH

52

5305670067

CABLE W/Ref. 19, 44, 50

53

5305670278

HOSE CPL. W/Ref. 19, 44, 50-51, 54

54

HOSE CLIP

55

5305670290

HANDLE W/Ref. 16, 18-19

56

5305670291

GUIDE

57

5305670292

SUPPORT W/Ref. 44

58

5305670293

BOWDEN CABLE

59

5305670294

SHOCK ABSORBER CPL. W/Ref. 20-21, 44, 57, 62

60

5305670181

COVER W/Ref. 61

61

5305670182

RIVET

62

PIN

63

5305670184

STOP

64

HOSE CLIP

65

5305670178

SEAT BOTTOM ASSY W/Ref. 2, 19, 38-41, 44, 48, 63, 66

66

PIN
