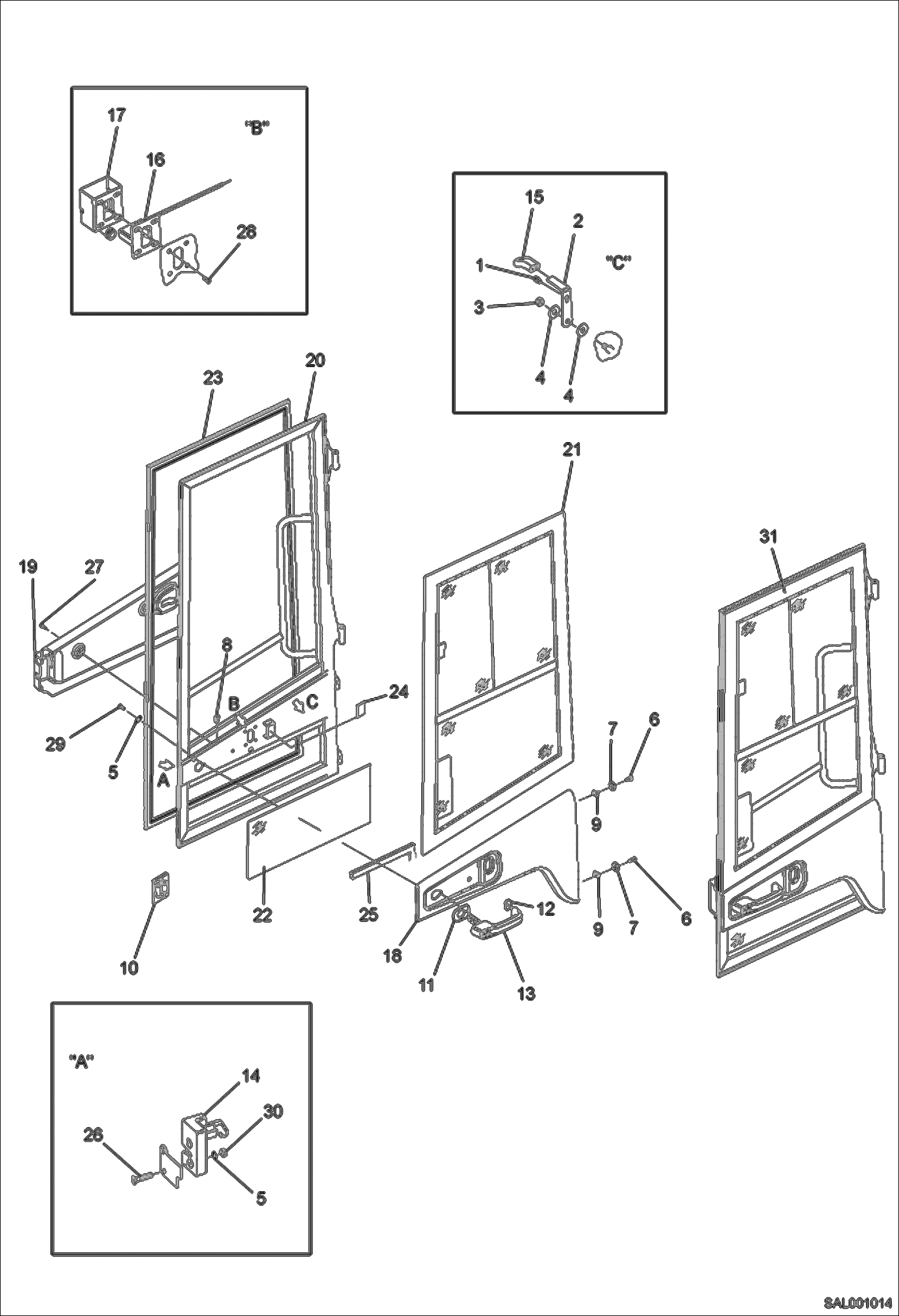

Запчасти Bobcat AL275 CAB-DOOR LEFT MAIN FRAME

1

5388662163

CLIP

2

5388665142

LEVER

3

5388665440

NUT M 8

4

1307707018

WASHER 8,4

5

1327707018

TOOTHED LOCK WASHER

6

5388665096

BOLT M 4,8X22

7

5388662047

WASHER

8

5388665102

CLIP

9

5388665192

CLIP

10

MCS008042A

KIT, WINDOW GLUE

11

5388665139

SEAL

12

5388665140

SEAL

13

5388665443

DOOR HANDLE

14

5388661474

LOCK, LEFT

15

5388662587

BUTTON,PLASTIC

16

5388662143

DOOR LOCKING

17

5388662222

HOUSING

18

5388665530

LINING, BOBCAT Was 5388665448 - B

19

5388665449

LINING

20

5388665450

DOOR FRAME

21

5388665451

SLIDING WINDOW

22

5103661354

PANE, DOOR Was 5388665452 - A

23

5388665146

SEAL DOOR

24

5388665453

SEAL

25

5388665137

SEAL

26

1008907019

BOLT M 8X40

27

1045707909

BOLT M5X16

28

5388665145

BOLT M5X16

29

1066707513

BOLT, M6X25

30

1210707011

NUT M8

31

5388665524

DOOR, LEFT CPL.
