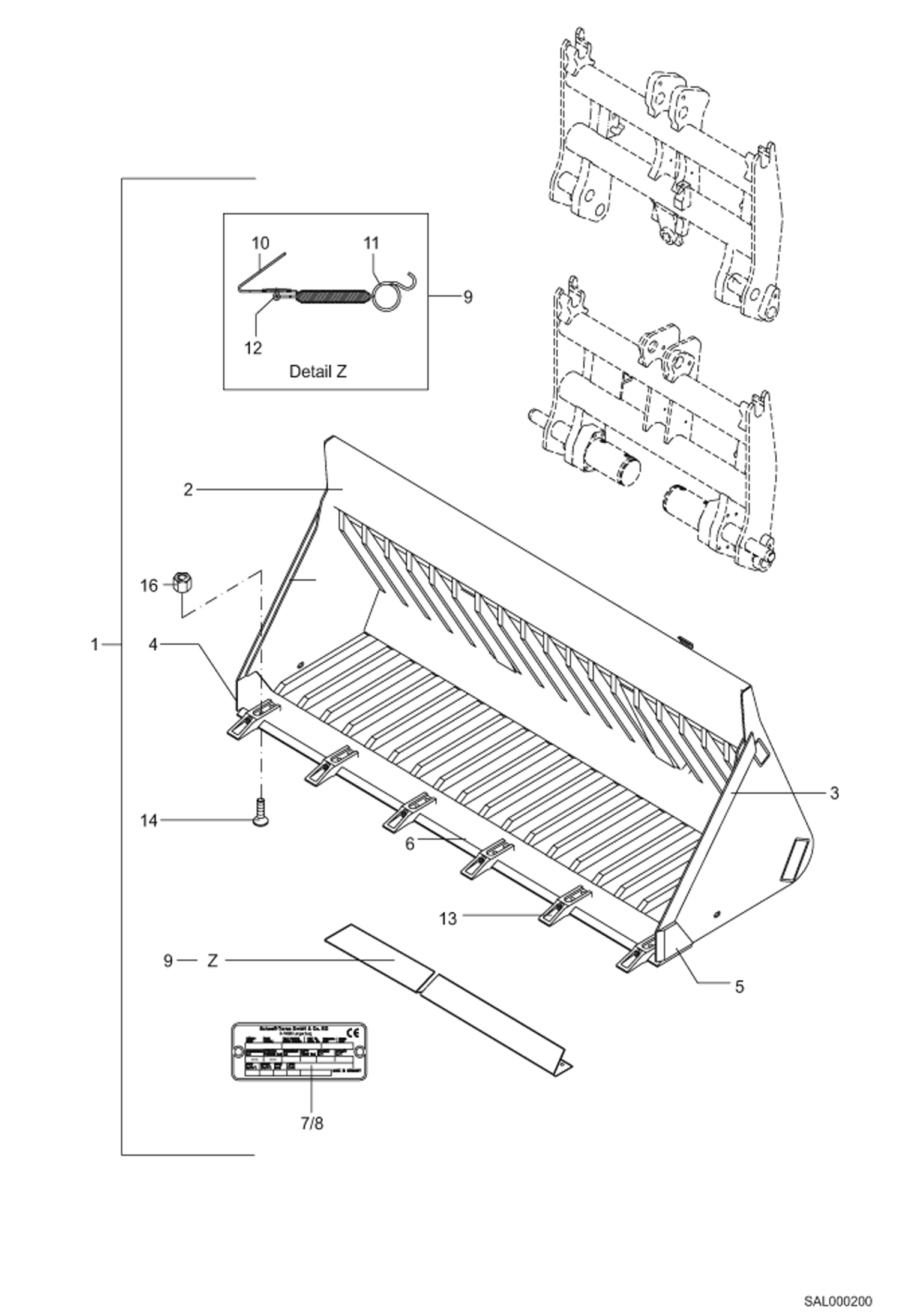

Запчасти Bobcat AL275 STONELOADING SHOVEL Навесное оборудование

1

6336230001

STONELOADING SHOVEL Includes Ref. 2 to 15

2

6336230001

STONELOADING SHOVEL Includes Ref. 3 to 6

3

6336230004

SIDE-STRIP

4

6278225010

CUTTING EDGE RIGHT

5

6278225011

CUTTING EDGE LEFT

6

0336701105

CUTTING EDGE

7

--

NAME PLATE

8

1940000739

RIVET

9

6452201030

TOOTH PROTECTION CPL. Includes Ref. 10 + 11 + 12

10

--

NAME PLATE

11

5249001010

SPRING

12

1395707827

COTTER PIN Was 5249001011 - A

13

5902647350

TOOTH

14

1062707230

BOLT

16

1212251014

NUT
