Запчасти Bobcat AL275 4 IN 1 SHOVEL CYLINDER Навесное оборудование

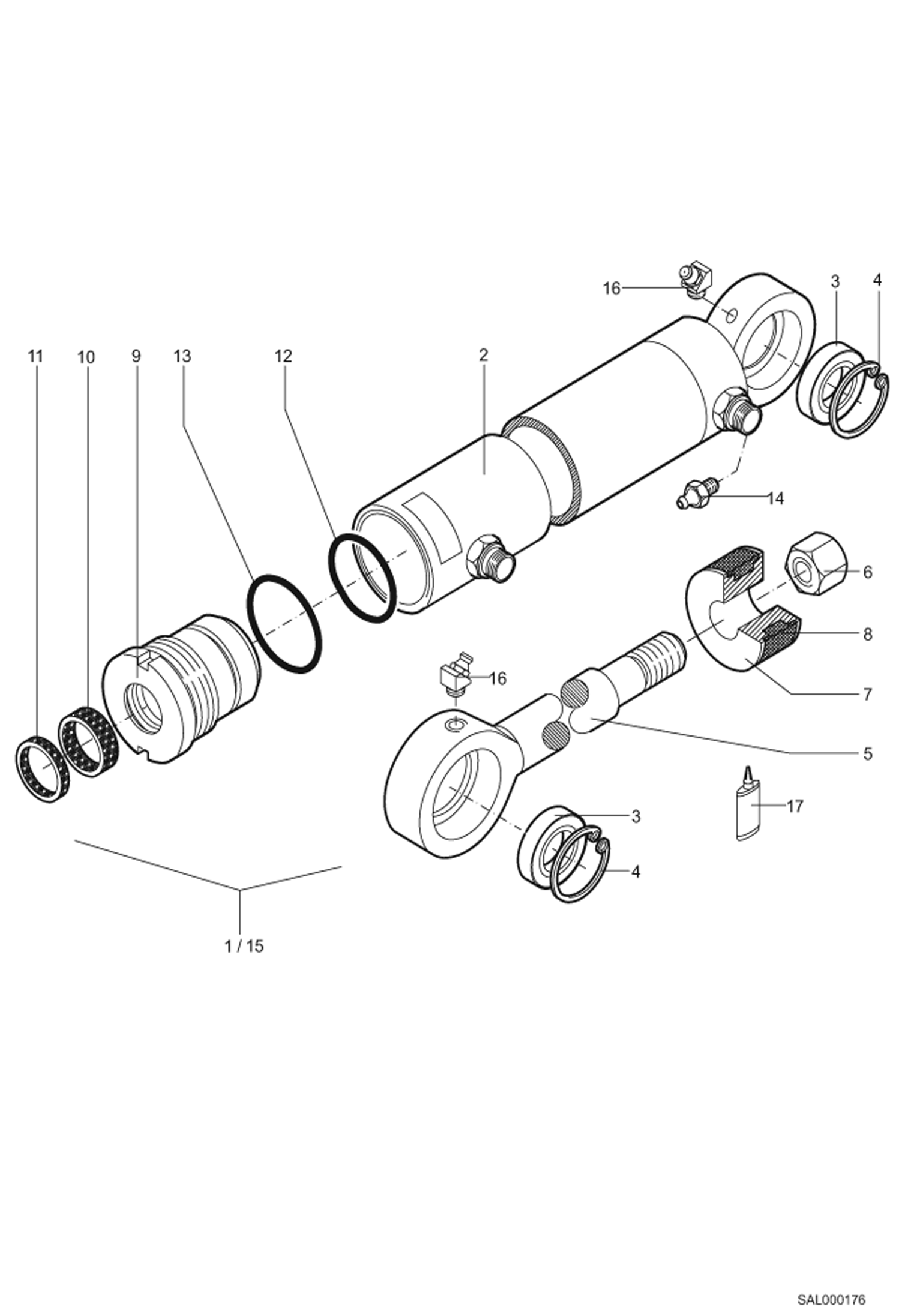

Схема запчастей Bobcat AL275 - 4 IN 1 SHOVEL CYLINDER Навесное оборудование

Артикул

Название

Примечание

Количество

1

6500405000

HYDRAULIC CYLINDER Includes Ref. 2 to 14

2

6500405003

PIPE

3

1950000810

LINKAGE BEARING

4

1456622149

CIRCLIP

5

6500405011

PISTON ROD Secure With LOCKTITE 242

6

1212251819

NUT

7

0500052015

PISTON

8

1634935249

PISTON SEAL

9

0500405017

PIERCING BUSHING

10

1965956303

ROD SEAL

11

1974955030

SCRAPER RING

12

1971958332

O-RING

13

1971958037

O-RING

14

1607003006

GREASE NIPPLE

15

1976999201

SEAL KIT Includes Ref. 6 + 8 + 10 to 13

16

1608003006

GREASE NIPPLE

17

MCS001035A

GLUE

Выбрано товаров: 17
