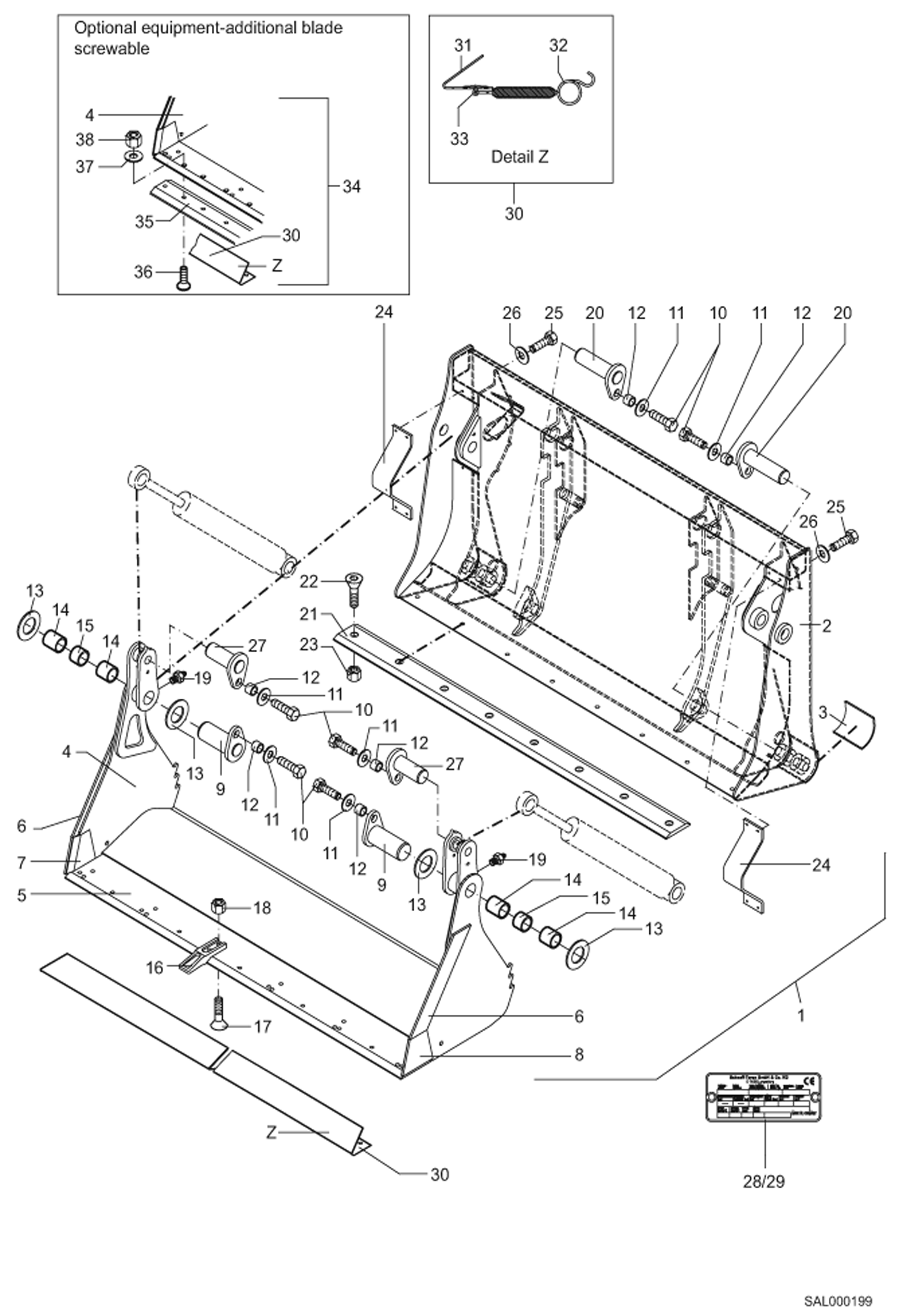

Запчасти Bobcat AL275 4 IN 1 SHOVEL Навесное оборудование

1

6322800000

4 IN 1 SHOVEL See Illustration 4 IN 1 SHOVEL HYDRAULIC INSTALLATION/ SAL000169 Includes Ref. 2 + 4 + 9 to 33

2

6322801001

REAR SHOVEL CPL. Includes Ref. 3

3

6322801025

SKID SHOE

4

6322802001

FRONT SHOVEL CPL. Includes Ref. 5 to 8

5

0460701005

CUTTING EDGE

6

6322802009

SIDE-STRIP

7

6393701023

CUTTING EDGE

8

6393701024

CUTTING EDGE

9

0333023030

PIN

10

1008707529

BOLT

11

1343707061

WASHER

12

0333023033

SPACER BUSHING

13

1309412725

SHIM

14

0159903056

BUSHING

15

6366203007

BUSHING

16

5902647350

TOOTH

17

1062707230

BOLT

18

1212251014

NUT

19

1608003010

GREASE NIPPLE

20

6157709042

PIN

21

0322803010

BOLT-ON CUTTING EDGE

22

1062707036

BOLT

23

1212251015

NUT

24

6323003014

BRACKET

25

1008707018

BOLT

26

1343707057

WASHER

27

0366204110

PIN

28

- -

NAME PLATE

29

1940000739

RIVET

30

6451201030

TOOTH PROTECTION CPL. Includes Ref. 10 + 11 + 12

31

--

NAME PLATE

32

5249001010

SPRING

33

1395707827

COTTER PIN Was 5249001011 - A

34

6322900000

4 IN 1 SHOVEL WITH BOLT See Illustration 4 IN 1 SHOVEL HYDRAULIC INSTALLATION/ SAL000169 Includes Ref. 2 to 15 + 19 to 33 + 34 + 38

35

0460202102

BOLT-ON CUTTING EDGE

36

1062707236

BOLT

37

1290707025

WASHER

38

1212251015

NUT
