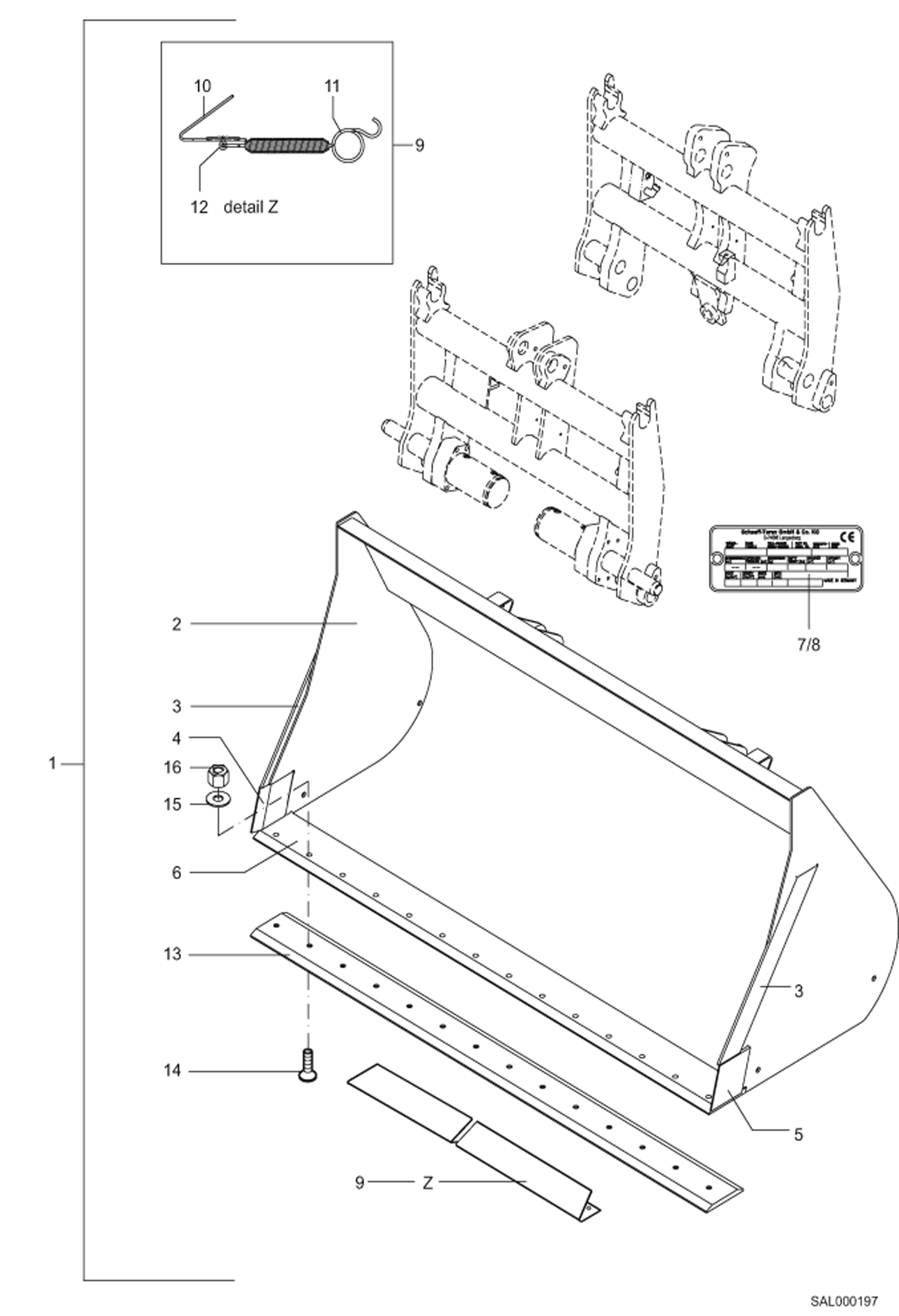

Запчасти Bobcat AL275 LIGHT MATERIAL BUCKET Навесное оборудование

1

6451209000

LIGHT MATERIAL BUCKET Includes Ref. 2 to 15

2

6451209001

LIGHT MATERIAL BUCKET Includes Ref. 3 to 6

3

6397201004

SIDE-STRIP

4

0451201023

CUTTING EDGE RIGHT

5

0451201024

CUTTING EDGE LEFT

6

0451209005

CUTTING EDGE

7

--

NAME PLATE

8

1940000739

RIVET

9

6452201030

TOOTH PROTECTION CPL. Includes Ref. 10 + 11 + 12

10

--

NAME PLATE

11

5249001010

SPRING

12

1395707827

COTTER PIN Was 5249001011 - A

13

6452202002

BOLT-ON CUTTING EDGE

14

1062707236

BOLT

15

1290707025

WASHER

16

1212251015

NUT
