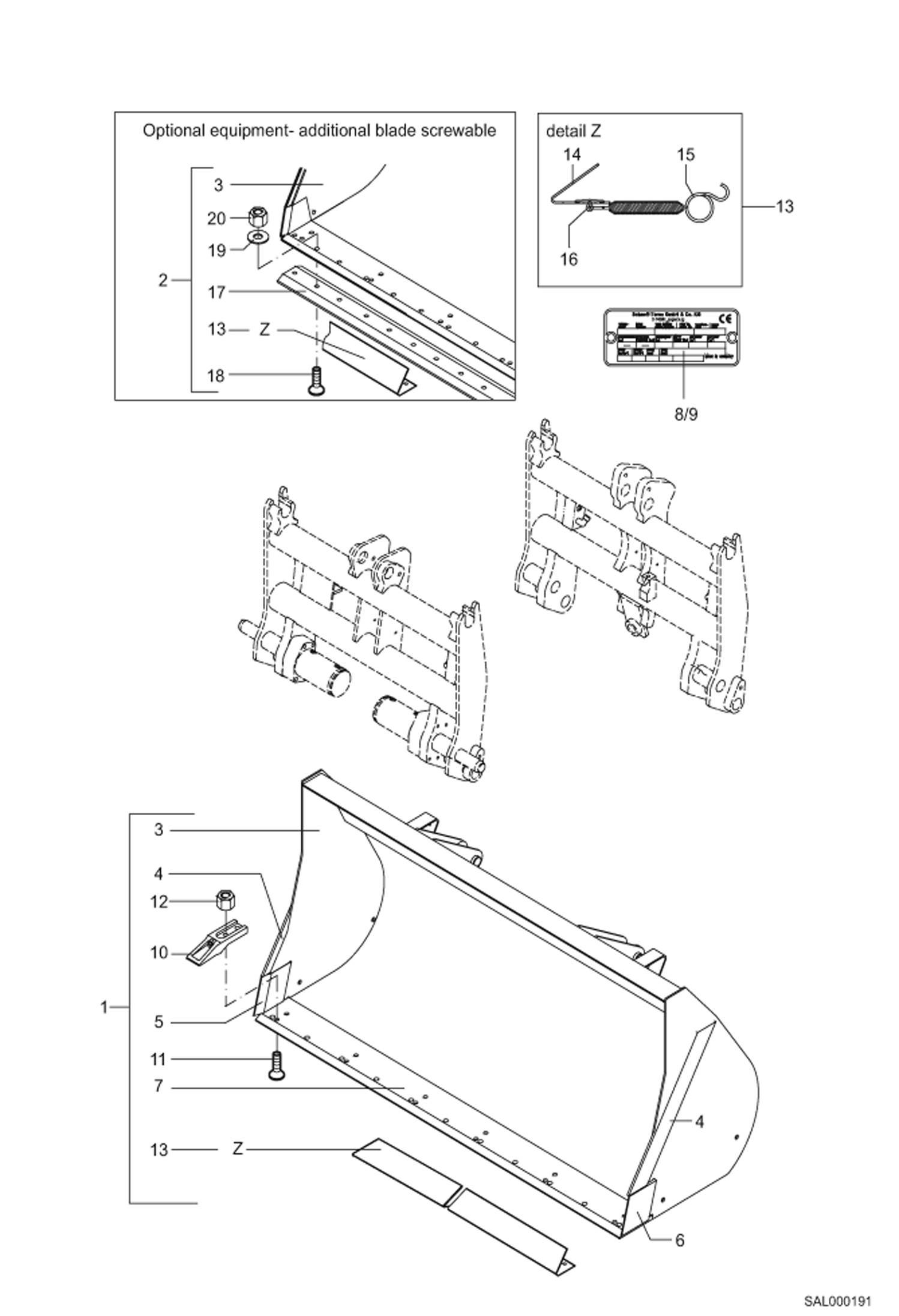

Запчасти Bobcat AL275 LOADING SHOVEL Навесное оборудование

1

6451201000

LOADING SHOVEL 1700MM Includes Ref. 3 to 16

2

6451202000

LOADING SHOVEL Includes Ref. 3 to 9, 13 to 20

3

6451201001

LOADING SHOVEL 1700MM Includes Ref. 4 to 7

4

6396201004

SIDE-STRIP

5

0451201023

CUTTING EDGE RIGHT

6

0451201024

CUTTING EDGE LEFT

7

6460701005

CUTTING EDGE

8

--

NAME PLATE

9

1940000739

RIVET

10

5902647350

TOOTH

11

1062707230

BOLT

12

1212251014

NUT

13

6451201030

TOOTH PROTECTION CPL. Includes Ref. 14 + 15 + 16

14

--

NAME PLATE

15

5249001010

SPRING

16

1395707827

COTTER PIN Was 5249001011 - A

17

0460202102

BOLT-ON CUTTING EDGE

18

1062707236

BOLT

19

1290707025

WASHER

20

1212251015

NUT
