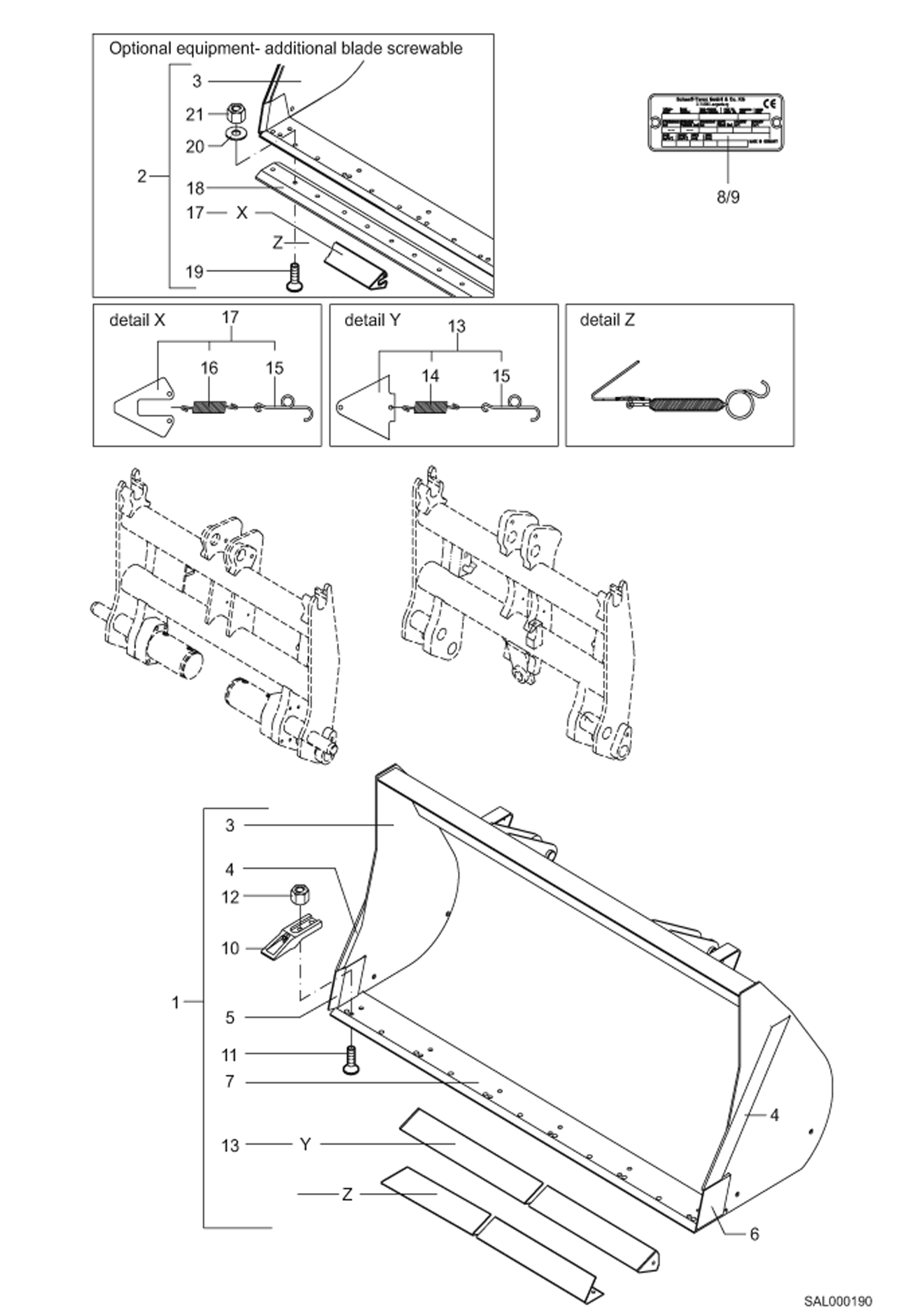

Запчасти Bobcat AL275 LOADING SHOVEL 1700MM0,65CBM Навесное оборудование

1

6451201000

LOADING SHOVEL 1700MM Includes Ref. 3 to 15

2

6451202000

LOADING SHOVEL Includes Ref. 3 to 9 + 15 to 21

3

6451201001

LOADING SHOVEL 1700MM Includes Ref. 4 to 7

4

6396201004

SIDE-STRIP

5

0451201023

CUTTING EDGE RIGHT

6

0451201024

CUTTING EDGE LEFT

7

6460701005

CUTTING EDGE

8

--

NAME PLATE

9

1940000739

RIVET

10

5902647350

TOOTH

11

1062707230

BOLT

12

1212251014

NUT

13

6460701023

TOOTH PROTECTION Includes Ref. 14 + 15

14

5064180710

SPRING

15

0273114008

HOOK

16

0271422004

SPRING

17

6322904020

TOOTH PROTECTION Includes Ref. 15 + 16

18

0460202102

BOLT-ON CUTTING EDGE

19

1062707236

BOLT

20

1290707025

WASHER

21

1212251015

NUT
