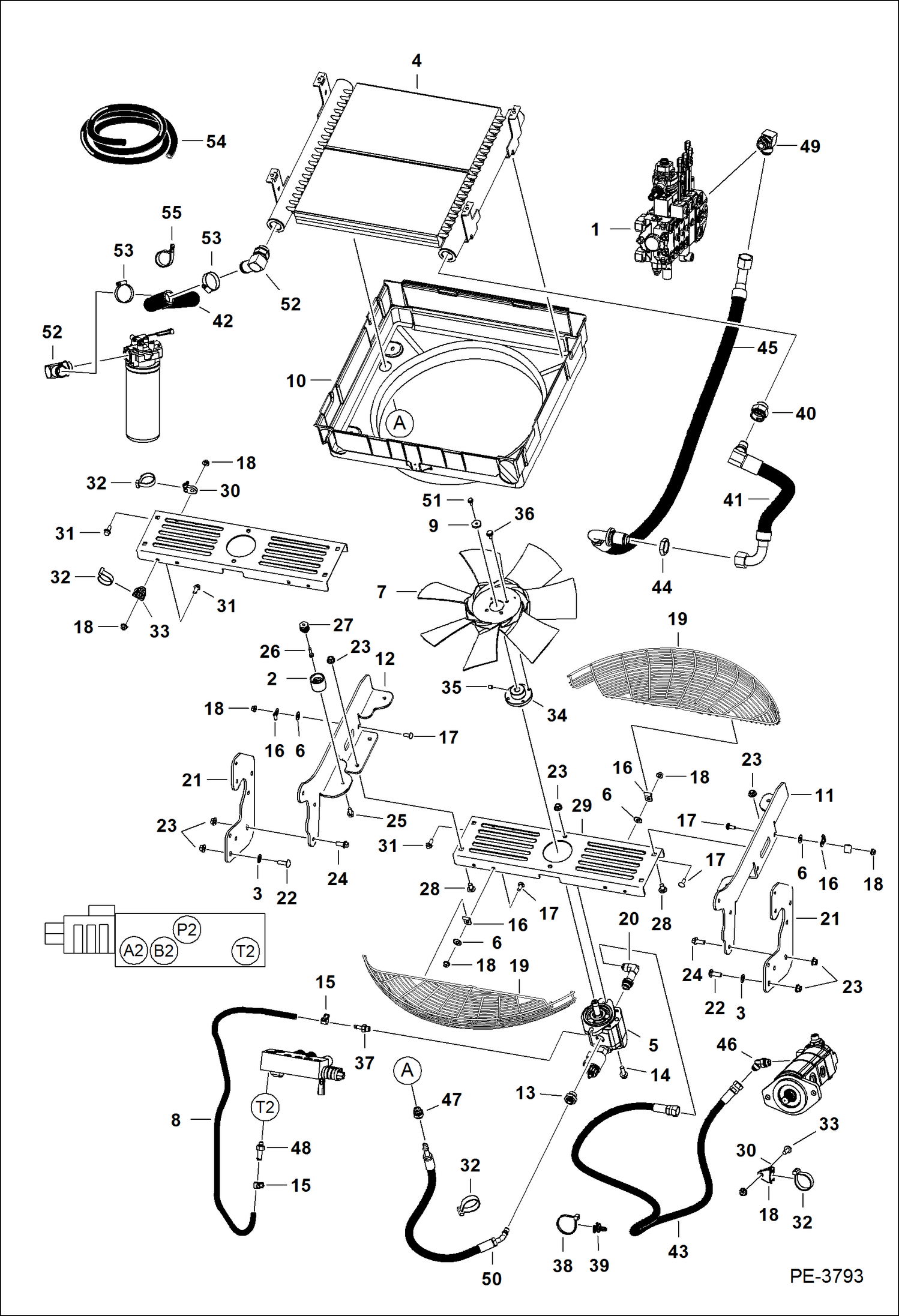

Запчасти Bobcat 5610 HYDROSTATIC CIRCUITRY (Rear Cooling) HYDROSTATIC SYSTEM

1

VALVE CONTROL STD See Illustration WORK VALVE/ MS2292 - standard flow

1

VALVE CONTROL HF See Illustration WORK VALVE/ MS2293 - high flow

2

6675386

SOCKET

3

6674264

RETAINER NUT

4

6688369

EXCHANGER

5

MOTOR, FAN See Illustration HYDRAULIC FAN MOTOR/ MS1464

6

6675859

RETAINER

7

6690484

FAN ASSY

8

HOSE NLA - 1193.8 mm (47'') long - Order Ref. 54

9

6814553

WASHER

10

7112326

SHROUD

11

7117142

SUPPORT R.H.

12

7117143

SUPPORT L.H.

13

10L0810

CONNECTOR

13

78K10

O RING

14

29CM1030

BOLT

15

5HM14

CLAMP

16

30H12

CLIP

17

28CM820

BOLT

18

51DM8

NUT

19

7163148

GUARD, FAN

20

6519195

ELBOW

20

79K10

O RING 10

21

7147617

BRACKET

22

28CM1030

BOLT

23

51DM10

NUT

24

29CM1025

BOLT

25

35C512

BOLT

26

17C416

BOLT

27

6675385

PLUG

28

28CM1020

BOLT

29

7163218

MOUNT, MOTOR ASSY

30

6679034

MOUNT

31

29CM820

SCREW

32

6678669

STRAP

33

6678818

MOUNT

34

7127941

HUB

35

15G506

SCREW

36

29CM816

SCREW

37

7164847

FITTING

37

79K6

O RING 10

38

6624289

STRAP, TIE

39

7015668

MOUNT, STRAP TIE push in - Use W/tie strap - Was 6678666 - B

40

10L1616

CONNECTOR JT

40

78K16

O'RING

41

7126006

HOSE

42

7165470

HOSE, HYD FORMED

43

7163262

HOSE

44

86F10

NUT

45

7195196

HOSE, HYD Was 7120541 - A

46

7139685

FITTING

46

79K8

O RING 10

47

10L0808

FITTING, HYD CONNECTOR

47

78K8

O RING

48

6734090

ADAPTER

48

79K4

O RING 10

49

17KB1612

FITTING, HYD ELBOW

49

79K12

O RING 10

50

7126015

HOSE

51

29CM616

BOLT

52

6729306

ELBOW

52

79K16

O RING 10

53

42HL200

CLAMP, HOSE Was 5HM40 - B

54

6577822

HOSE bulk - sold per foot

55

30H82

CLAMP INSULATED
