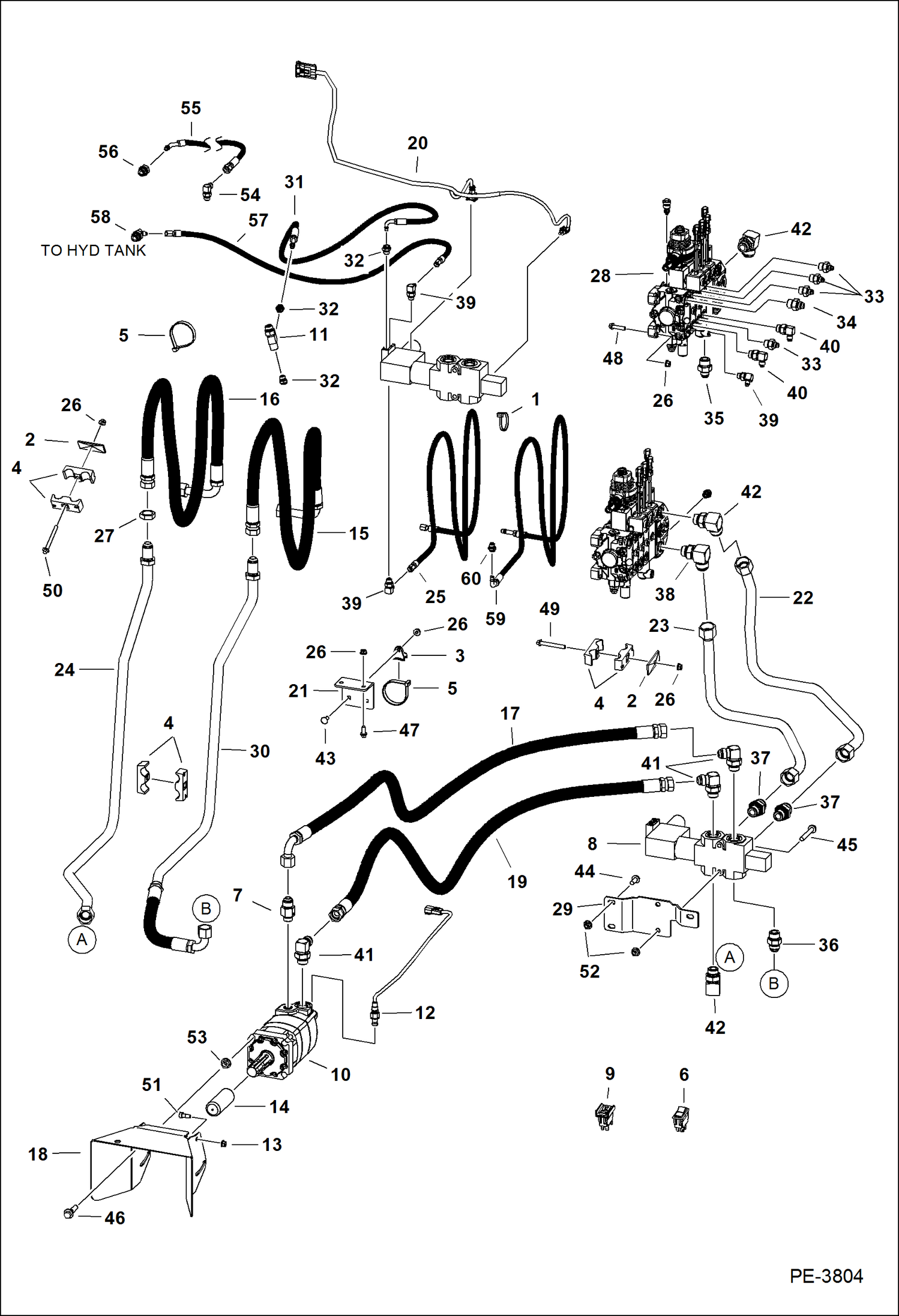

Запчасти Bobcat 5610 AUX PTO HYDRAULIC SYSTEM

1

6624289

STRAP, TIE

2

6653493

COVER

3

6678818

MOUNT

4

6679025

CLAMP 2

5

6685156

RETAINER

6

6685696

SWITCH, ROCKER FLOW HIGH

7

6687012

CHECK VALVE

8

6687192

VALVE DIVERTER See Illustration DIVERTER VALVE/ MS2215

9

6696941

SWITCH, ROCKER PTO

10

6698482

MOTOR, PTO

11

6813939

TEE

11

79K8

O RING 10

12

7001486

SENSOR, SPEED

13

97D5

NUT

14

7108542

COVER SHAFT

15

7115278

HOSE ASSY

16

7115279

HOSE ASSY

17

7200982

HOSE, HYD Was 7129750 - A

18

7147531

SHIELD, EQUIP

19

7200981

HOSE, HYD Was 7198048 - A

20

7151439

HARNESS, VALVE

21

7151521

BRACKET, CLAMP HOSE

22

7151523

TUBELINE, HYD

23

7151524

TUBELINE, HYD

24

7151526

TUBELINE, HYD

25

7165749

HOSE, HYD ASSY Was 7156610 - B

26

51DM8

NUT

27

86F8

NUT 5

28

6688854

VALVE CONTROL STD See Illustration WORK VALVE/ MS2292

28

VALVE CONTROL HF See Illustration WORK VALVE/ MS2293

29

7161377

MOUNT, VALVE

30

7164740

TUBELINE, HYD

31

7164845

HOSE

32

10L0606

FITTING, HYD CONNECTOR

32

7011053

CLIP

32

78K6

O'RING

33

15KB0608

FITTING, HYD CONNECTOR

33

79K8

O RING 10

34

15KB0810

FITTING, HYD CONNECTOR

34

79K10

O RING 10

35

15KB1012

FITTING, HYD CONNECTOR

35

79K12

O RING 10

36

15KB1212

FITTING, HYD CONNECTOR

36

79K12

O RING 10

37

15KB1612

FITTING, HYD CONNECTOR

37

79K12

O RING 10

38

15KB0406

FTG HYD S CONNECTOR

38

79K6

O RING 10

39

17KB0606

FITTING

39

17KB0406

FITTING, HYD ELBOW

39

79K6

O RING 10

40

17KB0608

FITTING, HYD ELBOW

40

79K8

O RING 10

41

17KB1212

FITTING, HYD ELBOW

41

79K12

O RING 10

42

17KB1612

FITTING, HYD ELBOW

42

79K12

O RING 10

43

28CM820

BOLT

44

29CM1025

BOLT

45

29CM1070

BOLT

46

29CM1245

SCREW

47

29CM820

SCREW

48

29CM835

BOLT

49

29CM870

BOLT

50

29CM880

BOLT

51

38C606

BOLT

52

51DM10

NUT

53

51DM12

NUT

54

17KB0606

FITTING

55

7156611

HOSE, HYD ASSY

56

10L0608

FITTING, HYD CONNECTOR

57

7106595

HOSE

58

18KB0408

FITTING, HYD ELBOW

59

7156610

HOSE, HYD ASSY

60

10L0606

FITTING, HYD CONNECTOR
