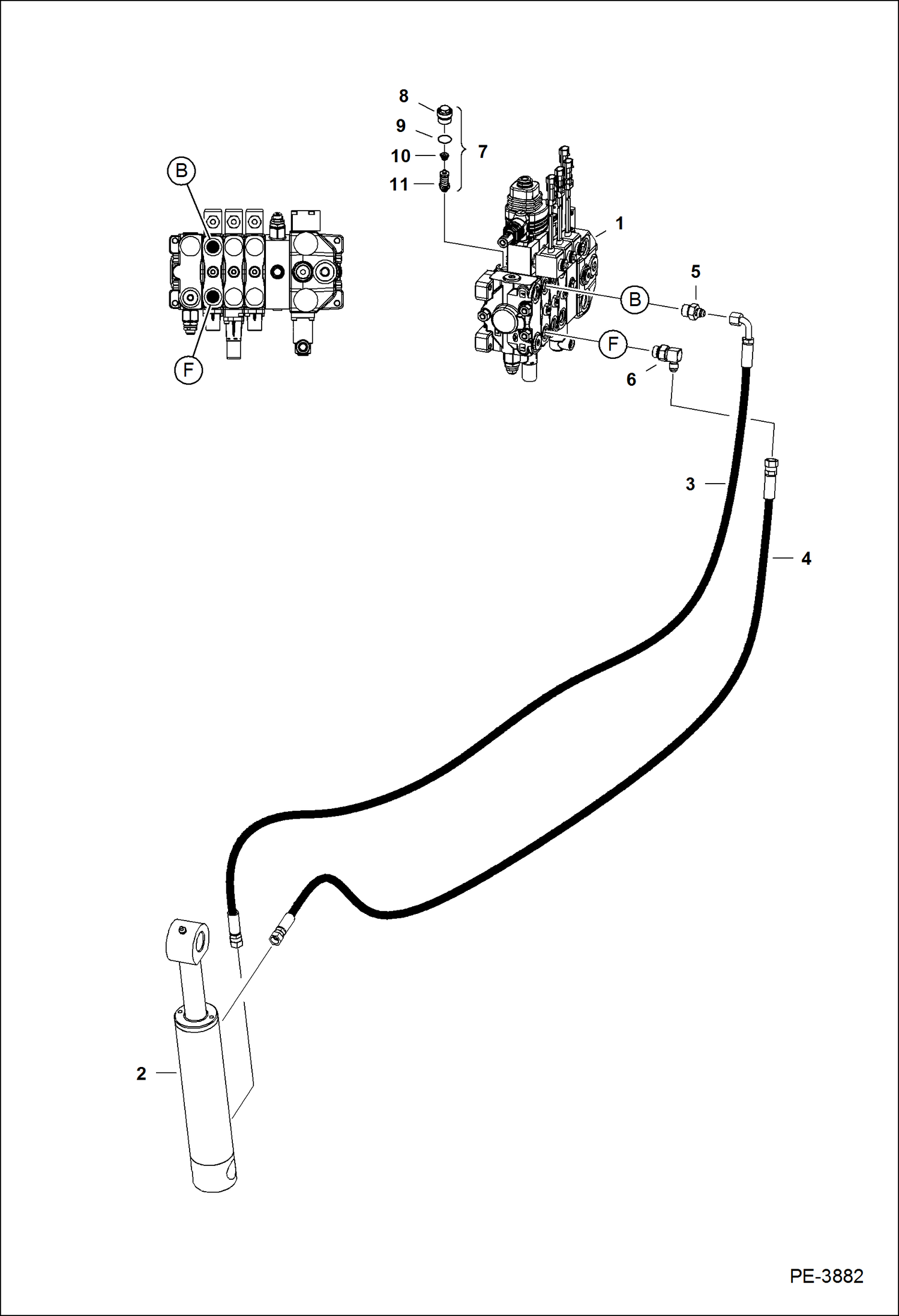

Запчасти Bobcat 5610 HYDRAULIC CIRCUITRY (3 PT Lift) HYDRAULIC SYSTEM

1

VALVE CONTROL STD See Illustration WORK VALVE/ MS2292 - standard flow

1

VALVE CONTROL HF See Illustration WORK VALVE/ MS2293 - high flow

2

CYLINDER, LIFT See Illustration 3 PT LIFT CYLINDER/ PE3739 - 3 pt arms

3

7147777

HOSE, HYD

4

7147778

HOSE, HYD

5

15KB0608

FITTING, HYD CONNECTOR

5

79K8

O RING 10

6

17KB0608

FITTING, HYD ELBOW

6

79K8

O RING 10

7

6685304

VALVE port relief

8

6686241

PLUG

9

O-RING NSS

10

SPRING NSS

11

VALVE NSS
