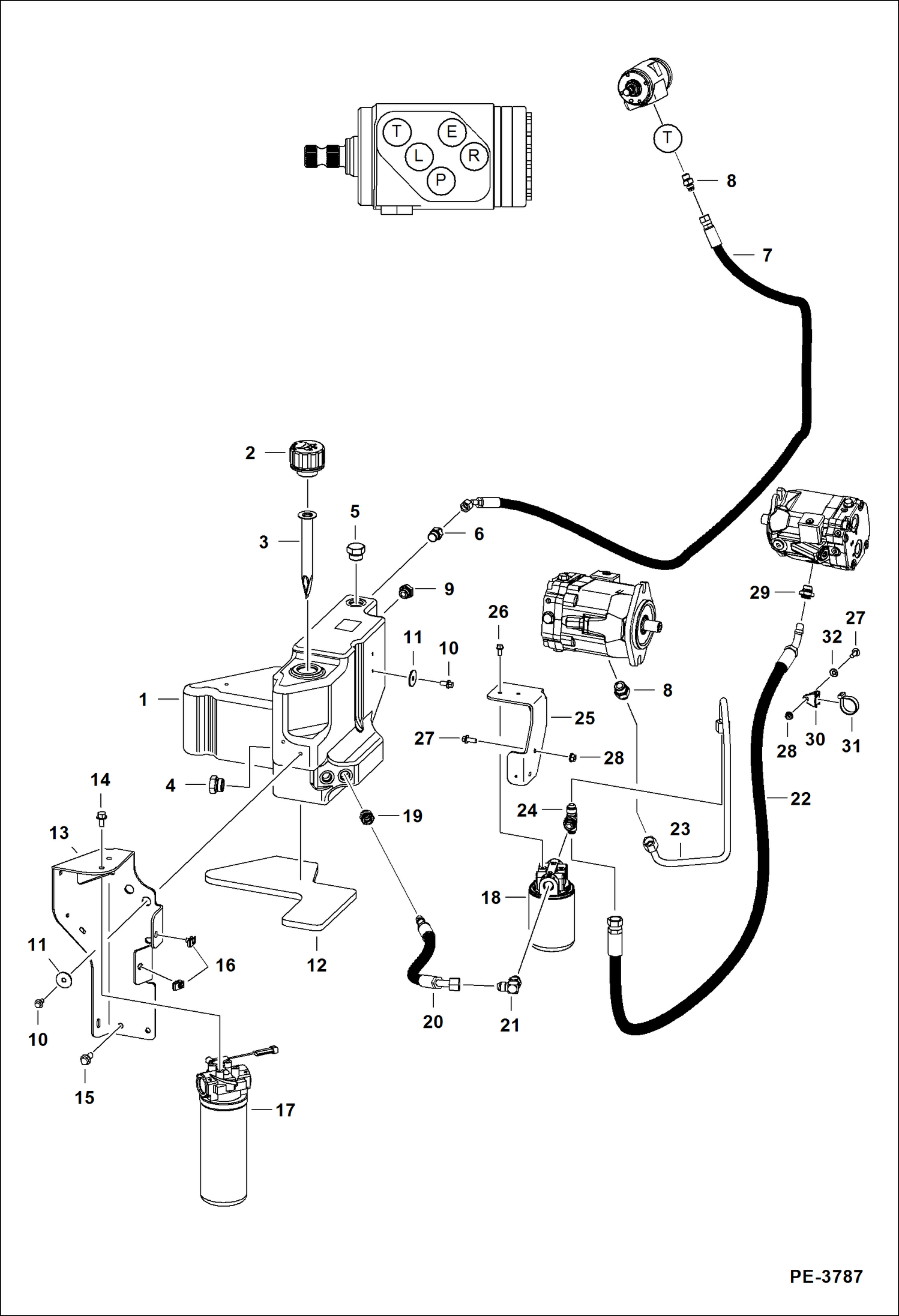

Запчасти Bobcat 5610 HYDRAULIC CIRCUITRY (Tank) (A7Y711001 - 12016) HYDRAULIC SYSTEM

1

7116526

TANK

2

6692836

CAP, HYDRAULIC TANK

3

7128723

SCREEN

4

6665915

GAUGE

4

79K12

O RING 10

5

24K8

PLUG

5

79K12

O RING 10

6

7001665

VALVE, CHECK

6

79K8

O RING 10

7

7158240

HOSE, HYD ASSY

8

15KB0606

FITTING, HYD CONNECTOR

8

79K6

O RING 10

9

24K6

FITTING

9

79K8

O RING 10

10

29CM816

SCREW

11

6817775

WASHER

12

7121565

INSULATION

13

7120501

BRACKET

14

35C612

BOLT

15

29CM1025

BOLT

16

6676169

NUT

17

6679592

FILTER ASSY

17

6668819

FILTER, OIL HYD 9.5'' (241,3 mm) long

18

6686217

FILTER ASSY

18

6516722

FILTER

19

10L0808

FITTING, HYD CONNECTOR

19

78K8

O RING

20

7121636

HOSE

21

17KB0808

FITTING, HYD ELBOW

21

79K8

O RING 10

22

7121634

HOSE

23

7138120

TUBELINE

24

19KB0808

Fitting Hydraulic Branch Tee

24

79K8

O RING 10

25

7147794

BRACKET

26

35C410

BOLT 5

27

29CM820

SCREW

28

51DM8

NUT

29

10L0810

CONNECTOR

29

78K10

O RING

30

6678818

MOUNT

31

6624289

STRAP, TIE

32

6675859

RETAINER
