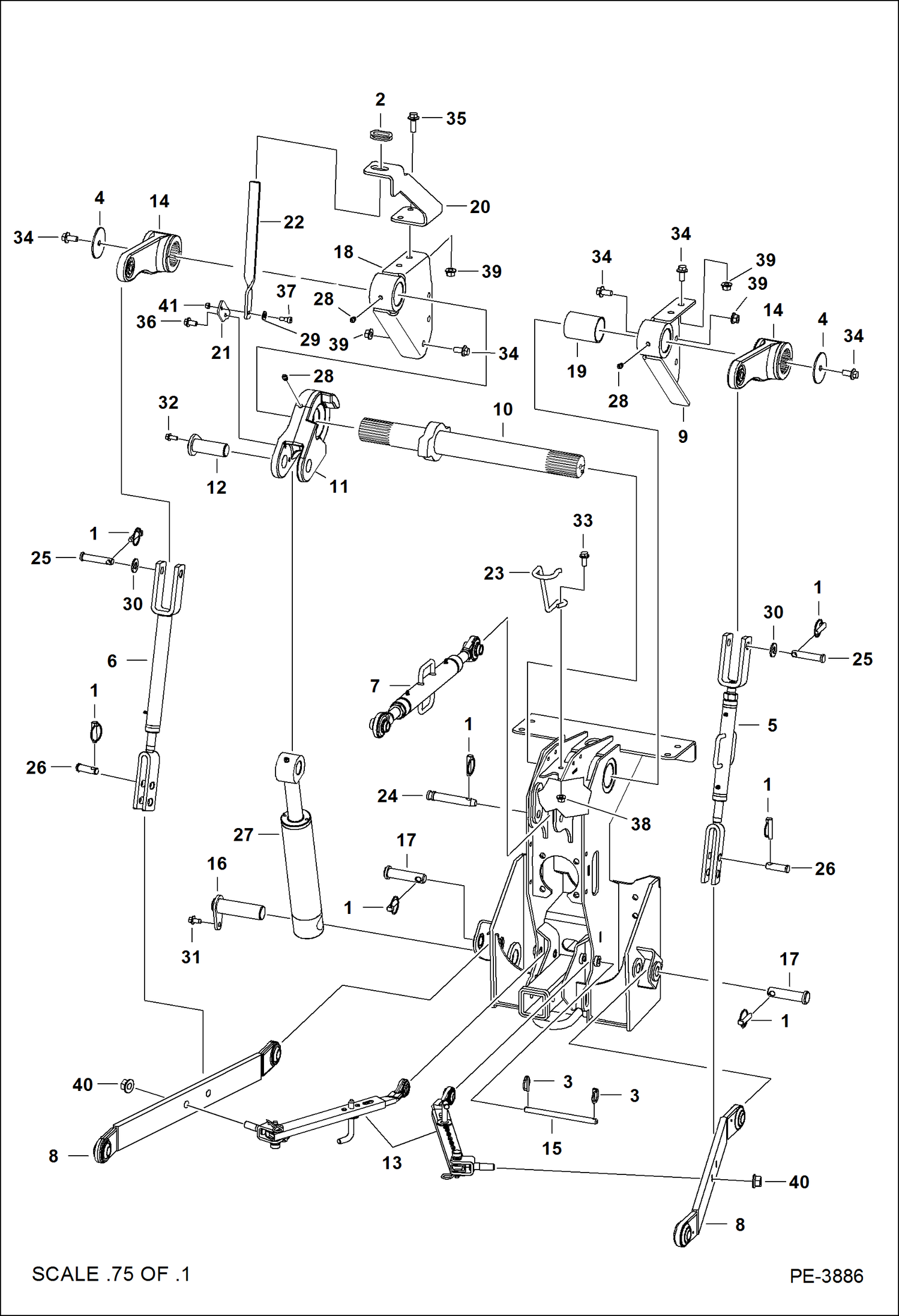

Запчасти Bobcat 5610 HITCH (3 PT) MAIN FRAME

1

6560382

PIN, LOCK

2

6577961

GROMMET

3

6649706

PIN

4

6705106

WASHER

5

7145485

ROD, LIFT

6

7145486

ROD, LIFT

7

7145487

LINK, TOP

8

7145488

LINK, LOWER

9

7145835

BRACKET, PIVOT

10

7146047

SHAFT

11

7146051

LINK

12

7146170

PIN

13

7146421

STABILIZER

14

7146655

LIFT ARM

14

7149963

BALL, STEEL replacement

15

7146676

PIN

16

7146685

PIN

17

7149215

PIN

18

7150882

BRACKET, PIVOT

19

7152918

COVER, SHAFT

20

7156427

BRACKET, INDICATOR

21

7156428

MOUNT, INDICATOR

22

7156429

LINK, INDICATOR

23

7156447

HOLDER, LINK TOP

24

7156741

PIN, LINK TOP

25

7156742

PIN

26

7156743

PIN

27

CYLINDER, LIFT See Illustration 3 PT LIFT CYLINDER/ PE3739

28

10H25

FITTING, GREASE 5

29

25E17

WASHER 5

30

25E25

WASHER 10

31

26GM10020

BOLT

32

29CM1020

BOLT

33

29CM1025

BOLT

34

29CM1225

BOLT

35

29CM1235

BOLT

36

29CM820

SCREW

37

38C606

BOLT

38

51DM10

NUT

39

51DM12

NUT

40

84D10

LOCKNUT

41

85D5

NUT 5
