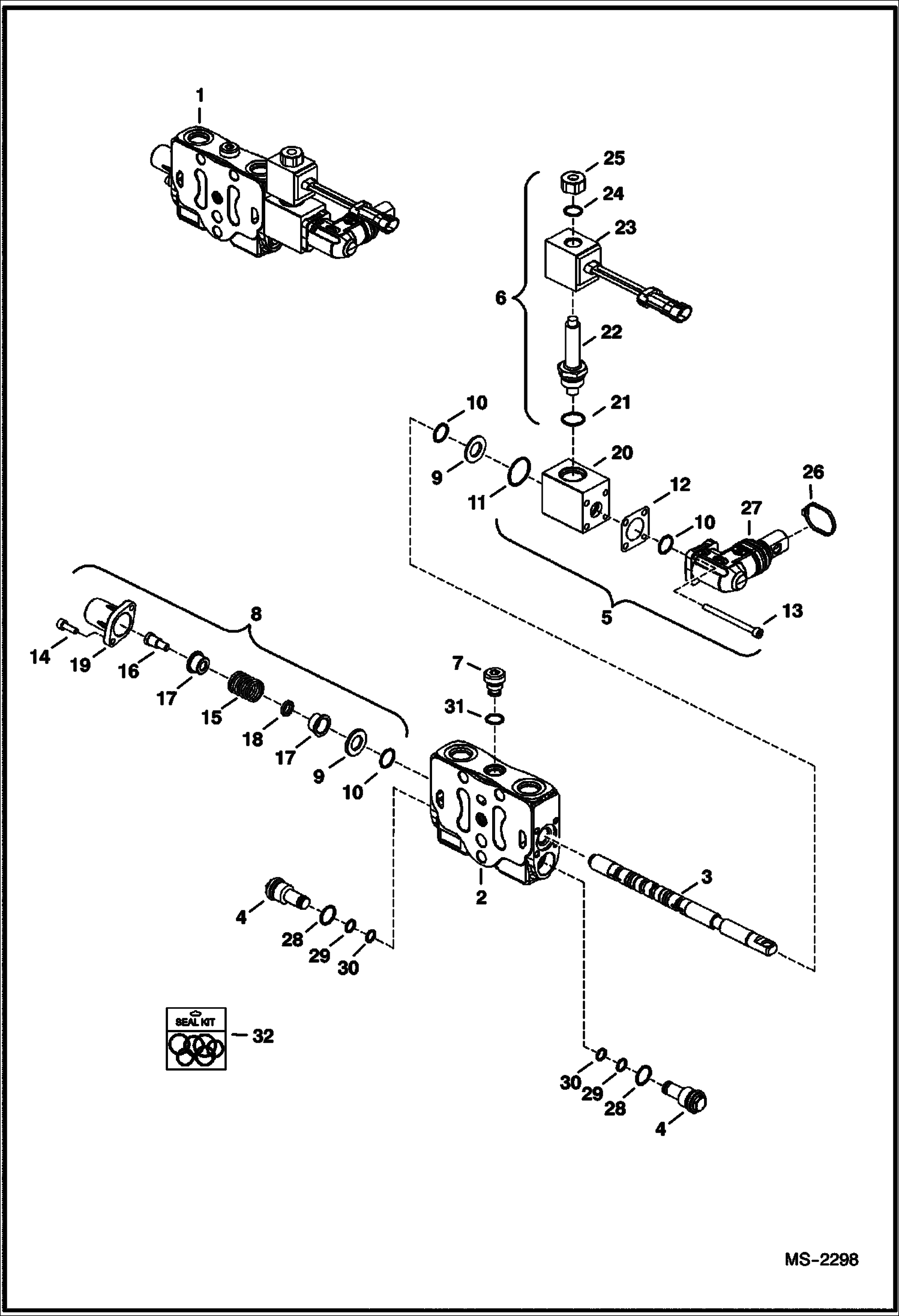

Запчасти Bobcat 5610 VALVE SECTION (3 Pt.) HYDRAULIC SYSTEM

1

6691179

VALVE box - Ref. 2-32

2

BODY NSS

3

SPOOL NSS

4

6686233

PLUG W/Ref. 28-30

5

6691198

CAP KIT Ref. 10, 12, 13, & 20-27

6

6691199

SOLENOID W/ Ref. 21, 22, 24 & 25

7

6680092

VALVE, LOCK LOAD

8

6691200

CAP KIT Ref. 9, 10 & 14-19

9

6680095

WASHER

10

O-RING NSS

11

6679604

O-RING

12

GASKET NSS

13

SCREW NSS

14

SCREW NSS

15

6679721

KIT

16

SCREW

17

BUSHING NSS

18

RING NSS

19

VALVE NSS

19

CAP NSS

20

CAP NSS

21

O-RING NSS

22

STEM NSS

23

6691203

COIL 12v

24

6691186

O-RING

25

6691185

NUT

26

TIE NSS

27

CAP NSS

28

O-RING NSS

29

O-RING NSS

30

BACKUP NSS

31

O-RING NSS

32

6691190

SEAL KIT valve section - Ref. 10-12, 21 & 28-31
