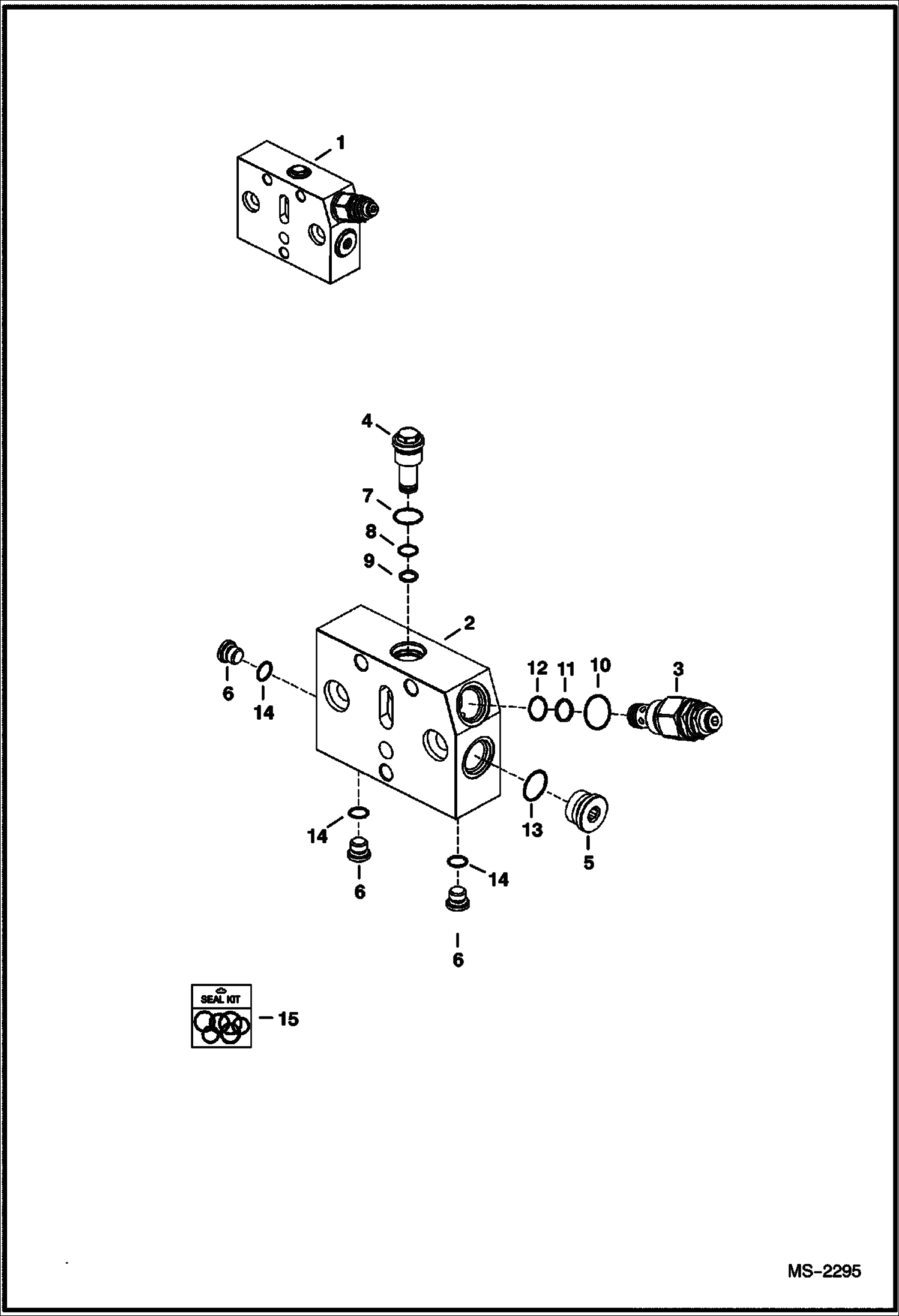

Запчасти Bobcat 5610 VALVE SECTION (Std Flow) HYDRAULIC SYSTEM

1

6691184

VALVE std flow - Ref. 2-14

2

BODY NSS

3

6686238

VALVE relief - W/Ref. 10-12

4

6686233

PLUG W/Ref. 7-9

5

6679629

PLUG W/Ref. 13

6

6686236

PLUG W/Ref. 14

7

O-RING NSS

8

O-RING NSS

9

BACKUP NSS

10

O-RING NSS

11

BACKUP NSS

12

O-RING NSS

13

O-RING NSS

14

O-RING NSS

15

6691195

SEAL KIT valve section - Ref. 7-14
