Запчасти Bobcat 5600 FUEL SYSTEM POWER UNIT

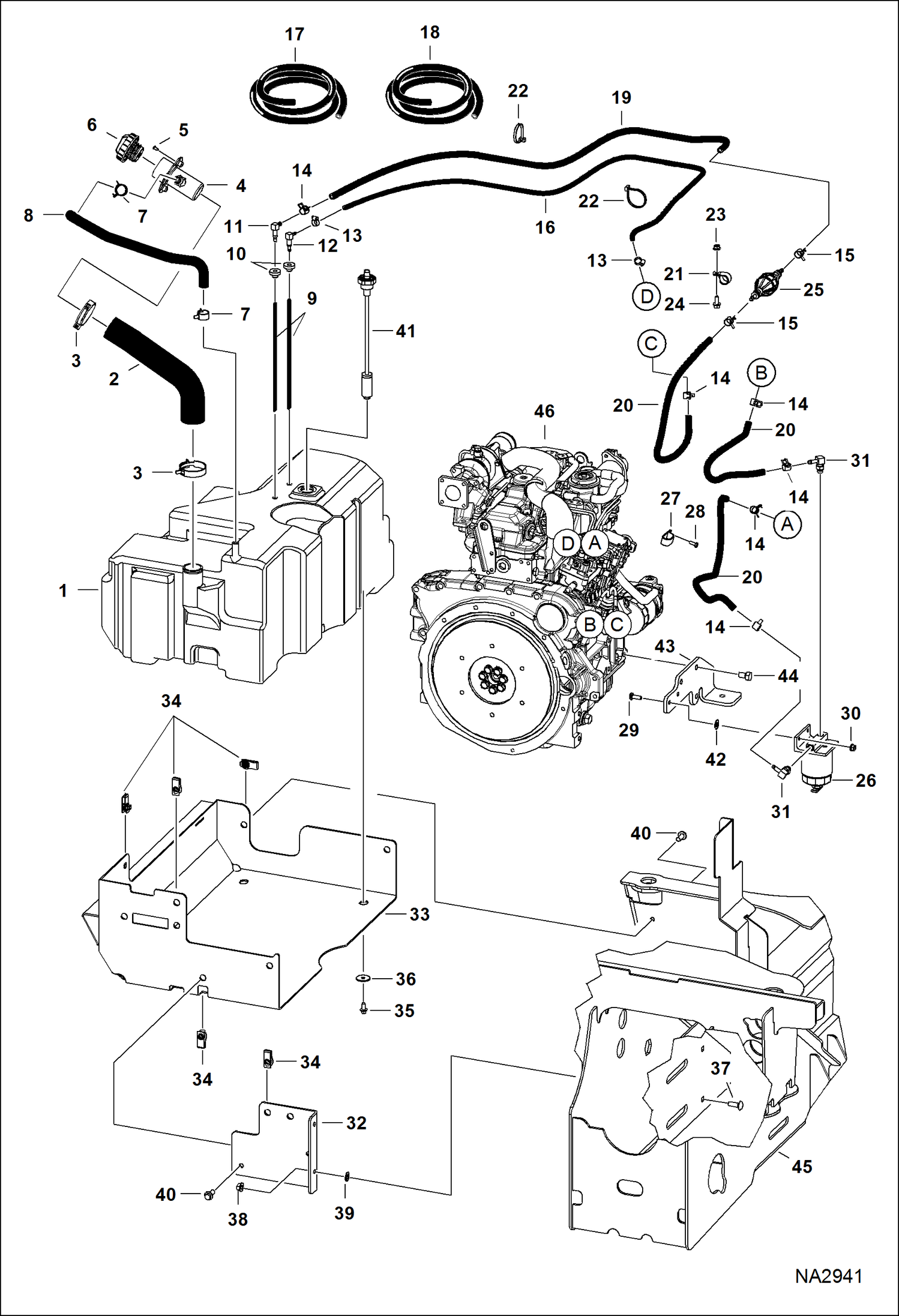

Схема запчастей Bobcat 5600 - FUEL SYSTEM POWER UNIT

Артикул

Название

Примечание

Количество

1

7116527

TANK fuel

2

7201319

HOSE FUEL filler

3

5HM58

CLAMP

4

6701449

FILLER TUBE

5

7106279

BOLT

6

6661114

CAP. DIESEL

7

5HM23

CLAMP

8

7201320

HOSE FUEL

9

6689625

TUBE

10

6553411

BUSHING 0.38'' ID

11

6666302

FITTING, ELBOW

12

6661382

ELBOW 3 barb on outlet end

13

42HS04

CLAMP, HOSE

14

5HM14

CLAMP

15

5HM14

CLAMP Was 5HM15 - B

16

HOSE NLA - 1714,5 mm (67.5'') long - Order Ref. 17

17

6578169

HOSE bulk - sold per foot - 0.19'' ID

18

6577822

HOSE bulk - sold per foot

19

HOSE NLA - 1371,6 mm (54'') long - Order Ref. 18

20

HOSE NLA - 508 mm (20'') long - Order Ref. 18

21

30H37

CLAMP Was 30H45 - B

22

6624289

STRAP, TIE

23

51DM8

NUT

24

29CM820

SCREW

25

6667170

PUMP 193 mm (7.6'') long

26

6667353

FILTER ASSY

26

6667352

FILTER, FUEL W/SEPARATOR 12

26

6658180

PLUG, BLEED

27

31H37

CLIP

28

29CM616

BOLT Was 1CM616 - B

29

28CM825

BOLT

30

43DM8

NUT

31

6715183

ELBOW

32

7154206

BRACKET tank

33

7196685

MOUNT fuel tank

34

6675722

NUT

35

29CM816

SCREW

36

6817775

WASHER

37

28CM1030

BOLT

38

43DM10

NUT

39

6674264

RETAINER NUT

40

29CM1025

BOLT

41

7179837

SENSOR FUEL Was 6680436 - A

42

6675859

RETAINER

43

7164695

MOUNT

44

6719827

BOLT

45

FRAME, MAIN ASSY See Illustration MAIN FRAME/ NA2901

46

ENGINE See Illustration ENGINE & GASKET KITS/ NA2868

Выбрано товаров: 48
