Запчасти Bobcat 5600 GOVERNOR POWER UNIT

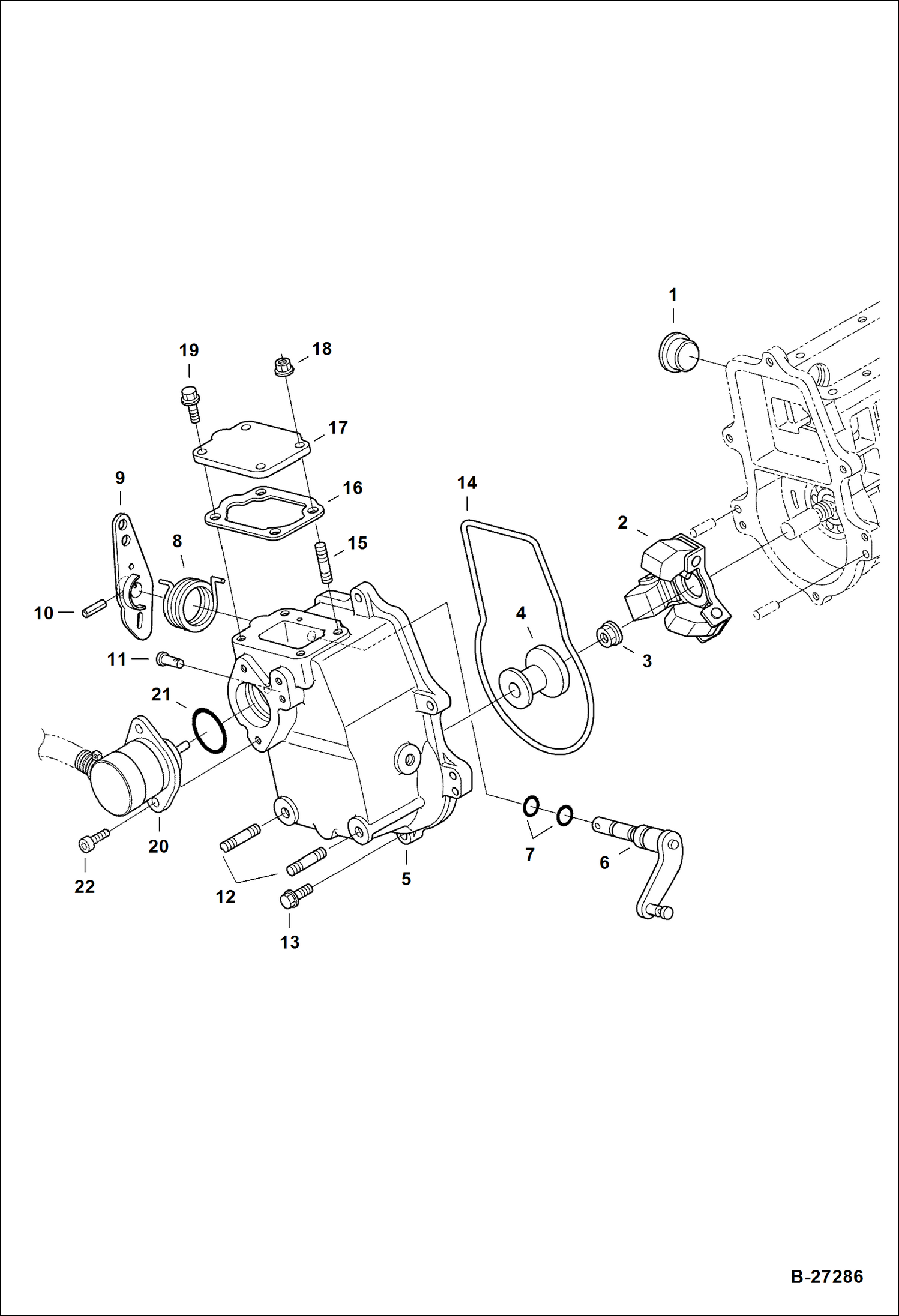

Схема запчастей Bobcat 5600 - GOVERNOR POWER UNIT

Артикул

Название

Примечание

Количество

1

6680757

COVER

2

7000638

WEIGHT, GOVERNOR

3

6680759

NUT

4

7000622

SLEEVE, GOVERNOR

5

7021007

HOUSING, GOVERNOR

6

7000623

LEVER, GOVERNOR

7

6683023

O-RING

8

7000625

SPRING, SPEED CONTROL

9

7020992

LEVER, SPEED CONTROL

10

6680769

PIN

11

6652592

PIN

12

6680828

STUD

13

6680830

BOLT

13

6680544

BOLT

14

6680829

GASKET

15

6683087

STUD

16

6684841

GASKET

17

6685500

COVER

18

6670533

NUT

19

29CM612

BOLT, FLANGED

20

7000769

SOLENOID, SHUTOFF FUEL W/ 240 mm (9.45'') lead

21

6685465

O-RING

22

6680533

BOLT

Выбрано товаров: 23
