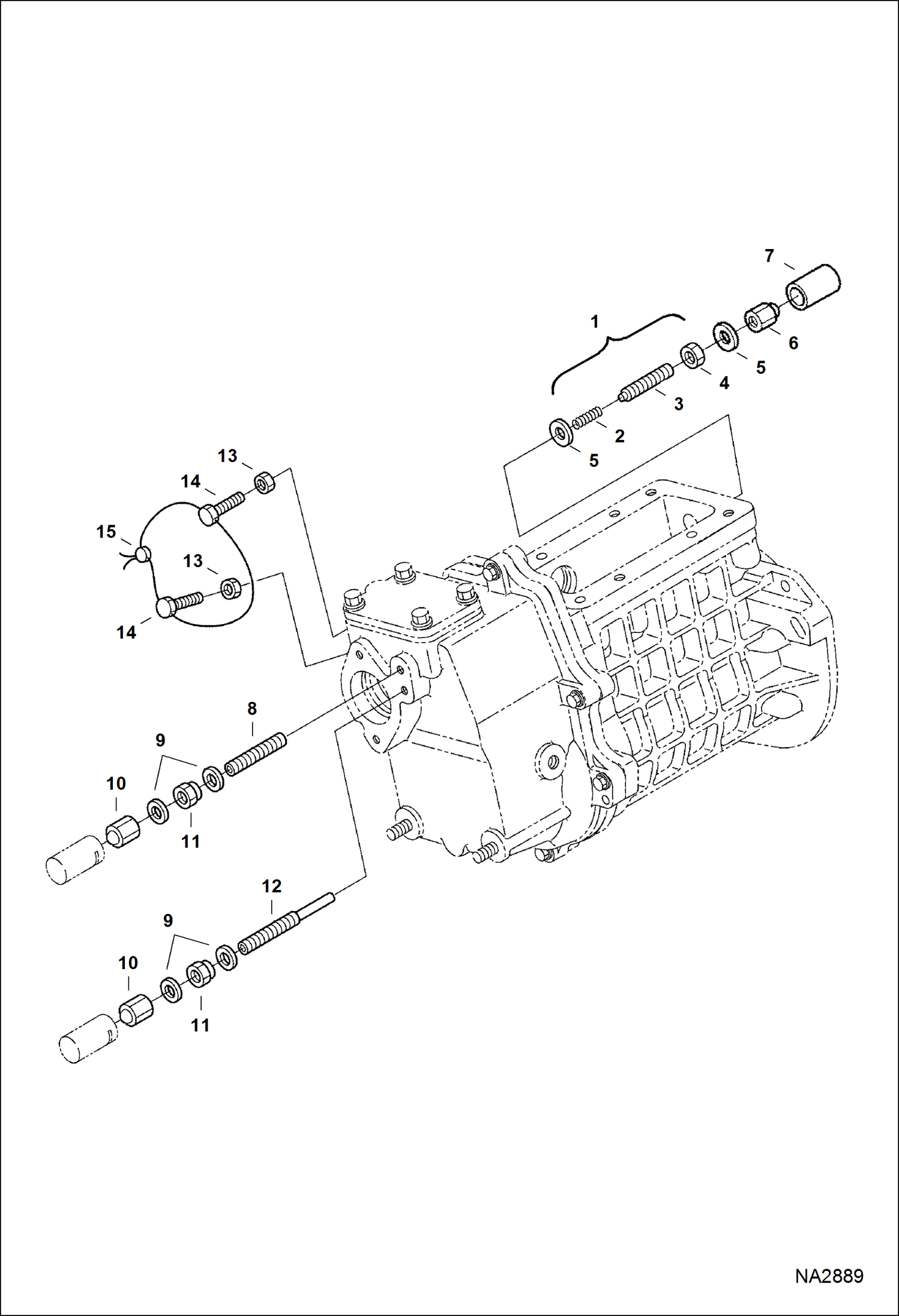

Запчасти Bobcat 5600 INJECTION PUMP (Adjustment Bolts) POWER UNIT

1

7012050

BOLT, ADJUSTMENT ASSY Ref. 2-4

2

SPRING NLA - Order Ref. 1

3

BOLT, ADJUSTING NLA - Order Ref. 1

4

3974425

NUT

5

3974095

MET-GASK

6

3974978

NUT

7

3974979

CAP

8

7000589

BOLT, ADJUSTING

9

3974972

GASKET

10

6655223

NUT

11

6680272

NUT

12

7000620

BOLT, ADJUSTING

13

1DM6

NUT

14

BOLT NLA

15

WIRE, SECURITY NLA
