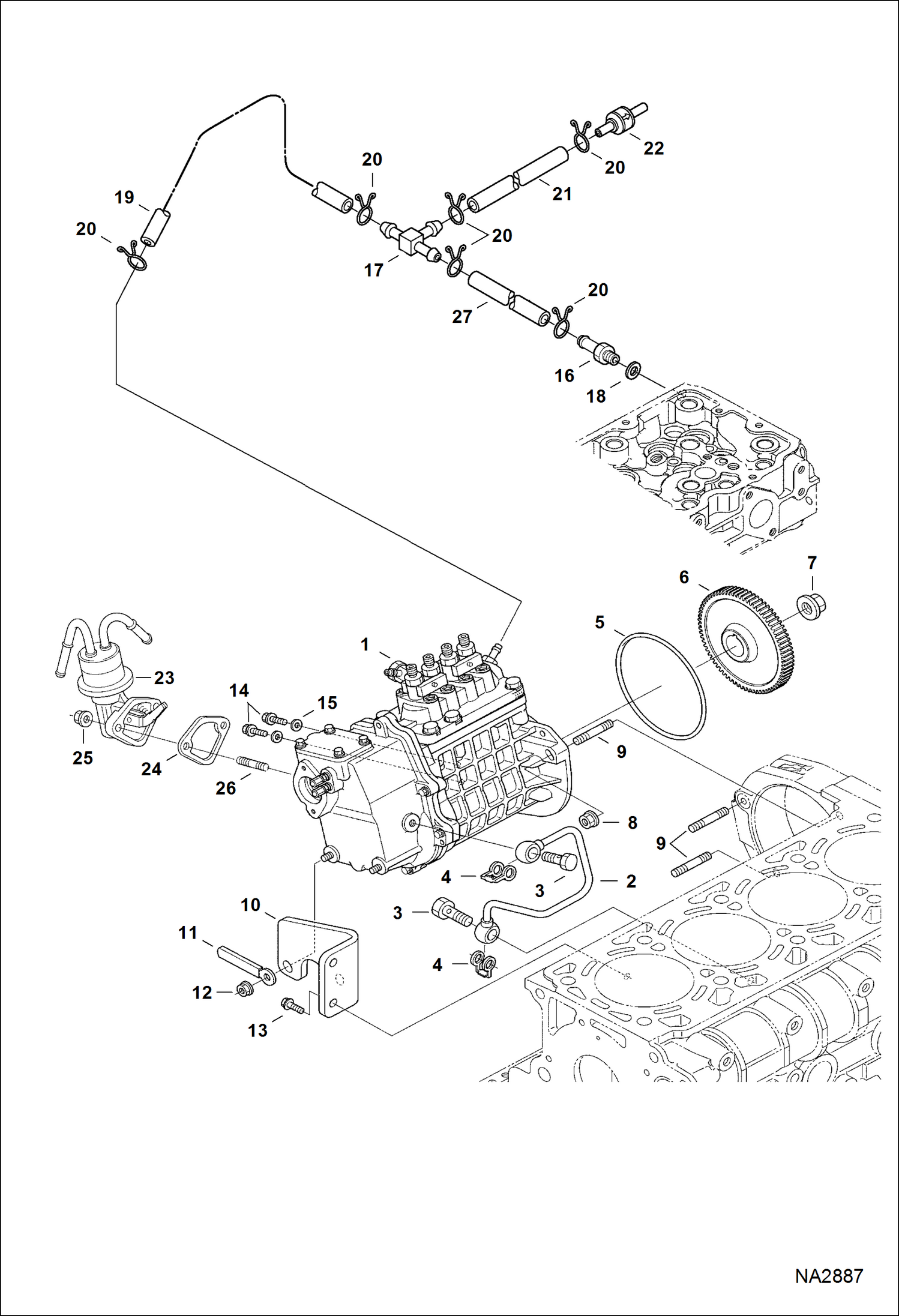

Запчасти Bobcat 5600 FUEL & INJECTION PUMP POWER UNIT

1

7020982

PUMP, FUEL INJ UNIT See BTI418uwm

2

7000711

PIPE, OIL

3

6680900

BOLT

4

6685962

WASHER, SEALING ALUMINUM

5

7000618

GASKET, PUMP INJ

6

7000722

GEAR, PUMP INJ

7

7000613

NUT

8

6969819

NUT, FLANGE

9

7021003

STUD

10

7000723

BRACKET, PUMP INJ

11

6653891

CLAMP

12

6969819

NUT, FLANGE

13

6680662

BOLT

14

6680815

SET SCREW for locking pump when removing for service

14

6680662

BOLT

15

3974095

MET-GASK

16

7021002

SCREW, BLEEDER AIR

17

6680797

TEE

18

3974095

MET-GASK

19

7020984

TUBE FUEL

20

6654718

CLAMP

21

7000604

TUBE, FUEL LINE ASSY

22

6680796

VALVE

23

7000767

PUMP, FUEL

24

7010133

GASKET, PUMP FUEL

25

6670533

NUT Was 6969818 - A

26

6680264

STUD

27

6687670

TUBE, FUEL LINE ASSY
