Запчасти Bobcat 5600 EGR COOLER POWER UNIT

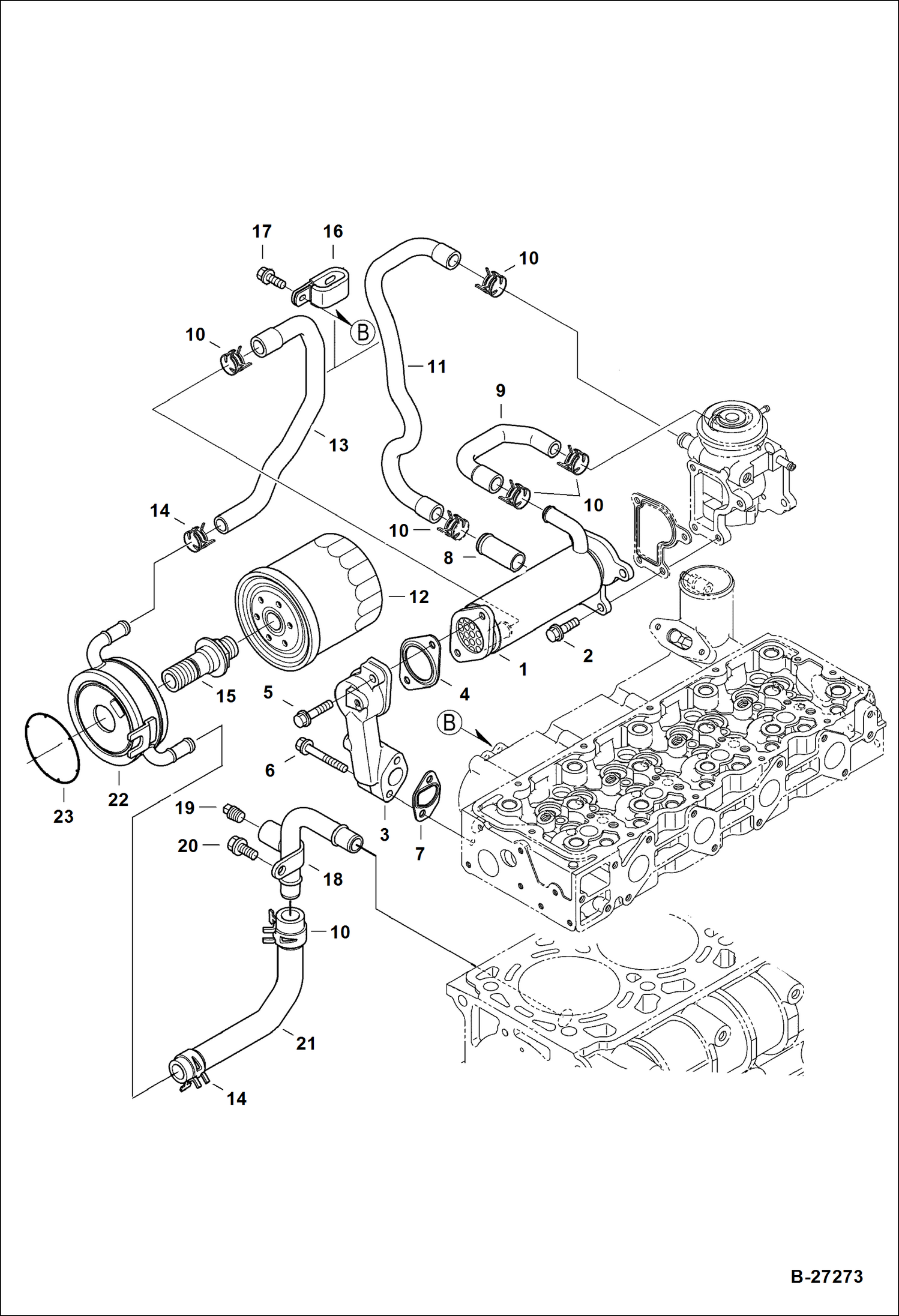

Схема запчастей Bobcat 5600 - EGR COOLER POWER UNIT

Артикул

Название

Примечание

Количество

1

7000736

EXCHANGER, EGR

2

6680801

BOLT

3

7008809

BASE, COOLER EGR

4

7000635

GASKET, EGR COOLER

5

6680755

BOLT

6

7001141

BOLT,FLANGE

7

7000636

GASKET, EGR BASE

8

6680689

ADAPTER

9

7000738

HOSE, HEATER FORMED

10

6698115

CLAMP, HOSE

11

7000739

HOSE, HEATER FORMED

12

6675517

FILTER, OIL ENG 12

13

7000737

HOSE, HEATER FORMED

14

6684889

CLAMP

15

7000717

CONNECTOR

16

7000740

CLAMP, HOSE

17

7001135

BOLT,FLANGE

18

7000744

PIPE, WATER

19

7008393

PLUG

20

7001135

BOLT,FLANGE

21

7000718

PIPE, OIL

22

7000716

EXCHANGER, OIL COOLER W/Ref. 23

23

6698244

ORING

Выбрано товаров: 23
