Запчасти Bobcat 5600 ENGINE ELECTRICAL (A94Y11001 - 13999) ELECTRICAL SYSTEM

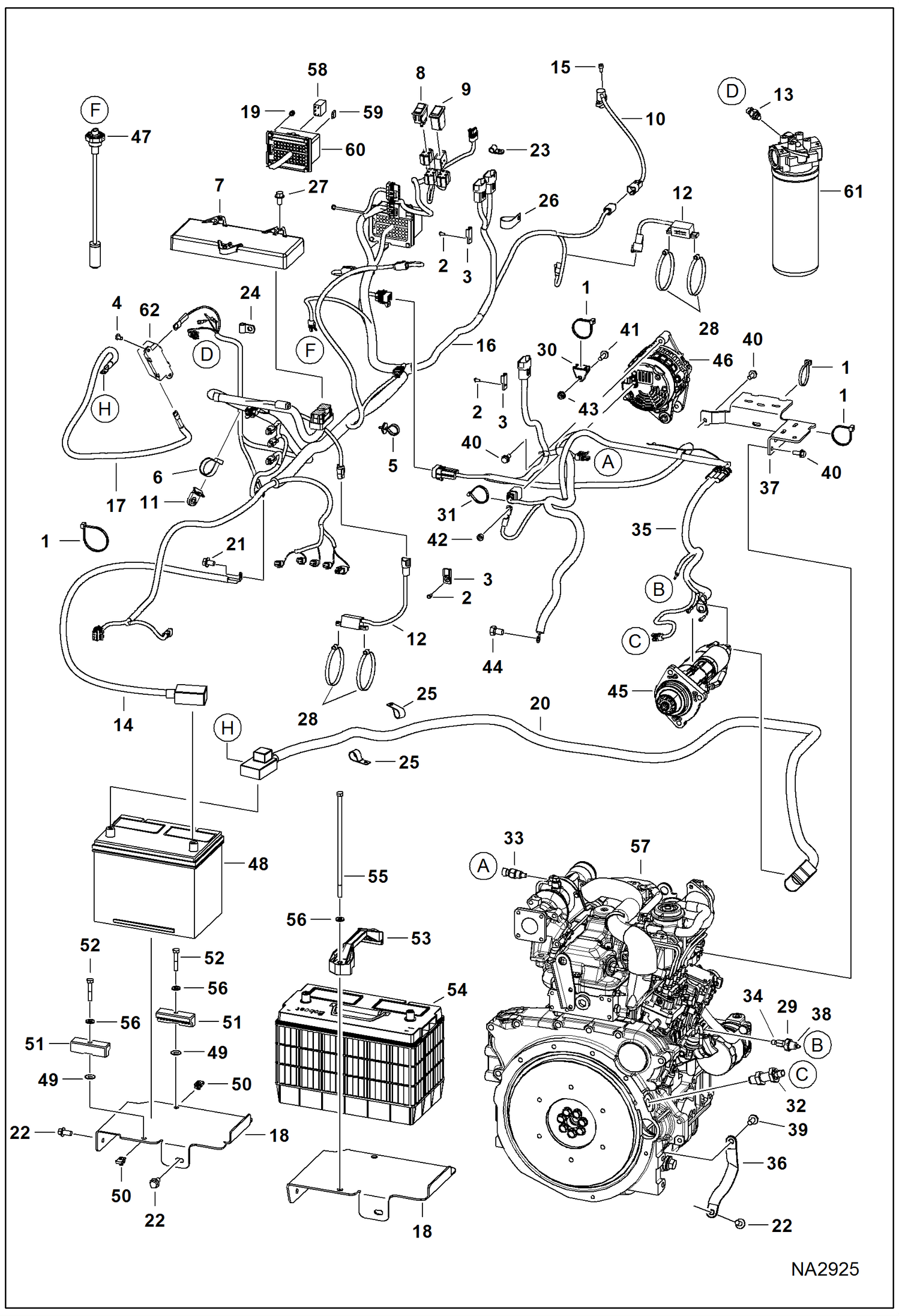

Схема запчастей Bobcat 5600 - ENGINE ELECTRICAL (A94Y11001 - 13999) ELECTRICAL SYSTEM

Артикул

Название

Примечание

Количество

1

6624289

STRAP, TIE

2

6630207

RIVET 5

3

6665000

CLIP

4

6669065

RIVET POP

5

6675734

STRAP, TIE

6

6678669

STRAP

7

6678688

CONTROLLER

8

6679973

SWITCH, ROCKER SELECTOR STEERING

8

7023088

SWITCH, ROCKER SELECTOR STEERING

8

7023315

SWITCH, ROCKER SELECTOR STEERING

9

6679974

LIGHT WHEEL NEUTRAL

10

6684443

SENSOR

11

6684641

MOUNT

12

6689591

SENSOR

13

6727869

SENDER,HYD TEMP

14

6731665

CABLE

15

7102184

SCREW

16

7116858

HARNESS

16

7212934

HARNESS, MFR

17

7125233

HARNESS

18

7201277

BRACKET, BATTERY Was 7154877 - A

19

7155533

NUT

20

7170676

CABLE, POSITIVE

21

29CM1016

BOLT

22

29CM1020

BOLT

23

30H22

CLIP

24

30H23

CLAMP

25

30HJ512

CLAMP

26

30HJ616

CLIP

27

35C612

BOLT

28

42HS48

CLAMP

29

6631010

SWITCH, PRESS OIL ENG

30

6678818

MOUNT

31

6682345

STRAP, TIE 8

32

6693921

SENSOR, RPM

33

6718414

SENDER, TEMP ENG

34

7102451

FITTING

35

7154997

HARNESS, ENG

36

7169952

CABLE, NEGATIVE

37

7209603

BRACKET, HARNESS Was 7170781 - A

38

12D8

NUT

39

5CM1020

SCREW W/thread lock applied - Was 7120308 - D

40

29CM820

SCREW

41

29CM825

BOLT

42

4DM8

NUT

43

51DM8

NUT

44

6CM1220

BOLT

45

STARTER See Illustration STARTER/ B16488R

46

ALTERNATOR See Illustration ALTERNATOR/ C3529

47

7179837

SENSOR FUEL Was 6680436 - A

48

6674687

BATTERY, DRY 600 AMP

49

6675859

RETAINER

50

7021345

NUT, CLIP

51

7120672

TIE DOWN

52

17C528

BOLT

53

6569203

CLAMP

54

6667986

BATTERY 950 amp

55

7197731

BOLT

56

25E15

WASHER

57

ENGINE See Illustration ENGINE & GASKET KITS/ NA2868

58

6691156

RELAY

59

7131022

FUSE, 30A MINI 5

60

6692936

COVER

61

6679592

FILTER ASSY See Illustration HYDROSTATIC OIL FILTER/ NA1844

Выбрано товаров: 64
