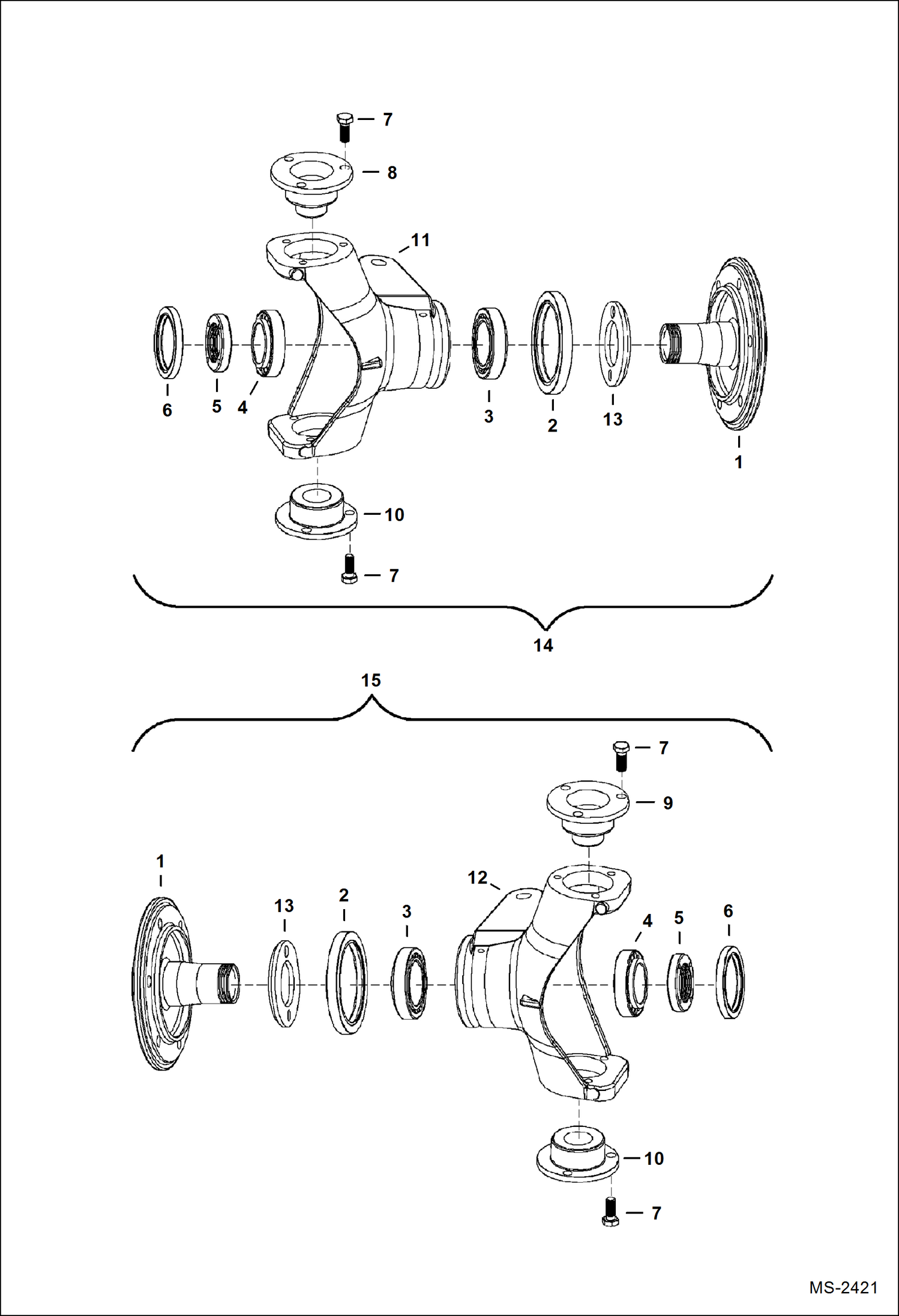

Запчасти Bobcat 5600 AXLE ASSEMBLY (Hub Assembly) DRIVE TRAIN

1

HUB NLA - Order Ref. 14 or 15 - Was 6696228 - A

2

6683293

SEAL

3

6688526

BEARING universal - Was 6683294 - A

4

6688527

BEARING Was 6683295 - A

5

NUT, RING NLA - Order Ref. 14 or Ref. 15 - Was 6683297 - C

6

6683296

SEAL

7

6683298

SCREW retaining

8

PIVOT NLA - flange - Order Ref. 14 - Was 6683301 - A

9

PIVOT NLA - flange - Order Ref. 15 - Was 6683299 - A

10

6693350

FLANGE

11

6683300

SEMI-JOINT non-drive motor side

12

HOUSING, HUB NLA - drive motor side - Order Ref. 15 - drive motor side) - Was 6683302 - A

13

SPACER Was 6686229 - A

14

6693334

HUB ASSY non-drive motor side

15

6693335

HUB ASSY drive motor side
