Запчасти Bobcat 5600 HYDROSTATIC CIRCUITRY (Pump) HYDROSTATIC SYSTEM

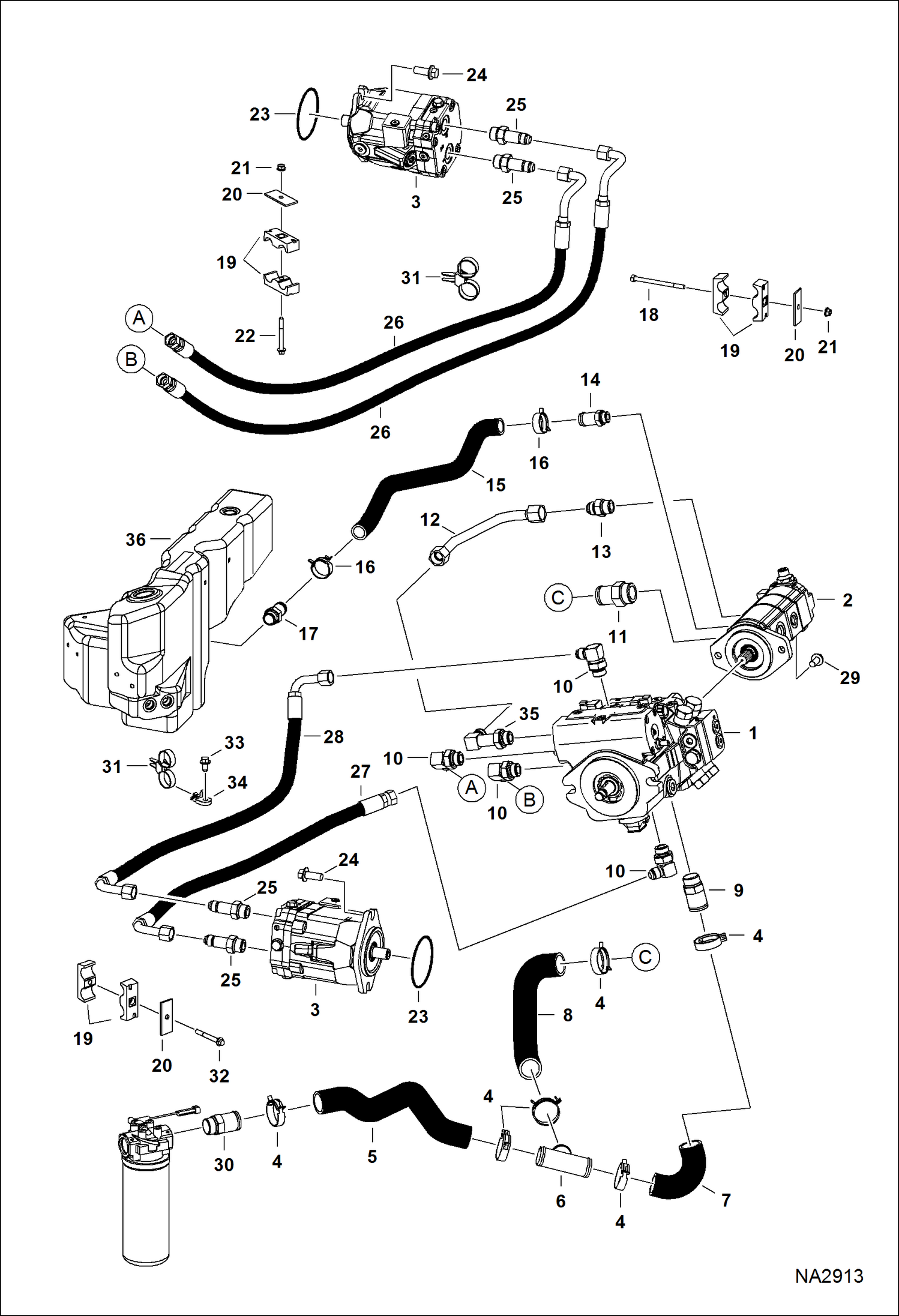

Схема запчастей Bobcat 5600 - HYDROSTATIC CIRCUITRY (Pump) HYDROSTATIC SYSTEM

Артикул

Название

Примечание

Количество

1

6688865

PUMP, HYD See Illustration HYDROSTATIC PUMP/ MS1477 - hydrostatic

2

7001908

PUMP, GEAR See Illustration TRIPLE GEAR PUMP/ MS2307 - triple gear

3

6689772

MOTOR See Illustration DRIVE MOTOR/ MS2318 - drive

4

5HM47

CLAMP

5

7164384

HOSE, HYD FORMED

6

7116872

TEE

7

7125042

HOSE

8

7125043

HOSE

9

7117728

FITTING beaded

9

79K16

O RING 10

10

17KB1012

FITTING, HYD ELBOW

10

79K12

O RING 10

11

7120936

FITTING beaded

11

79K20

O RING 10 Was 79K12 - B,D

12

7192711

TUBELINE, HYD

13

15KB1212

FITTING, HYD CONNECTOR

13

79K12

O RING 10

14

6715715

FITTING beaded

14

79K10

O RING 10

15

7192712

HOSE, HYD FORMED

16

5HM35

HOSECLAMP

17

6715715

FITTING beaded

17

79K12

O RING 10

18

1CM8110

HEX CAP S

19

6679025

CLAMP 2

20

6653493

COVER

21

51DM8

NUT

22

29CM870

BOLT

23

25K30400

O RING 10

24

29CM1435

SCREW

25

16KB1012

FITTING, HYD CONNECTOR

25

79K12

O RING 10

26

7132083

HOSE ASSY

27

7114675

HOSE

28

7132064

HOSE ASSY

29

29CM1225

BOLT

30

7117728

FITTING beaded

30

79K16

O RING 10

31

6678668

STRAP, DUAL TIE

32

29CM880

BOLT

33

26GM10020

BOLT

34

6679034

MOUNT

35

6716443

ELBOW

36

TANK, HYD See Illustration HYDRAULIC CIRCUITRY/ NA2911

Выбрано товаров: 44
